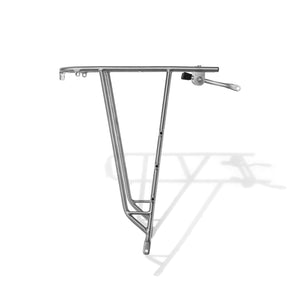

Titanium Pannier Rack

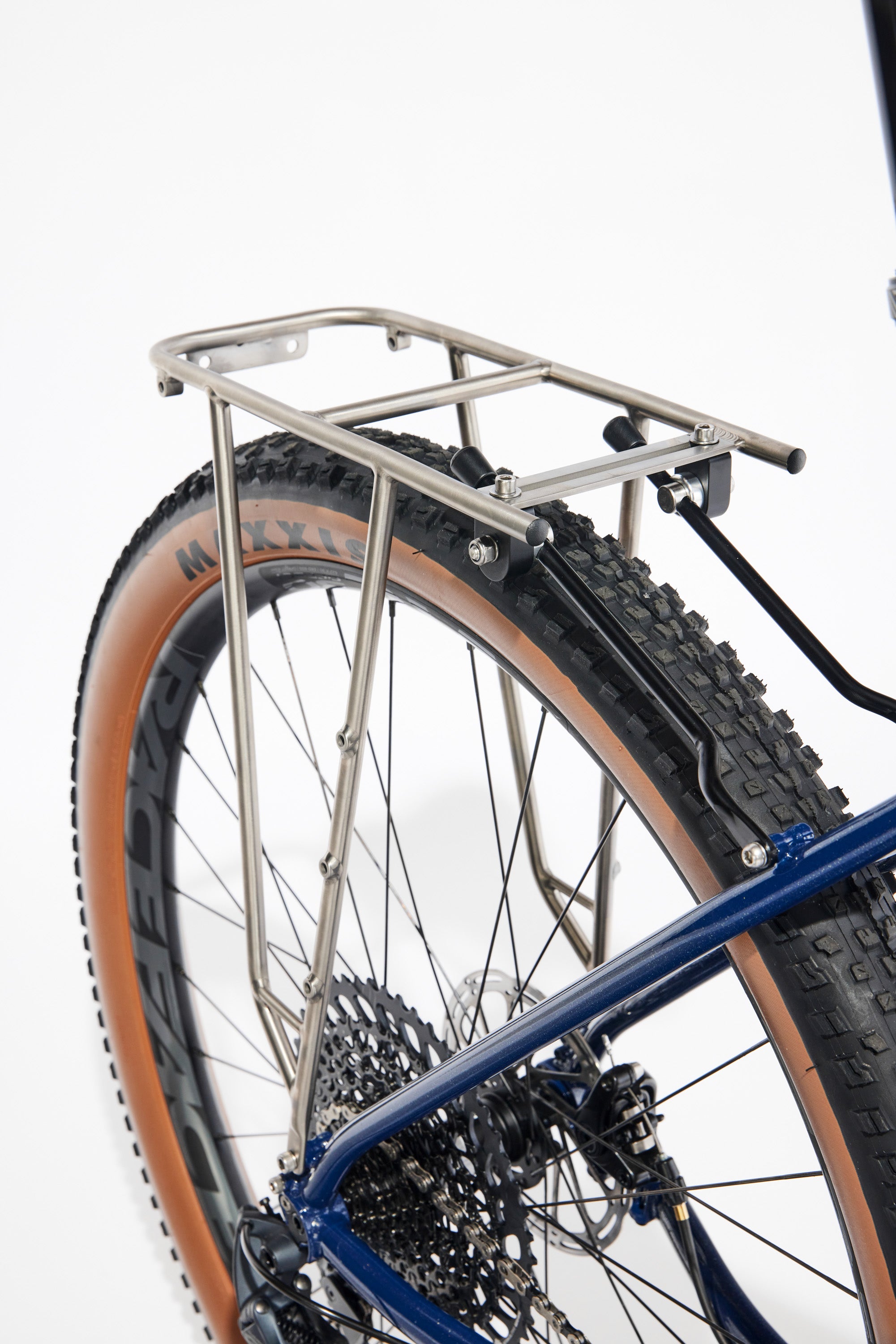

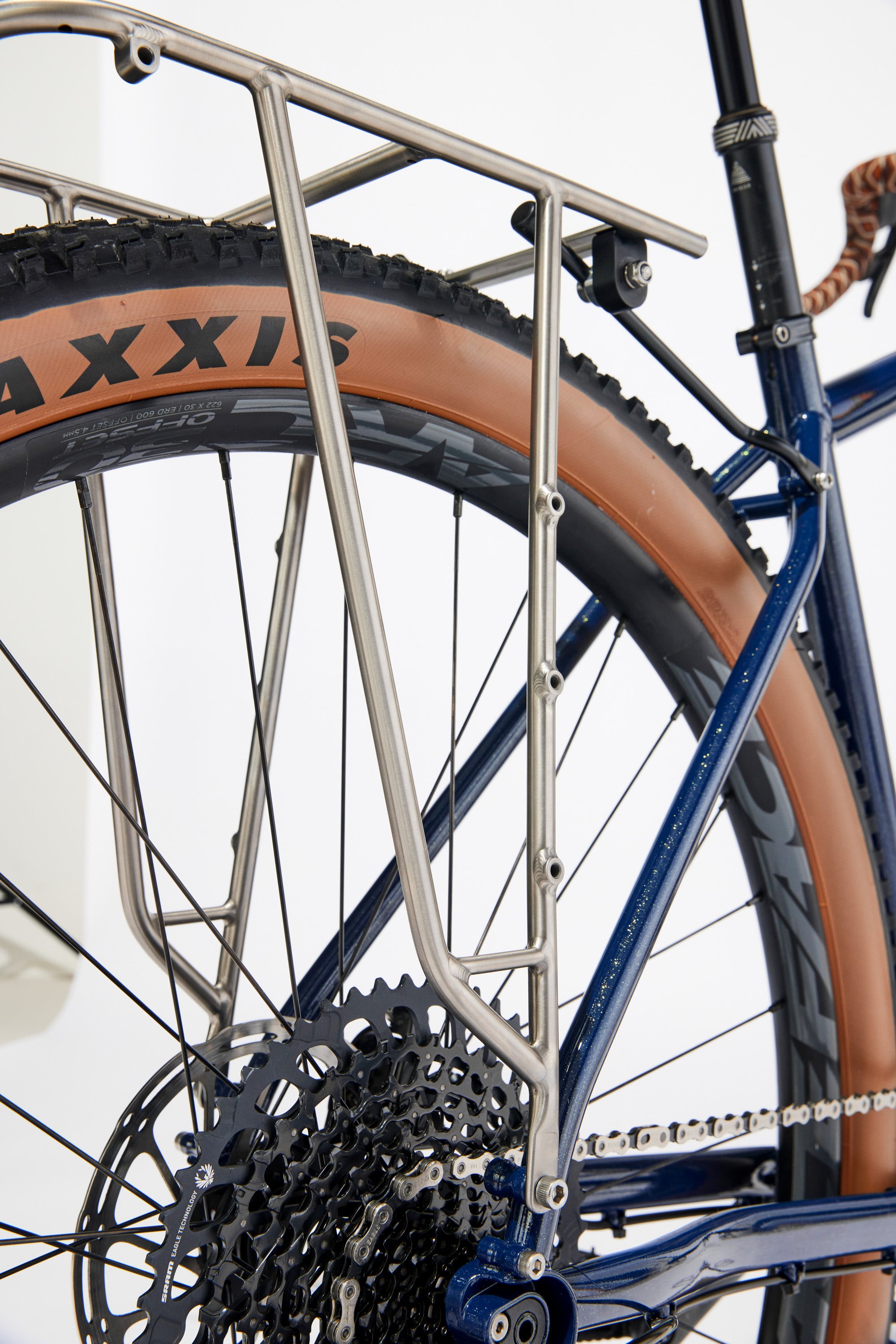

Our Titanium Pannier Rack is a versatile, lightweight, and tough rack designed to carry cargo in various ways. It features a generous platform size, two side support legs to stabilize a variety of pannier bags, and triple mounting points for water bottles or cargo cages. The Titanium model significantly reduces weight and provides a worry-free finish.

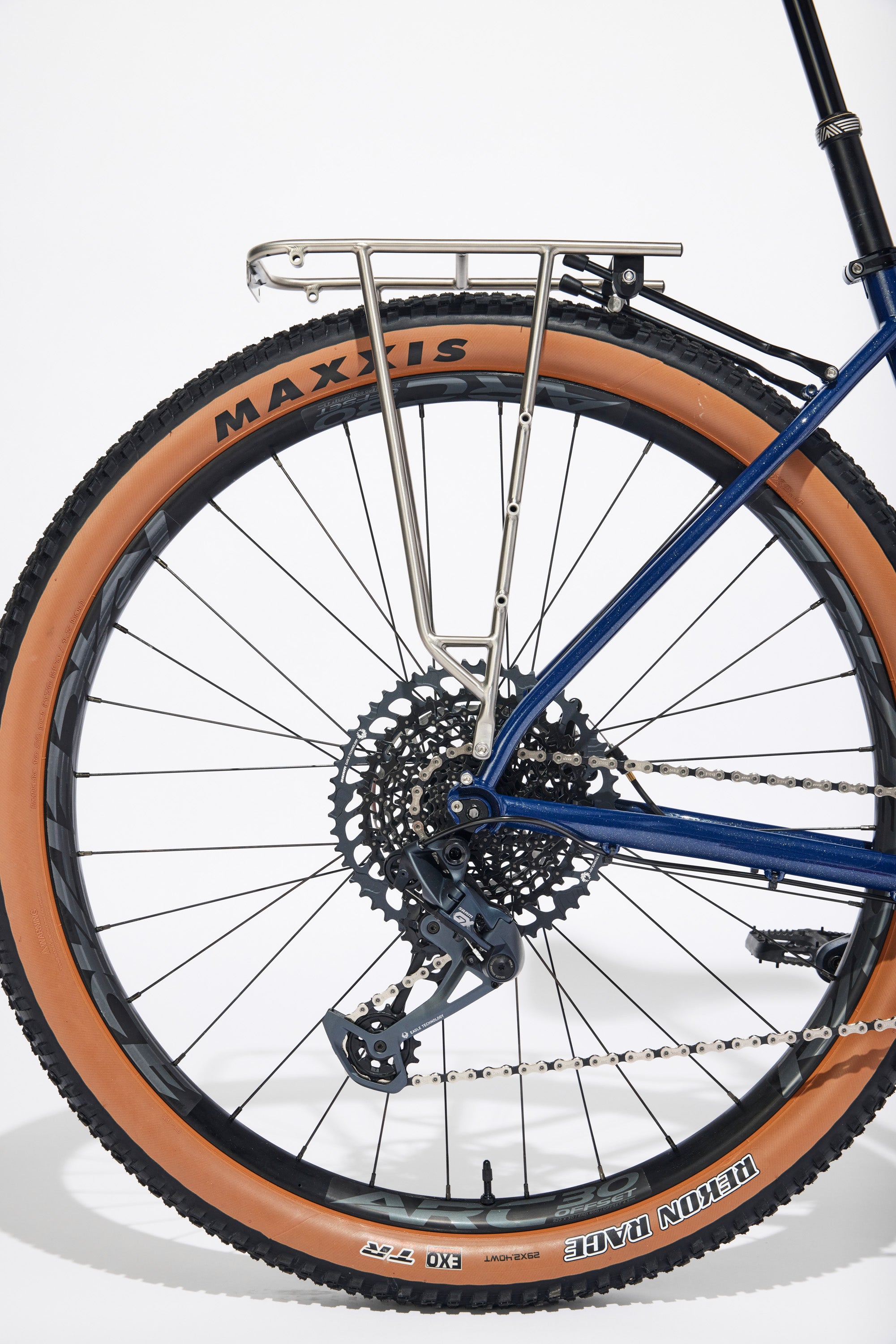

The Pannier Rack comes in 355mm and 380mm platform heights (center of lower eyelet to center of platform) tall, with a 120mm-wide by 310mm-long platform, and allows for generous tire clearance. To determine which rack height you need, measure from your lower rack mount to the top of your tire, and add 25-50mm.

We've completely updated the overall design, but the primary and most visible changes for the new racks include:

• Completely redesigned mounting hardware to reduce the likelihood of loosening over time. (You will need to still check hardware tightness regularly, as with any rack.)

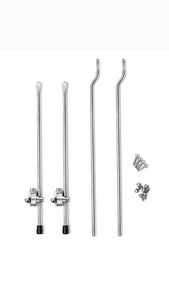

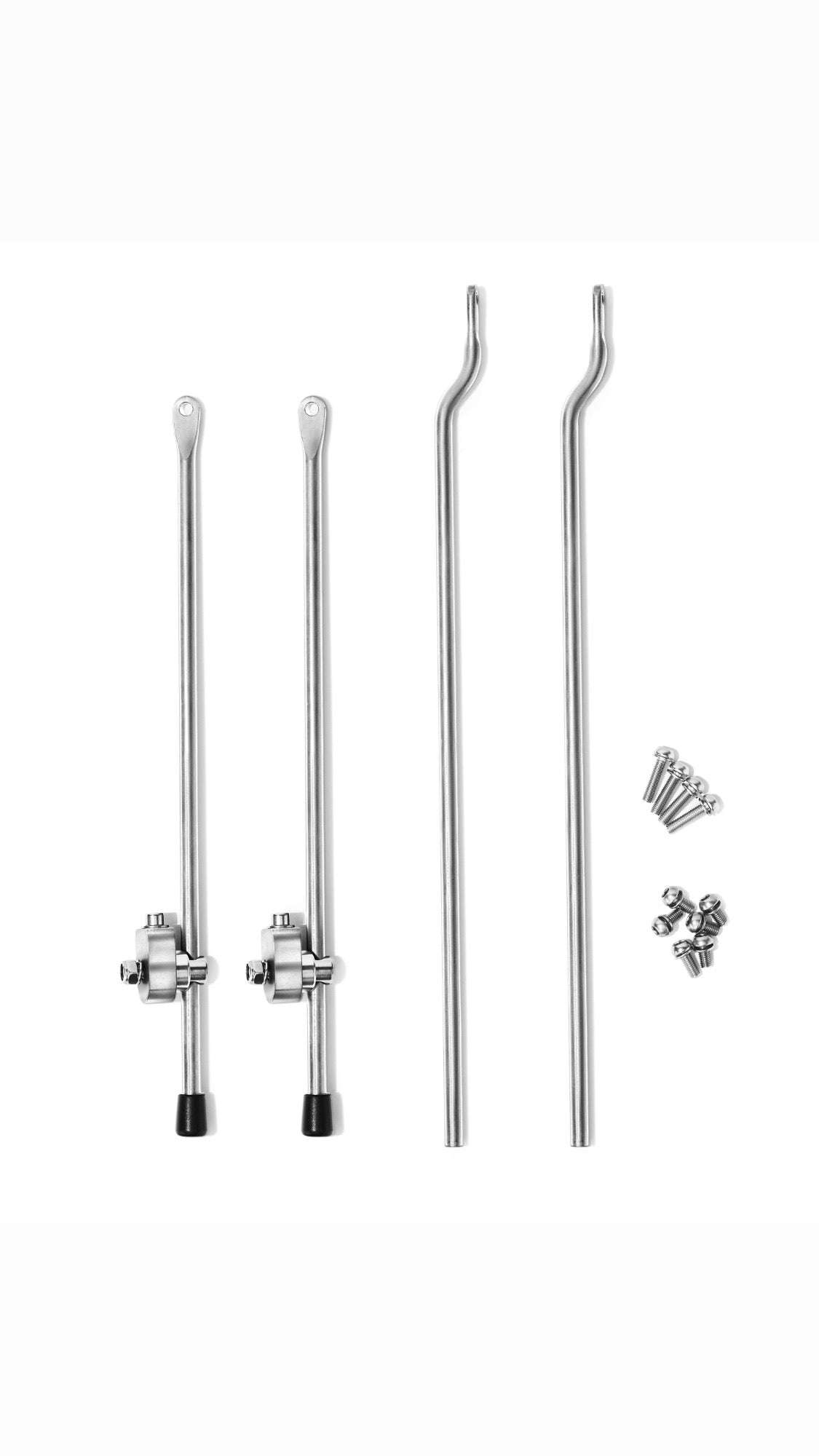

• Two sets of extra-long 350mm mounting struts, one straight and one offset, to more easily fit a wider range of bikes.
• A Dynamo wire routing port near the light mounts, for easy wiring of a dynamo headlight or taillight.
• The previous Pannier Rack had a closed-loop platform design. The new version has an open front like the T rack, which allows for easier installation on taller bikes, reduces the weight slightly, and gives an easy dynamo wire routing option.

Specs

• Platform heights: 355mm and 380mm (center of lower eyelet to center of platform)
• Weight: 258 grams without hardware or 437 grams including all mounting hardware, bolts, and uncut 350mm struts
• 10mm diameter tubing and will work with a variety of modern panniers with adjustable hardware.
• Traditional-style panniers with an elastic lower hook attachment
• Total load limit: 45 lbs, including 5 lbs for each set of triple bosses
• Installation and warranty

Requirements

• The load on the rack platform must be centered over the rack, not overhanging/cantilevered off the end of the platform.

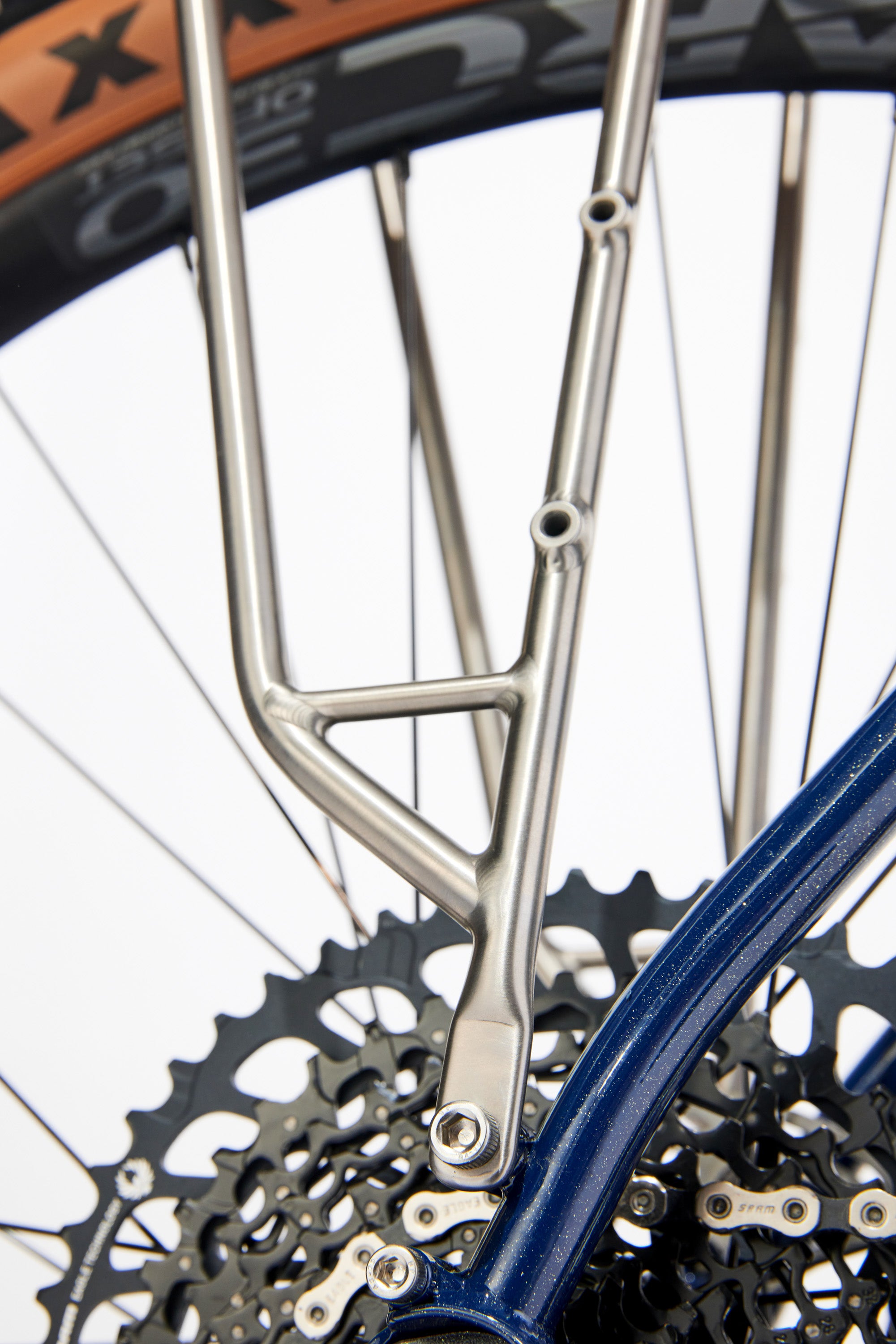

• You’ll need threaded load-bearing mounting points at the dropouts and seatstays or fork crown to properly mount the T rack on your bike.
• If you don't have upper rack bosses, seat clamps with integrated rack mounts are available.
• If your steel fork doesn't have upper bosses, we sell a rack adaptor that attaches to the center hole of your fork crown (depending on the style of your fork).
