Stargazer Titanium Frameset
Frames are in stock and shipping now. Production frames have dark decals and a dark blue fork.
Leave a note in your order if you'd like us to build you a complete bike and we will reach out to finalize your specs.

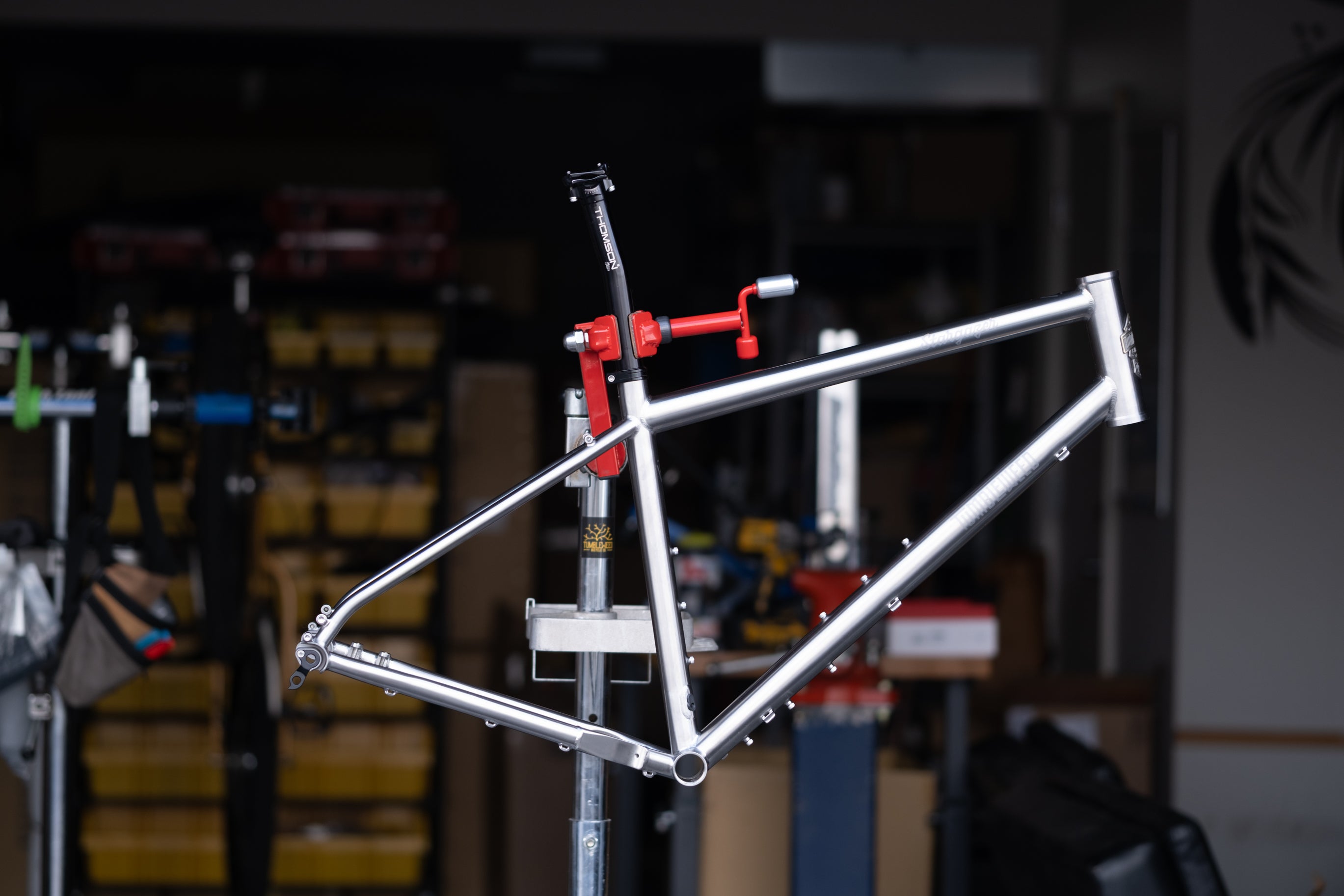

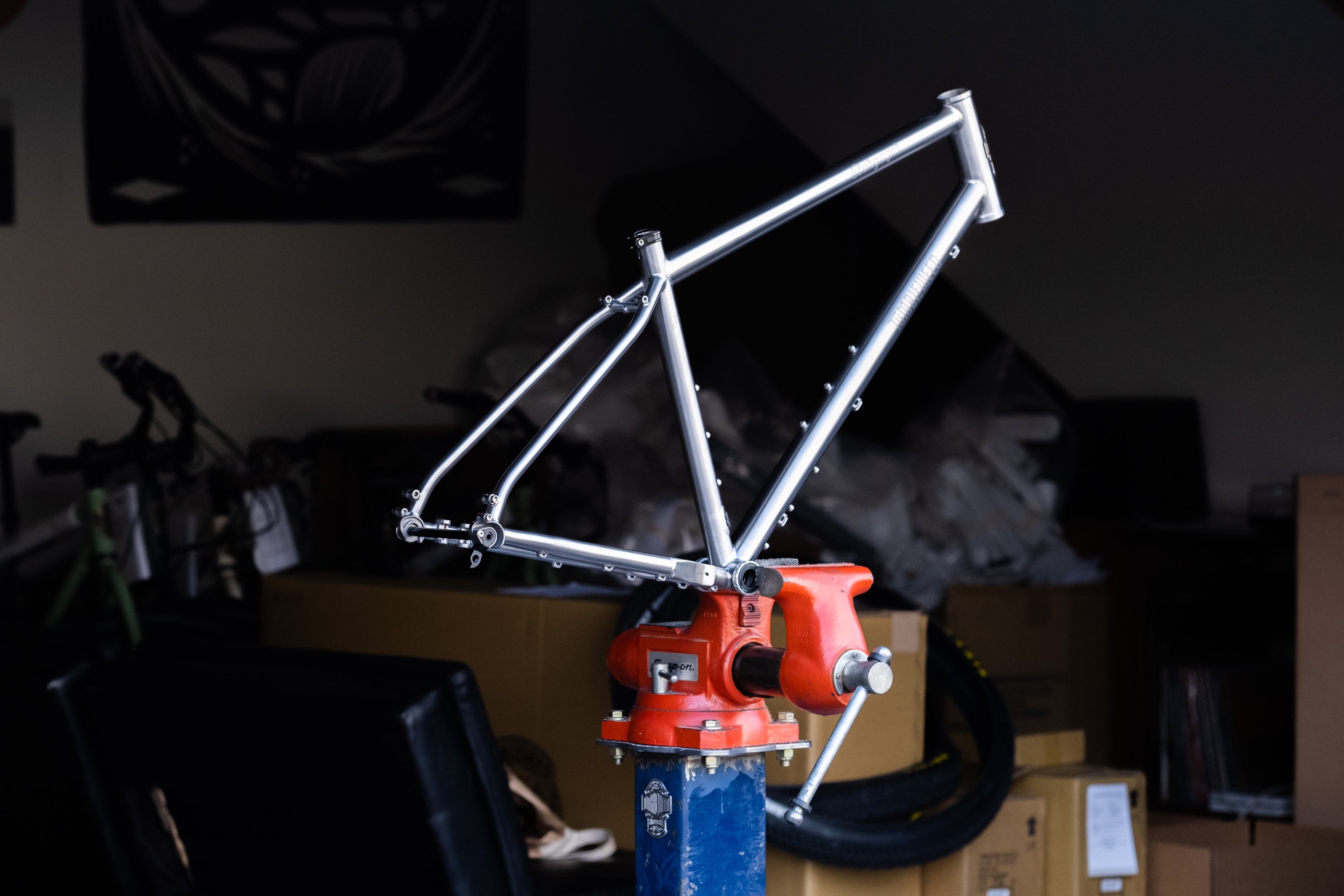

Introducing our new Stargazer drop bar mountain touring frame in titanium with a steel fork. It's a super high end frame with multi-butted, cold formed oversized custom 3Al-2.5V tubing that stands up to loaded off-road riding without turning into a noodle. We've been riding the sample frames for the last year and it's the bike I reach for more than any other. This is a super limited production frameset, we will most likely only offer them once a year (We are now on our second production run of frames). If you appreciate the lighter weight, corrosion resistance and dreamy ride quality that titanium offers then the titanium version of the Stargazer is a great option. We will sell these as framesets as well as complete builds, if you are interested in a complete bike please let us know in the notes section at checkout.
Geometry is the same as the steel frame, with 1cm longer in the top tube on all sizes.
- 3Al-2.5V multi butted titanium tubing, ovalized top tube and down tube
- Frameset includes titanium frame with steel fork, seat clamp, front and rear thru axles
- Ti frame saves approximately 2lbs over the steel frame (4.25lb vs 6.25lb for an Extra Medium or 57cm frame)
- Brushed bare titanium finish with dark midnight logos and a matching dark midnight steel fork (same fork that comes with the steel frameset)

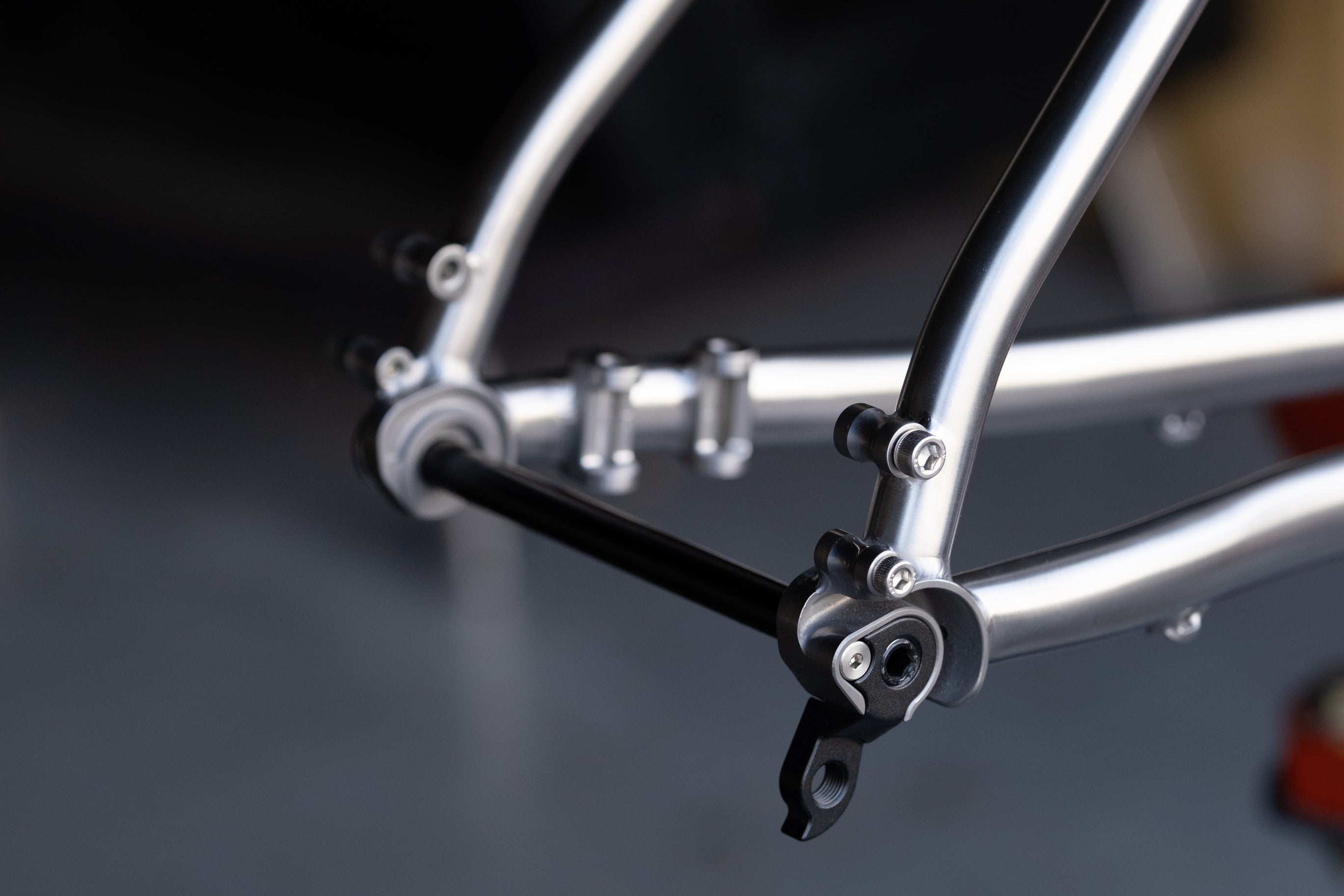

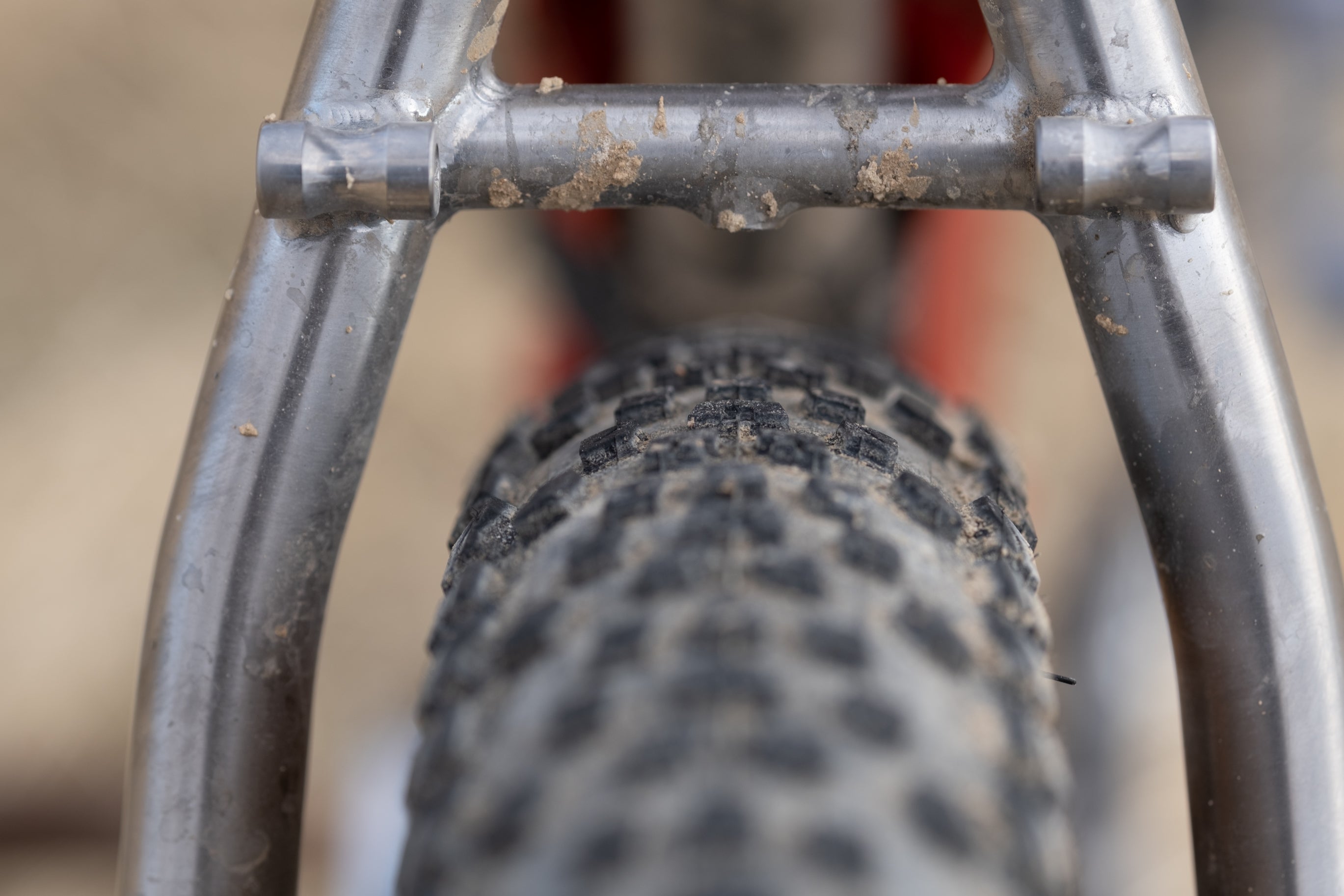

- 29x2.6” or 27.5x3.0” tire clearance with machined titanium chainstay yoke

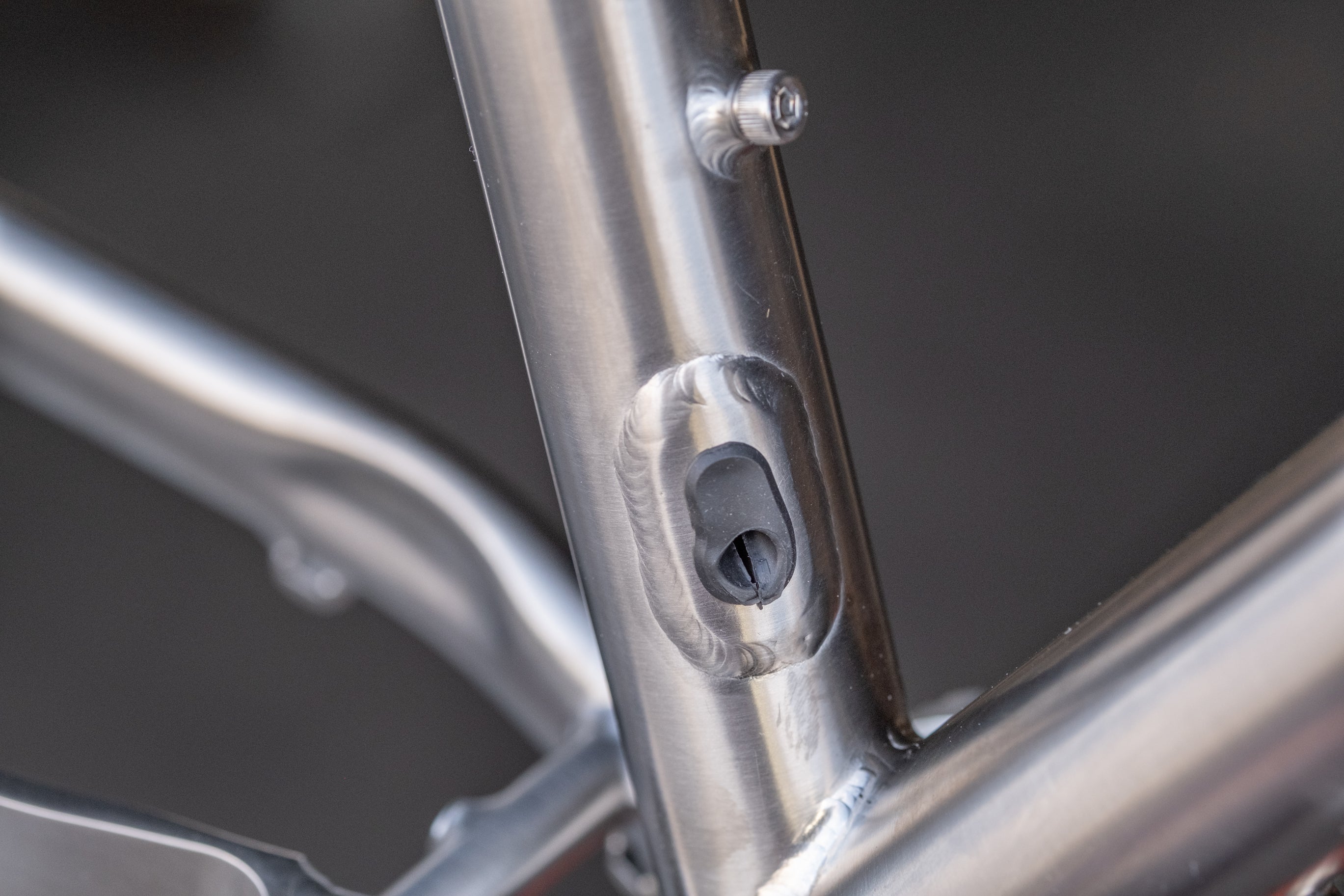

- 31.6mm seatpost (compatible with internally routed dropper posts)
- 44mm headtube for ZS44 upper headset cups and EC44 lower cups, 30mm crown race with stock fork

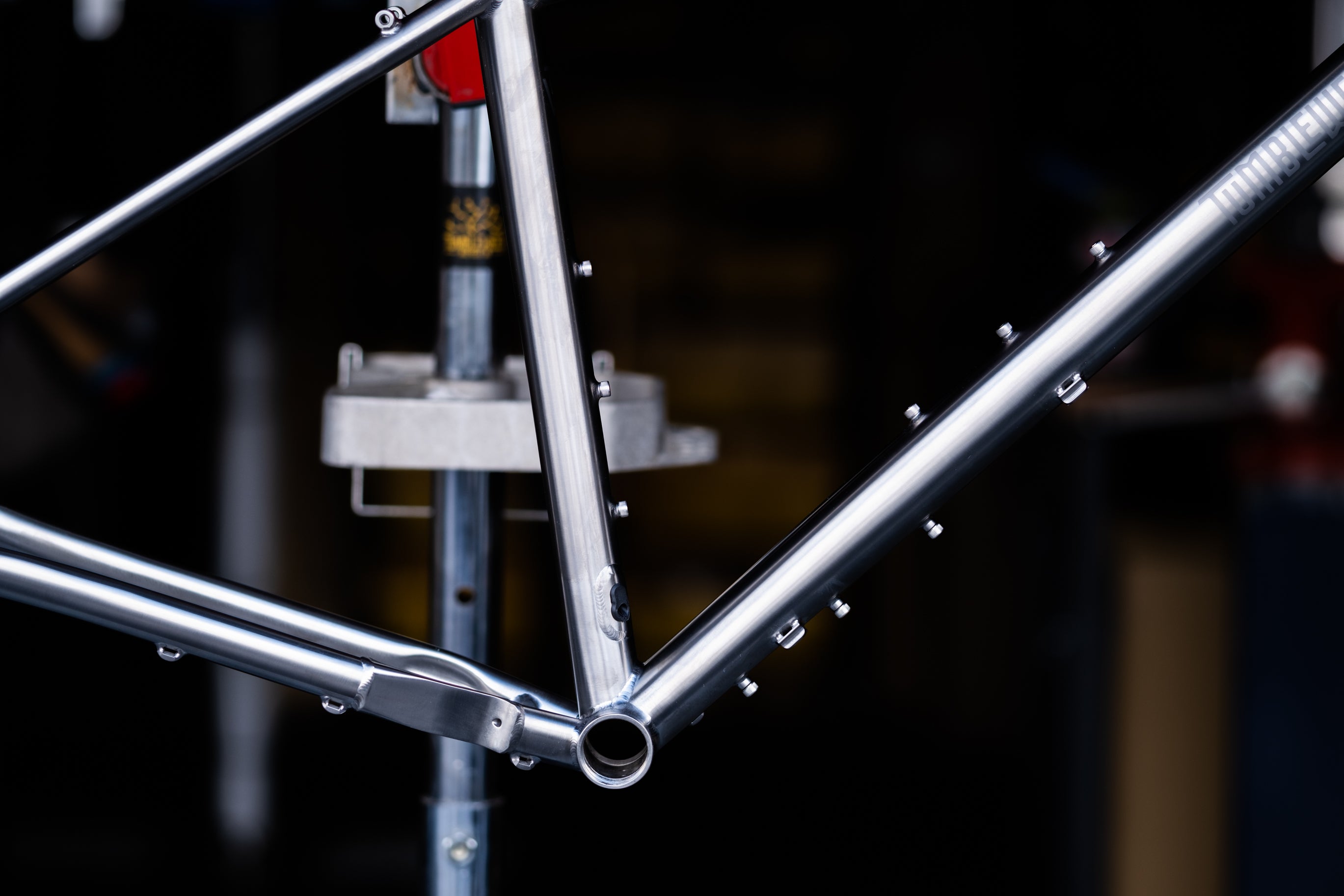

- Threaded bosses for full size racks and fenders front and rear, three sets of bottle bosses on main triangle, triple bottle bosses on each fork leg
- 148x12mm frame spacing and 110x15mm fork spacing
- 160/180mm flat mount disc brakes front and rear
- 1x drivetrain specific frame, 38t max chainring with 52mm chainline
Reviews
BIKEPACKING.COM: 2022 BIKEPACKING GEAR OF THE YEAR
BIKEPACKING.COM: TUMBLEWEED STARGAZER TI REVIEW
| Frame Material | 3Al-2.5V multi butted titanium tubing, ovalized top tube and down tube |
| Rack/Fender Compatibility | Rack and fender compatible, three bottle mounts on frame triangle |
| Fork | Unicrown Chromoly steel with 110x15mm thru axle (thru axle included), upper and lower rack mounts, fender mounts, triple bottle cage mounts on fork legs, internal dynamo wire routing |
| Max Tire Clearance | 29x2.6"/27.5x3.0" |
| Headtube | 44mm I.D. |
| Headset | ZS44 upper, EC44 lower |
| Bottom Bracket | 73mm BSA threaded |
| Rear Axle (Included) | 148x12mm Boost |
| Seatpost Diameter | 31.6mm |
| Dropper Seatpost Compatibility | Internally routed for dropper post |
| Seat Clamp (included) | 35mm |
| Drivetrain Compatibility | 1x drivetrain specific, not designed to accomodate front derailleur |
| Brake Compatibility | 160/180mm flat mount front and rear |
| Fork Axle to Crown | 440mm |
| Fork Steer Tube Length | 350mm |
| Chainring Clearance | 1X Boost, 38 tooth max |

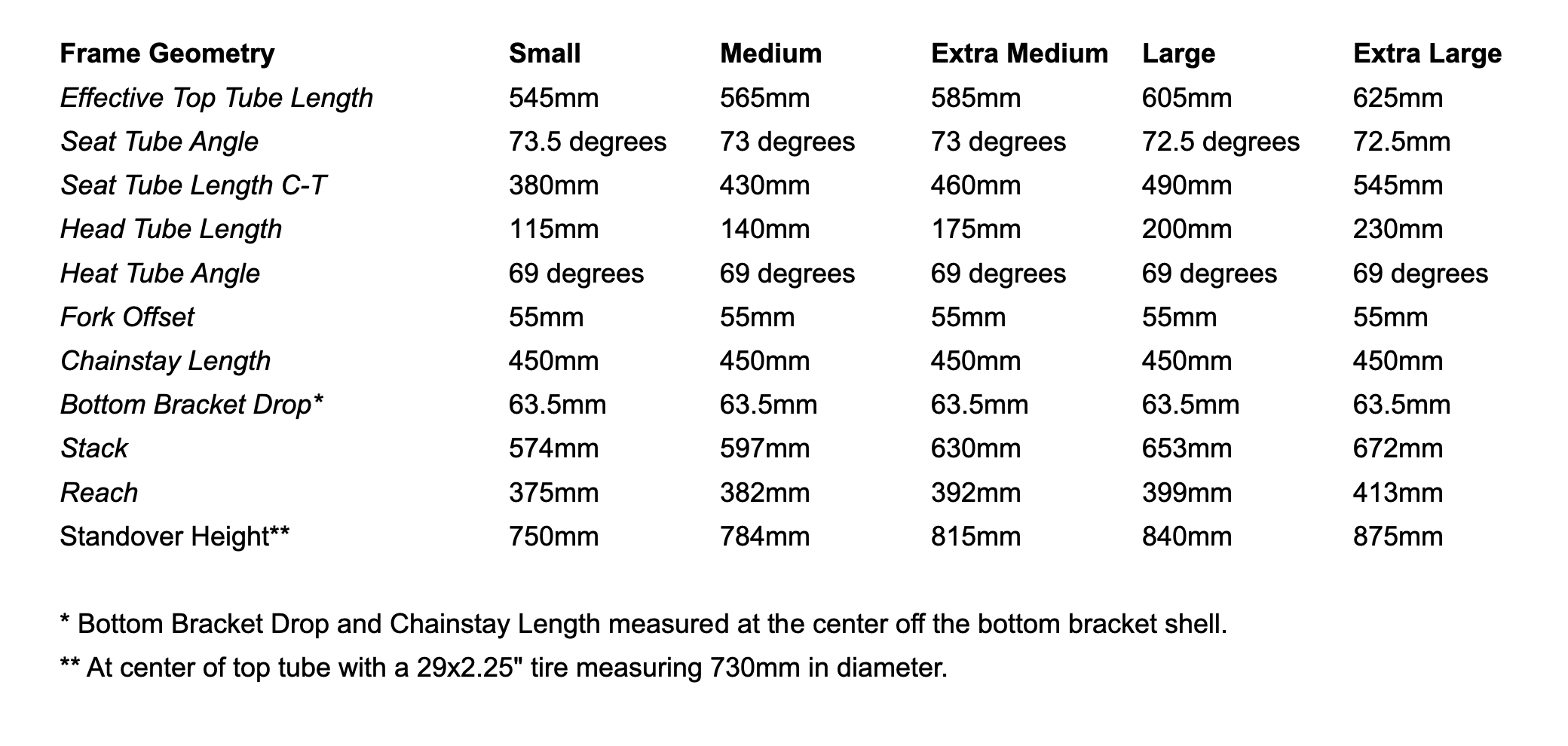

| Frame Geometry | Small | Medium | Extra Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Effective Top Tube Length | 545mm | 565mm | 585mm | 605mm | 625mm |
| Seat Tube Angle | 73.5 degrees | 73 degrees | 73 degrees | 72.5 degrees | 72.5 degrees |
| Seat Tube Length C-T | 380mm | 430mm | 460mm | 490mm | 545mm |
| Head Tube Length | 115mm | 140mm | 175mm | 200mm | 230mm |
| Head Tube Angle | 69 degrees | 69 degrees | 69 degrees | 69 degrees | 69 degrees |
| Fork Offset | 55mm | 55mm | 55mm | 55mm | 55mm |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm | 450mm |
| Bottom Bracket Drop | 63.5mm | 63.5mm | 63.5mm | 63.5mm | 63.5mm |
| Stack | 574mm | 597mm | 630mm | 653mm | 680mm |
| Reach | 375mm | 382mm | 392mm | 399mm | 413mm |
| Standover Height* | 750mm | 784mm | 815mm | 840mm | 875mm |

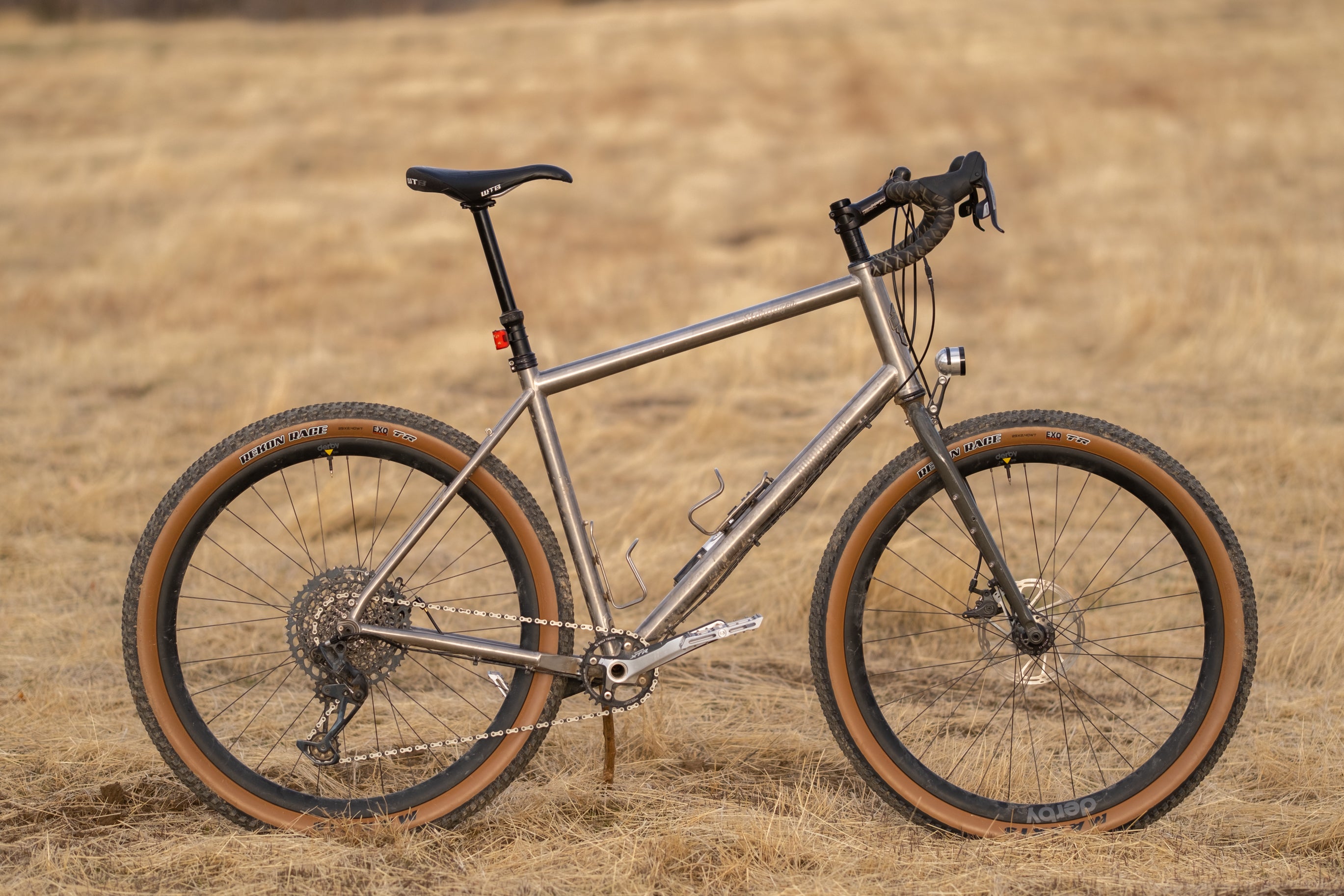

Tumbleweed Stargazer Standard Build
(Parts subject to change based on availability)
| Part | Description | |
|---|---|---|
| Frame | Stargazer Titanium | |
| Fork | Steel Unicrown | 110mm Thru Axle Unicrown |
| Headset | Cane Creek 40 | ZS upper, EC lower, 30mm Crown Race |
| Crankset | RaceFace Aeffect | Black, Cinch Direct Mount |
| Chainring | RaceFace | Black, 32t Direct Mount, Steel |
| Bottom Bracket | RaceFace | BSA Threaded |
| Front Hub | DT Swiss 350 | Black, 110mm Thru Axle 32 hole |
| Rear Hub | DT Swiss 350 | Black, 148x12mm 32 hole, SRAM XD driver |
| Cassette | SRAM GX Eagle | 10-52 tooth |
| Shifter Conversion Kit | Ratio Technologies | |
| Rear Derailleur | SRAM GX Eagle | Lunar |
| Rims | RaceFace | Arc 30 Offset |
| Spokes | Sapim Race | Black 2.0/1.8 w/Brass nipples |
| Brake Levers | SRAM Rival 22 | Black |
| Brake Calipers | Tektro MD-c550 | Black |
| Cables and Housing | Jagwire Pro Compressionless | Stainless Cables, Black Housing |
| Disc Brake Rotor Adaptors | Tektro | |
| Brake Rotors | SRAM Centerline | 180mm front, 160mm rear |
| Tires | Maxxis Ikon | 29x2.35 EXO 3C TR |
| Chain | SRAM | GX Eagle |
| Bar Tape | Camp and Go Slow Rattler | extra long |
| Stem | Zoom | Black 31.8mm 4 bolt |
| Handlebar | PNW Coast | 52cm Black |
| Seatpost | PNW Loam dropper post | Black, 31.6mm Diameter, 125mm travel |
| Saddle | WTB Pure | Black, Steel Rails |
| Tubeless Parts | Tubeless Sealant, Valves and Tape | |
| Headset Spacers | Black, Aluminum |
FAQ
A company called Ratio Technologies produces a kit that converts SRAM 11 speed road shifters to work seamlessly with 12 speed mountain derailleurs, we use their kit on our complete builds.
Yes, you'll just need to take into account that the frame has a reach that is optimized for drop bars, you'll likely need a long stem to run flat bars.
For the rear brake, if you want to run 160mm rotors, mount the caliper directly to the brake mount. Use the 160mm rear brake adaptor to run 180mm rotors. For the front brake, use the 140mm setting on your adaptor for 160mm rotors, and the 160mm setting for 180mm rotors.
