Stargazer Titanium Frameset

Regular price $2,850.00
Unit price
per

Frames are in stock and shipping now. Production frames have dark decals and a dark blue fork.


Leave a note in your order if you'd like us to build you a complete bike and we will reach out to finalize your specs.

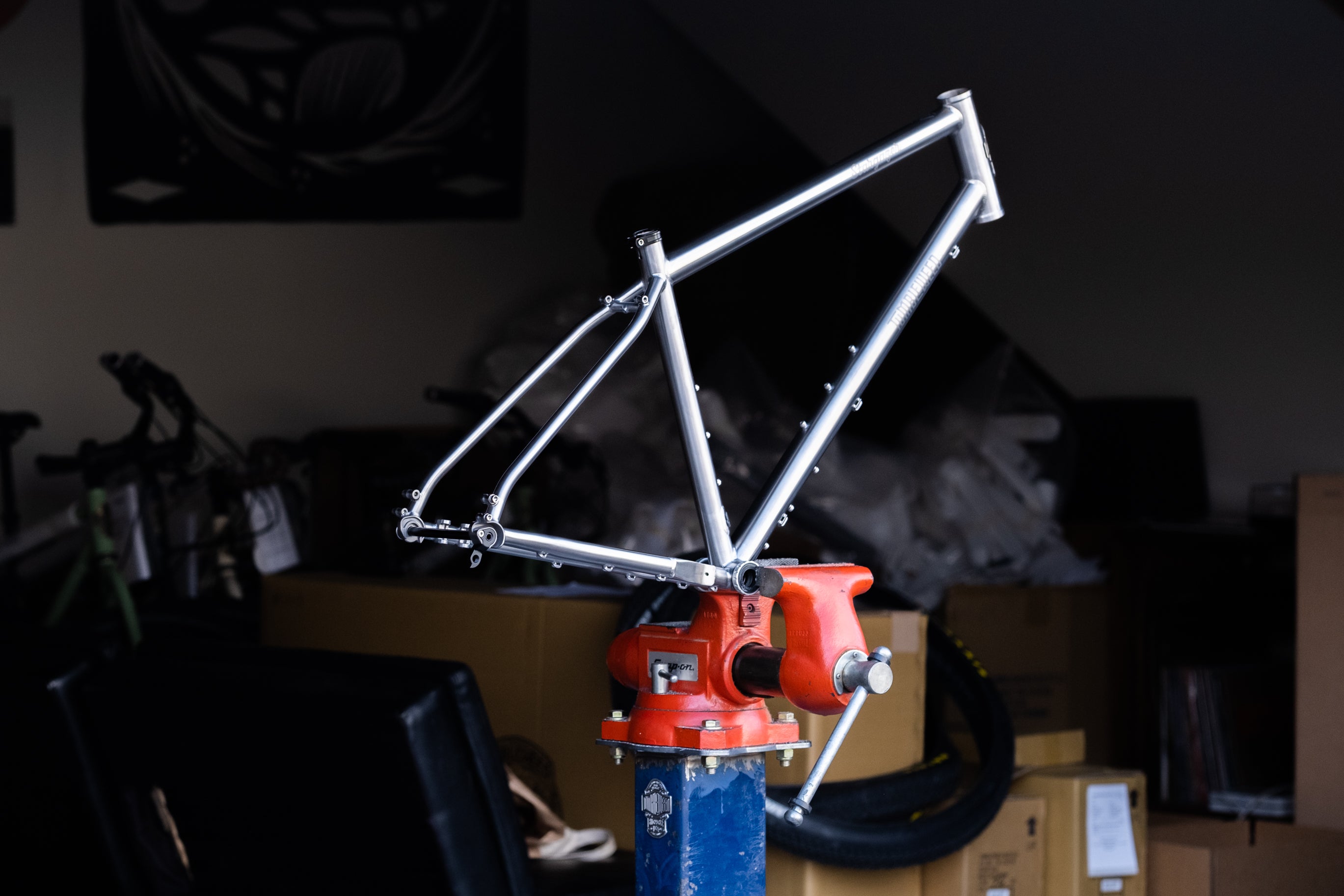

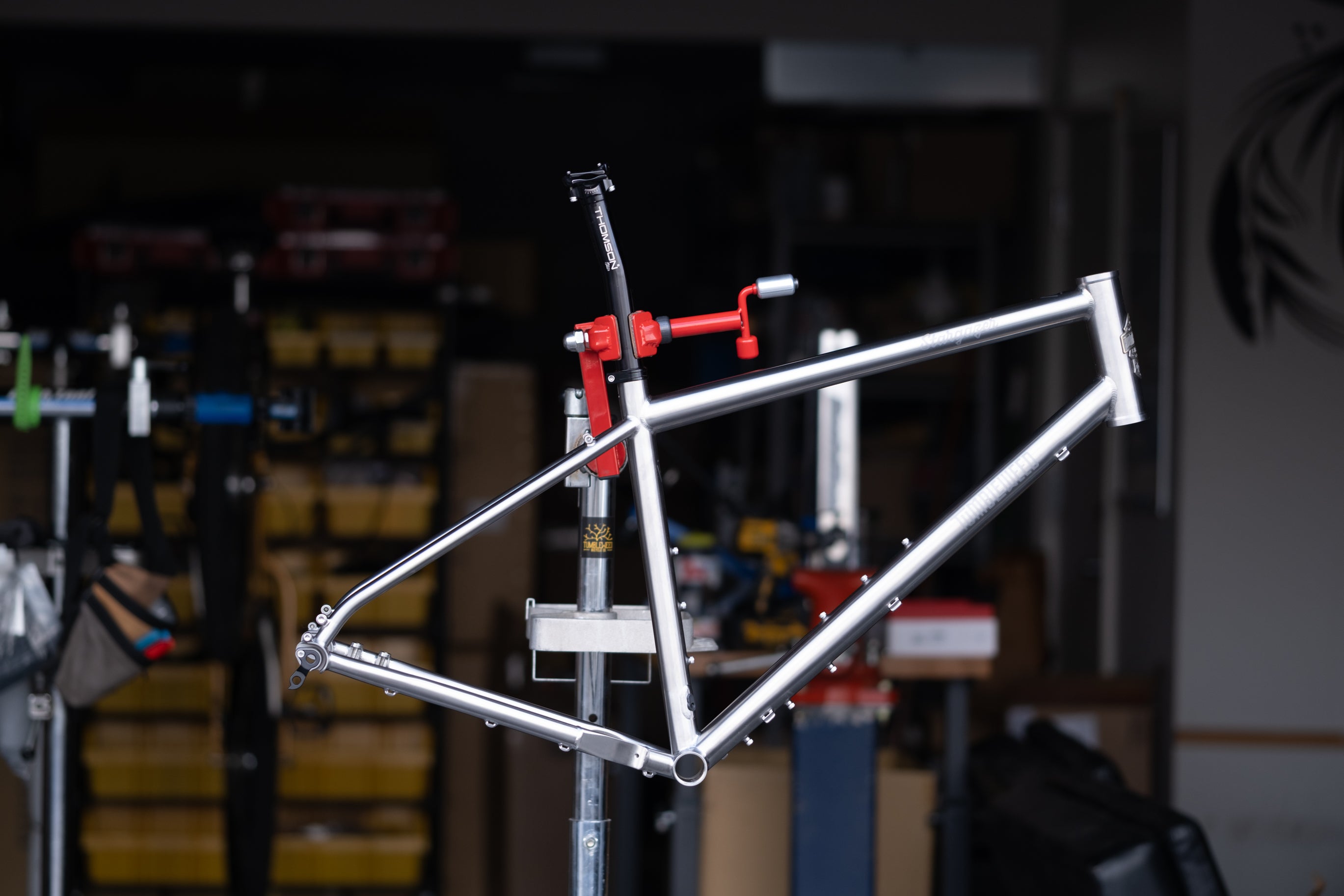

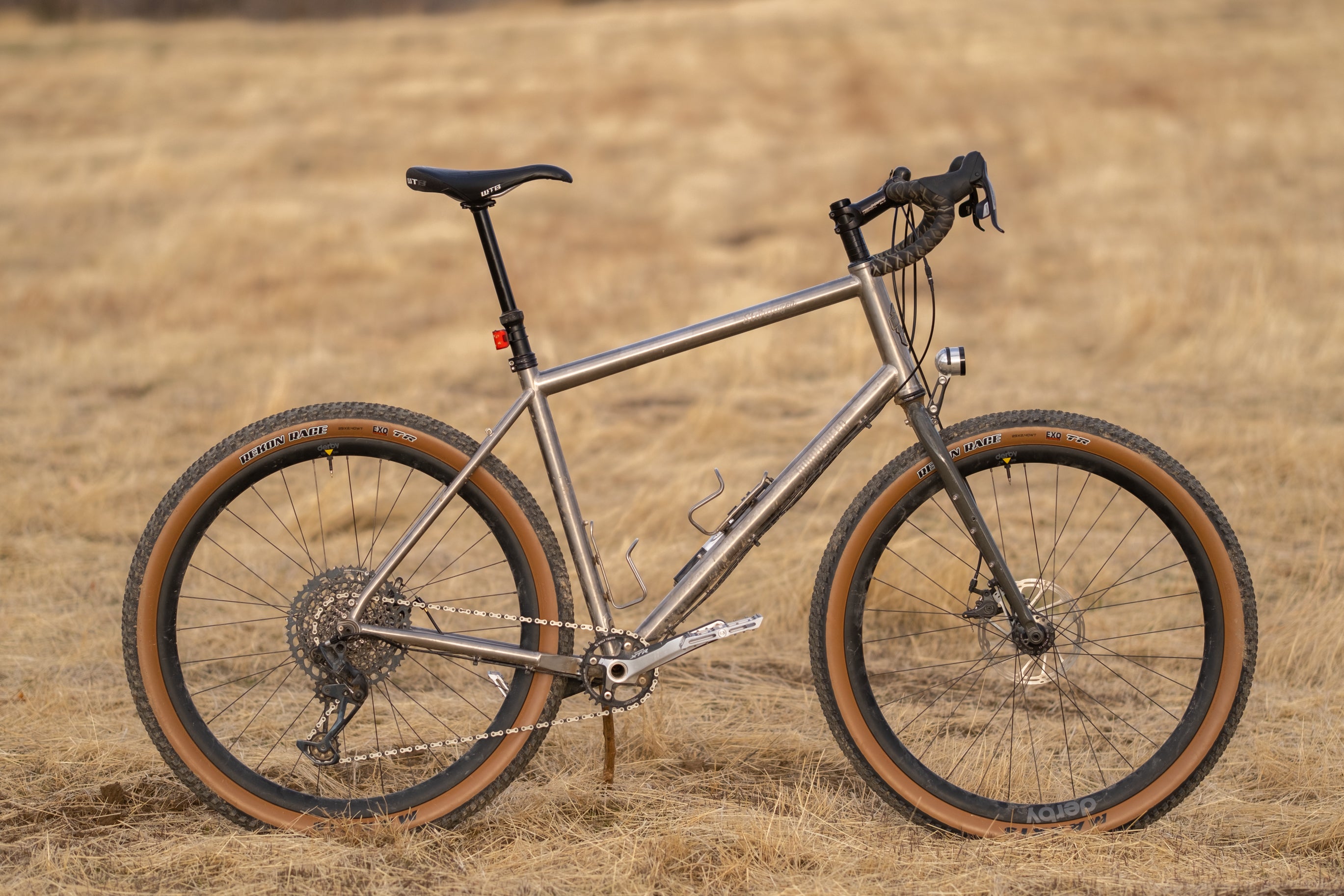

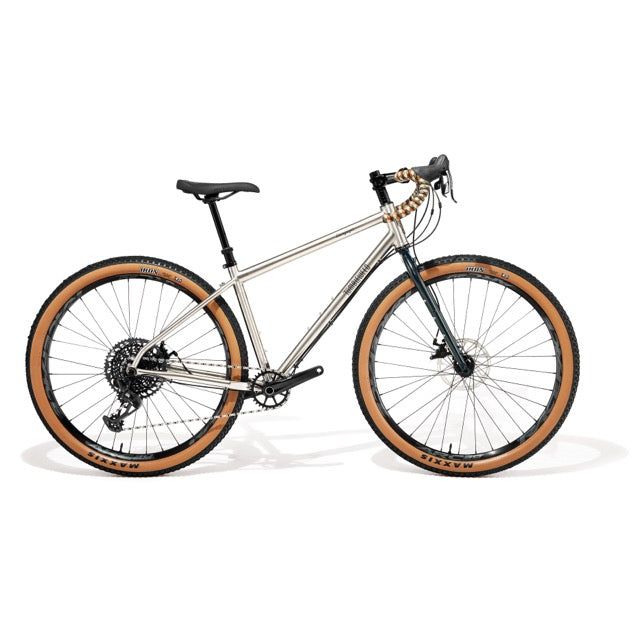

Introducing our new Stargazer drop bar mountain touring frame in titanium with a steel fork. It's a super high end frame with multi-butted, cold formed oversized custom 3Al-2.5V tubing that stands up to loaded off-road riding without turning into a noodle. We've been riding the sample frames for the last year and it's the bike I reach for more than any other. This is a super limited production frameset, we will most likely only offer them once a year (We are now on our second production run of frames). If you appreciate the lighter weight, corrosion resistance and dreamy ride quality that titanium offers then the titanium version of the Stargazer is a great option. We will sell these as framesets as well as complete builds, if you are interested in a complete bike please let us know in the notes section at checkout.

Geometry is the same as the steel frame, with 1cm longer in the top tube on all sizes.

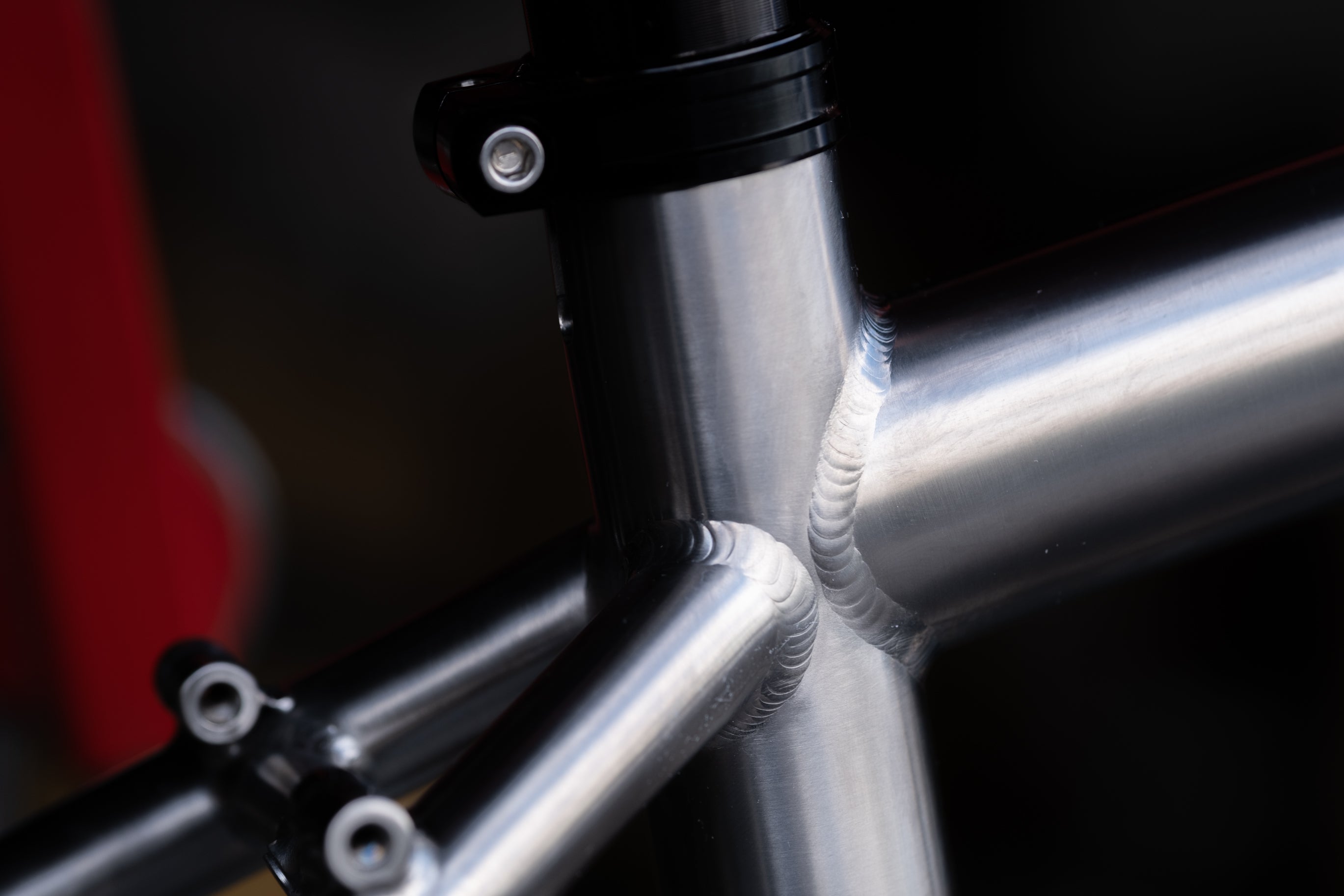

  • 3Al-2.5V multi butted titanium tubing, ovalized top tube and down tube
  • Frameset includes titanium frame with steel fork, seat clamp, front and rear thru axles
  • Ti frame saves approximately 2lbs over the steel frame (4.25lb vs 6.25lb for an Extra Medium or 57cm frame)

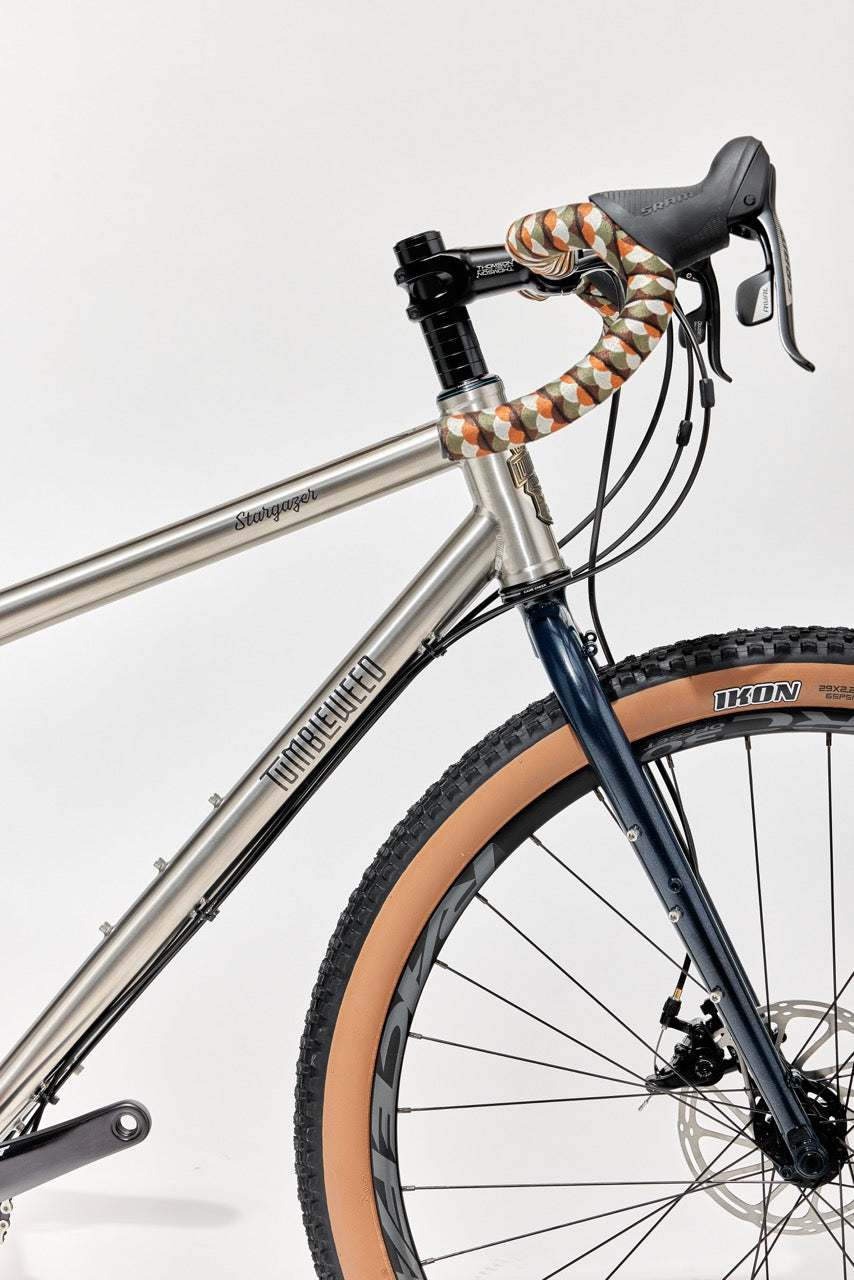

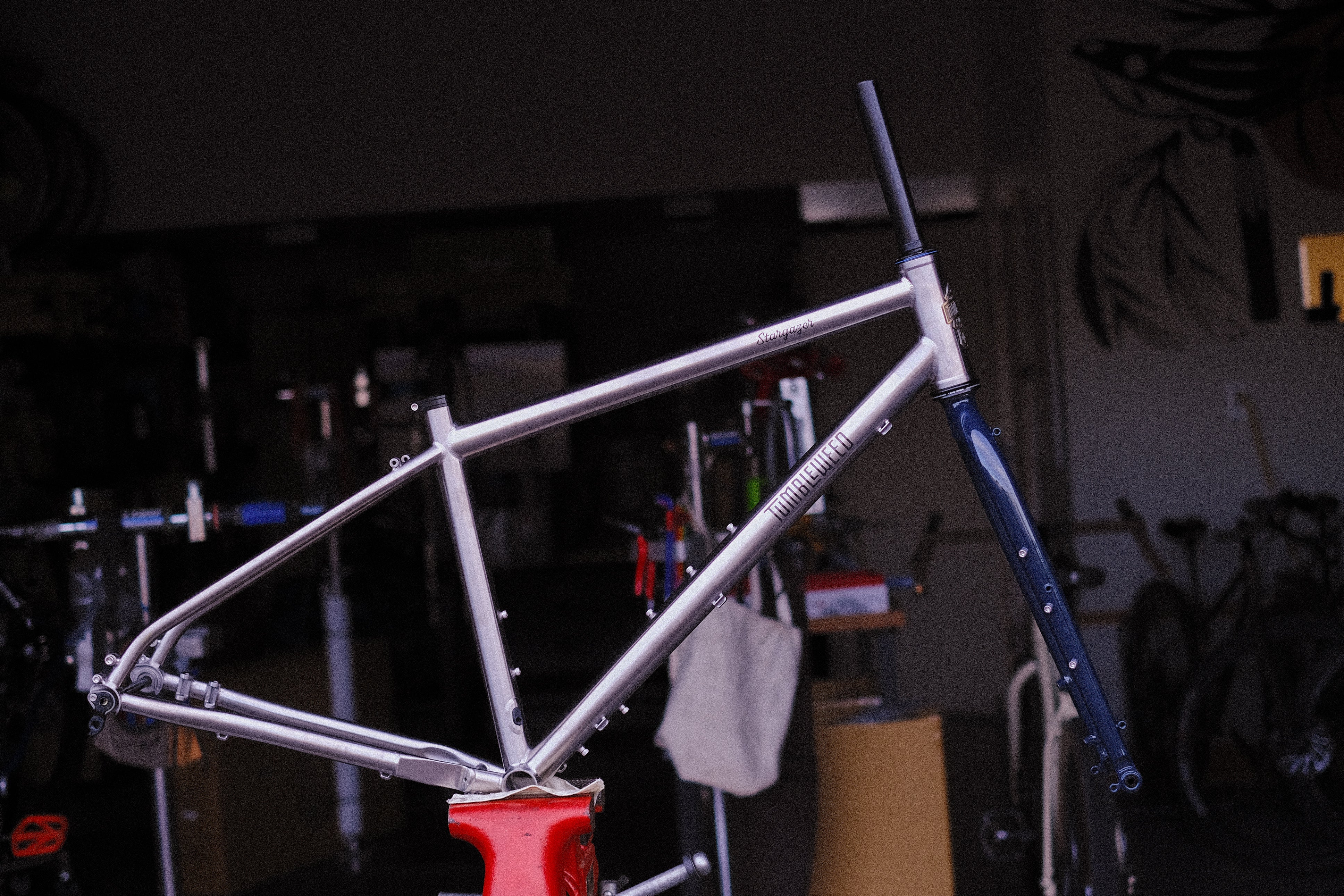

  • Brushed bare titanium finish with dark midnight logos and a matching dark midnight steel fork (same fork that comes with the steel frameset)

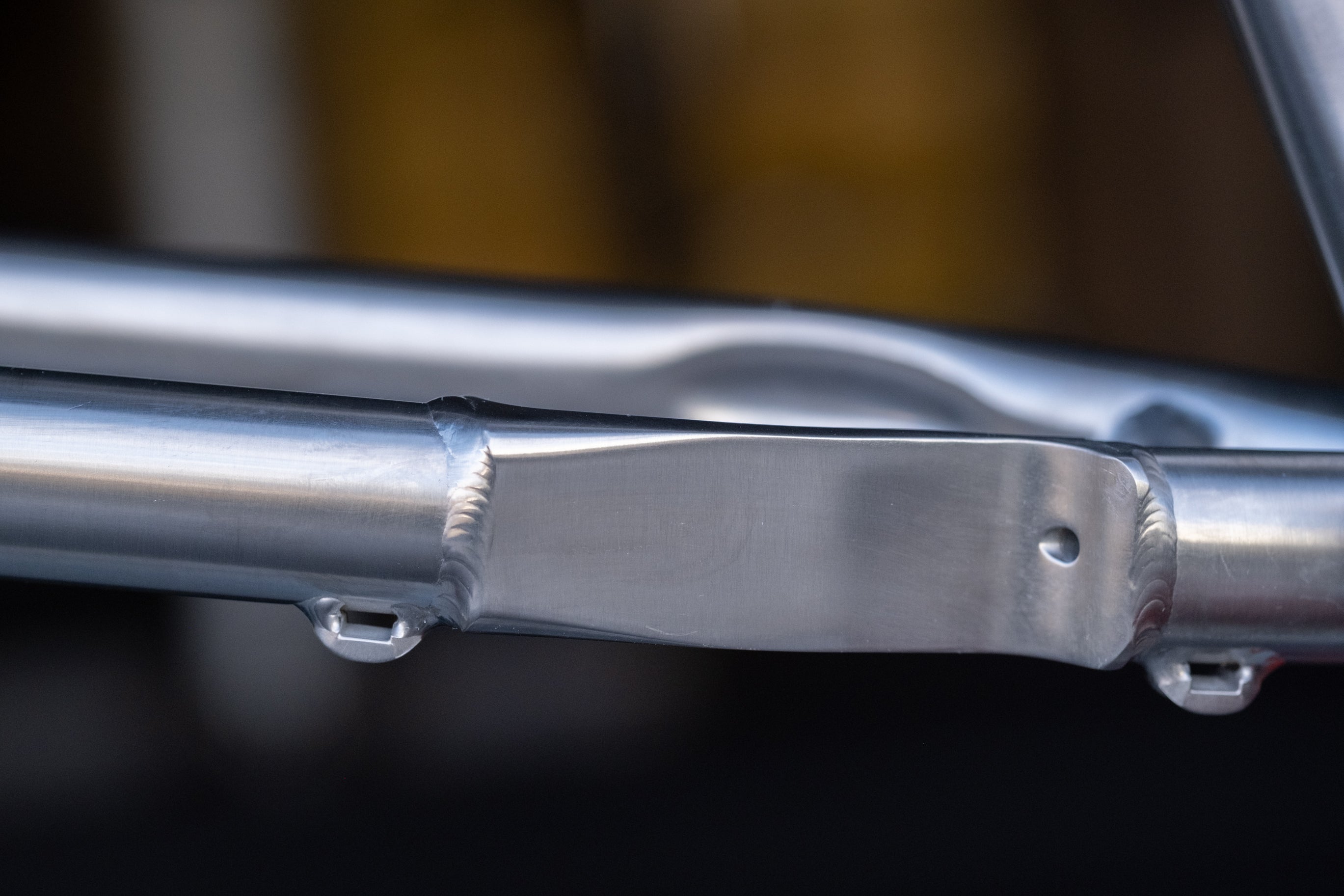

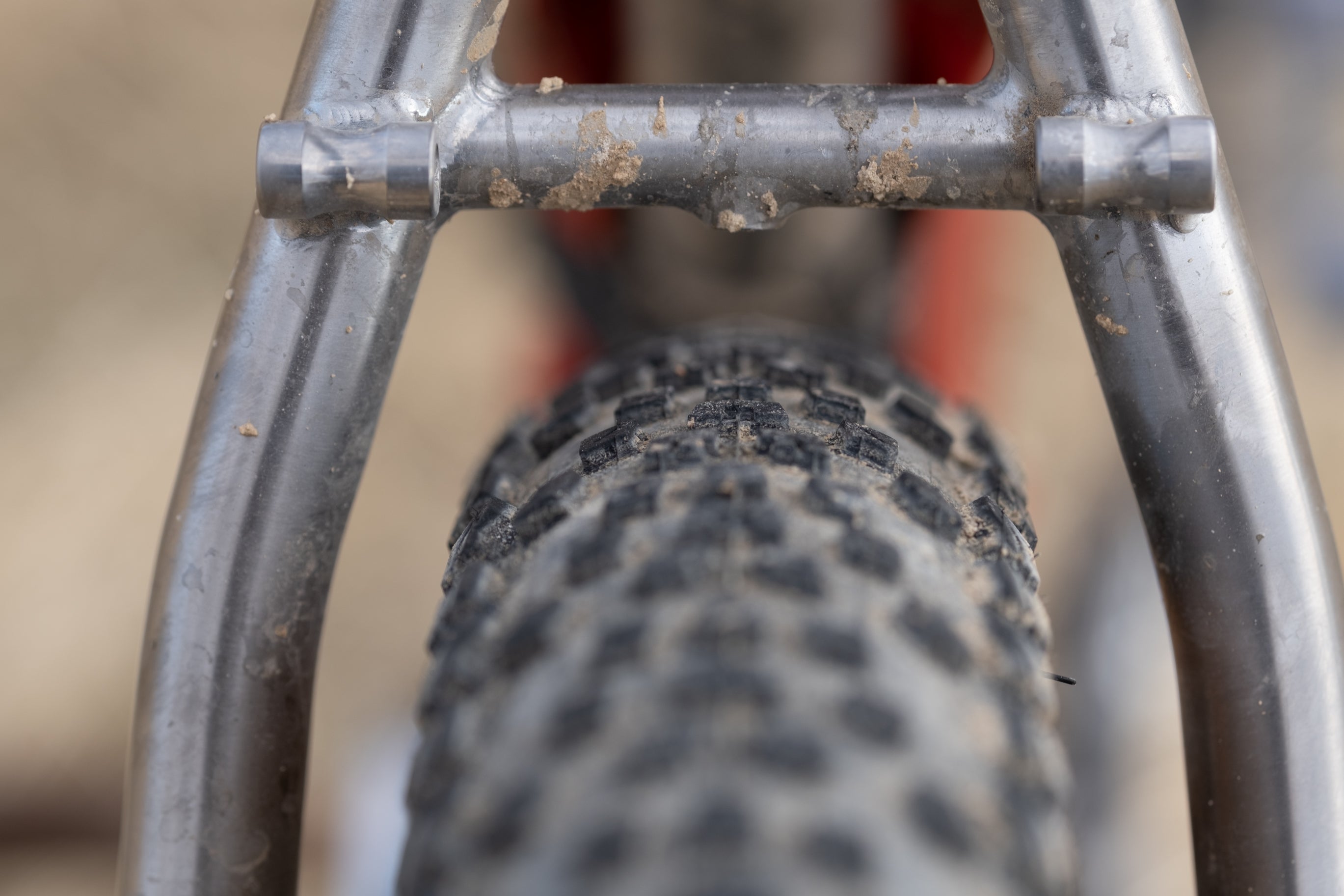

  • 29x2.6” or 27.5x3.0” tire clearance with machined titanium chainstay yoke

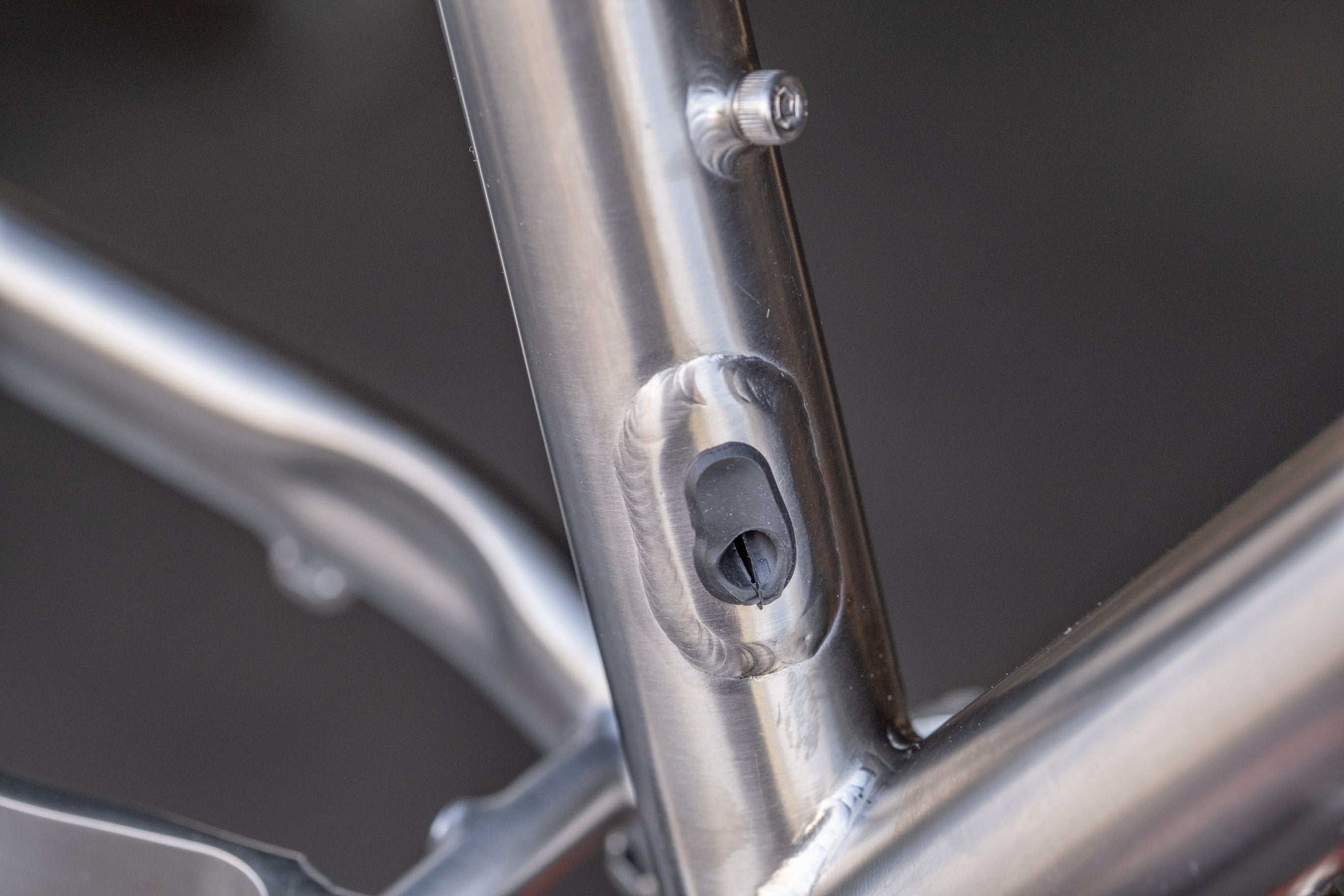

  • 31.6mm seatpost (compatible with internally routed dropper posts)
  • 44mm headtube for ZS44 upper headset cups and EC44 lower cups, 30mm crown race with stock fork

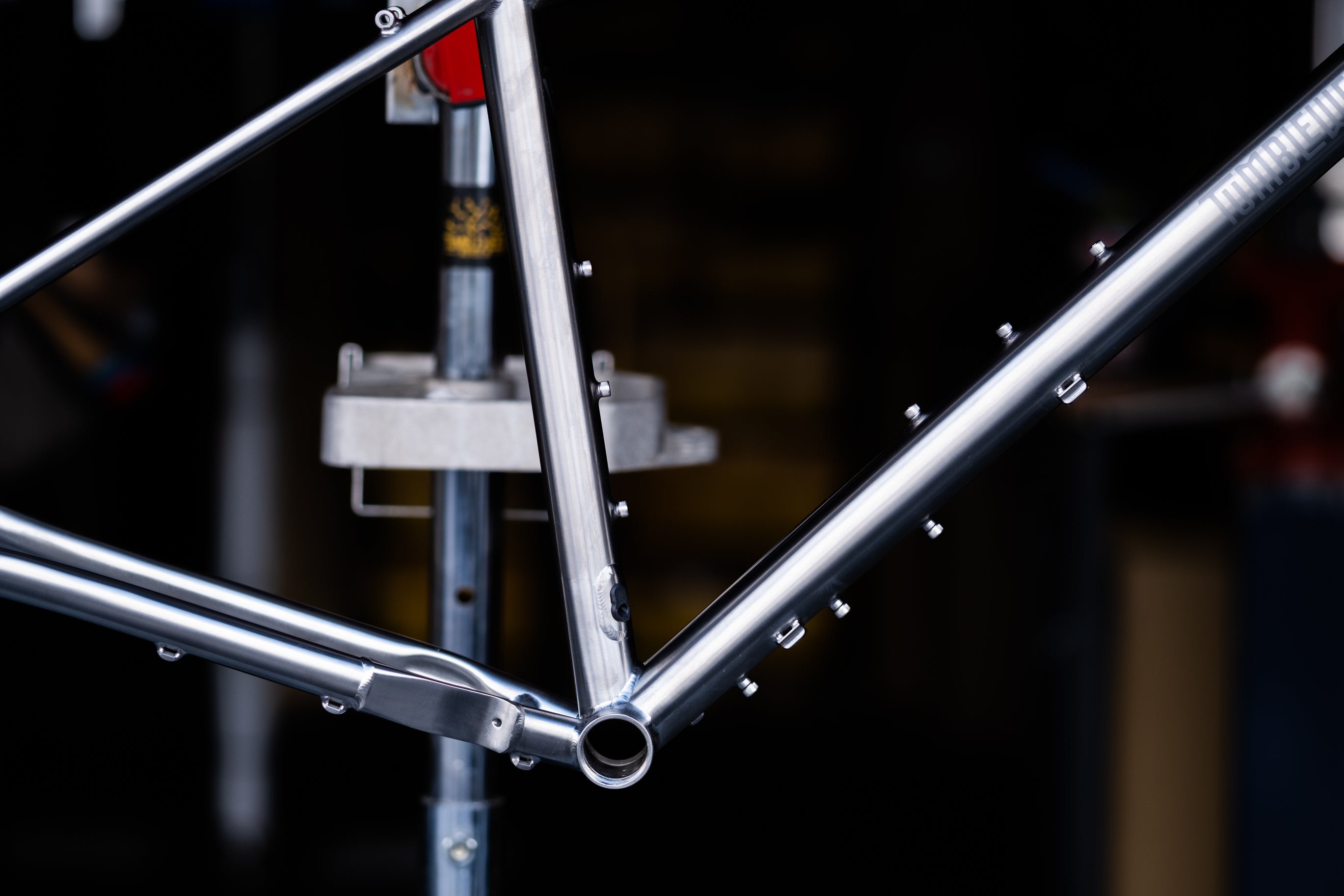

  • Threaded bosses for full size racks and fenders front and rear, three sets of bottle bosses on main triangle, triple bottle bosses on each fork leg

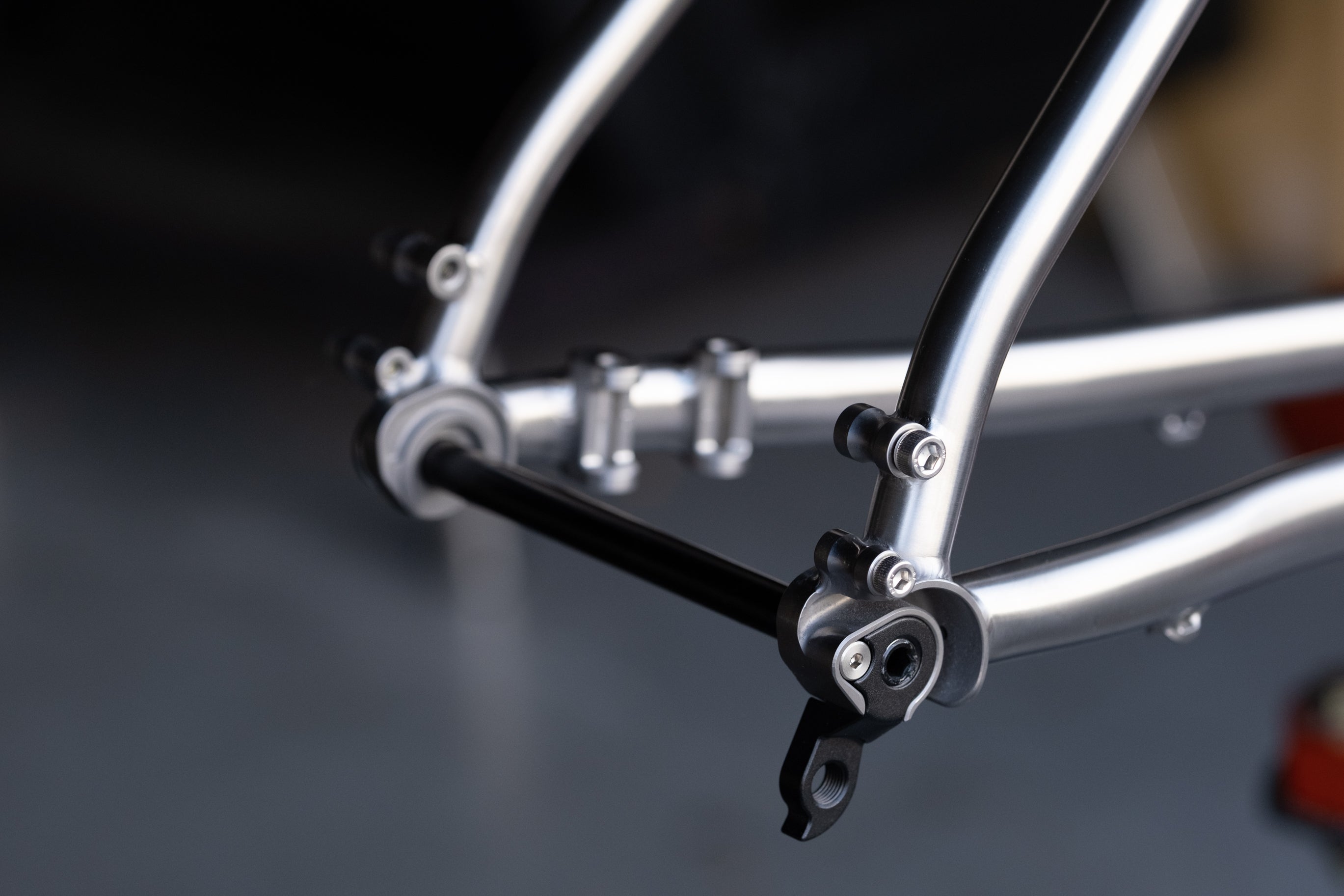

  • 148x12mm frame spacing and 110x15mm fork spacing
  • 160/180mm flat mount disc brakes front and rear
  • 1x drivetrain specific frame, 38t max chainring with 52mm chainline
    Reviews
    Frame Material 3Al-2.5V multi butted titanium tubing, ovalized top tube and down tube
    Rack/Fender Compatibility Rack and fender compatible, three bottle mounts on frame triangle
    Fork Unicrown Chromoly steel with 110x15mm thru axle (thru axle included), upper and lower rack mounts, fender mounts, triple bottle cage mounts on fork legs, internal dynamo wire routing
    Max Tire Clearance 29x2.6"/27.5x3.0"
    Headtube 44mm I.D.
    Headset ZS44 upper, EC44 lower
    Bottom Bracket 73mm BSA threaded
    Rear Axle (Included) 148x12mm Boost
    Seatpost Diameter 31.6mm
    Dropper Seatpost Compatibility Internally routed for dropper post
    Seat Clamp (included) 35mm
    Drivetrain Compatibility 1x drivetrain specific, not designed to accomodate front derailleur
    Brake Compatibility 160/180mm flat mount front and rear
    Fork Axle to Crown 440mm
    Fork Steer Tube Length 350mm
    Chainring Clearance 1X Boost, 38 tooth max
    Frame Geometry Small Medium Extra Medium Large Extra Large
    Effective Top Tube Length535mm555mm575mm595mm615mm
    Seat Tube Angle73.5 degrees73 degrees73 degrees72.5 degrees72.5 degrees
    Seat Tube Length C-T380mm430mm460mm490mm545mm
    Head Tube Length115mm140mm175mm200mm230mm
    Head Tube Angle69 degrees69 degrees69 degrees69 degrees69 degrees
    Fork Offset55mm55mm55mm55mm55mm
    Chainstay Length450mm450mm450mm450mm450mm
    Bottom Bracket Drop63.5mm63.5mm63.5mm63.5mm63.5mm
    Stack574mm597mm630mm653mm680mm
    Reach365mm372mm382mm389mm403mm
    Standover Height*750mm784mm815mm840mm875mm
    * At center of top tube with a 29x2.25" tire measuring 730mm in diameter.

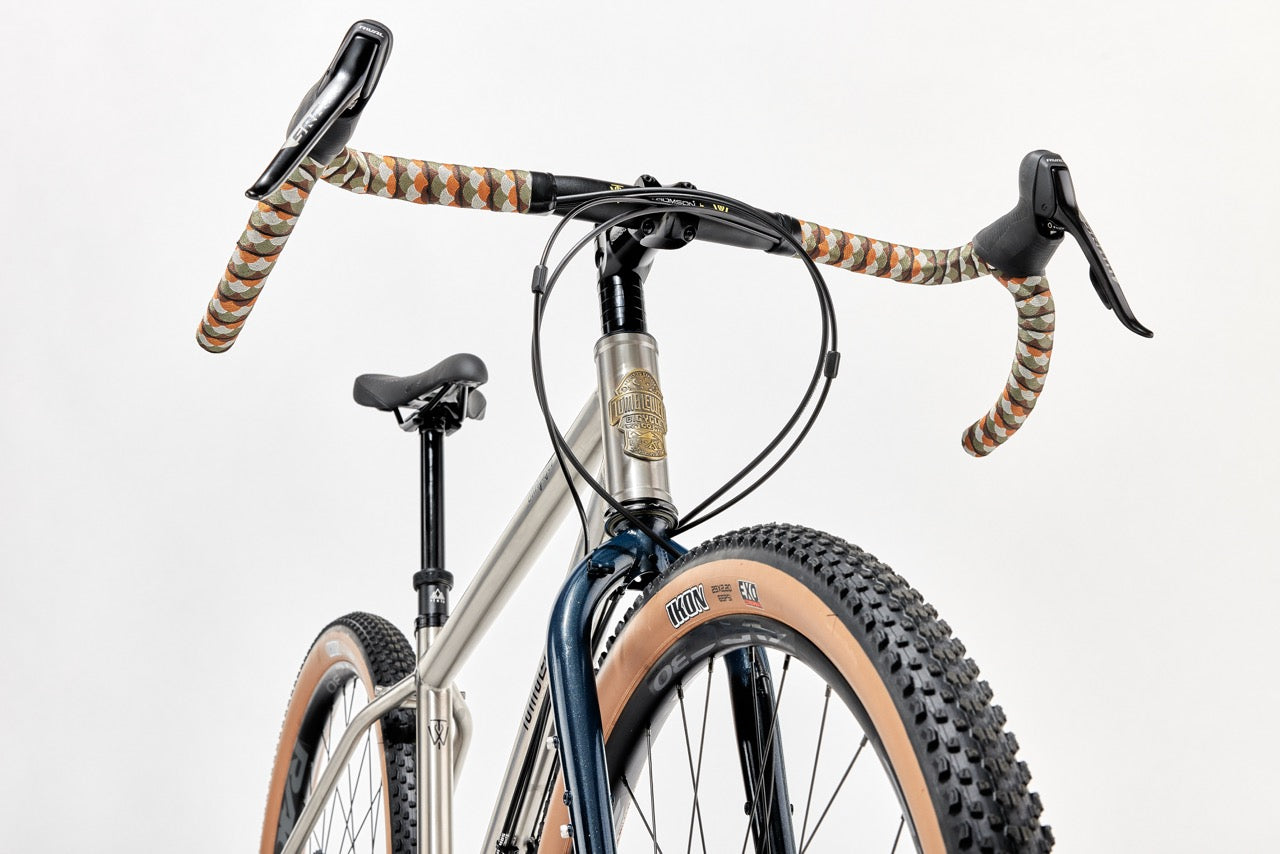

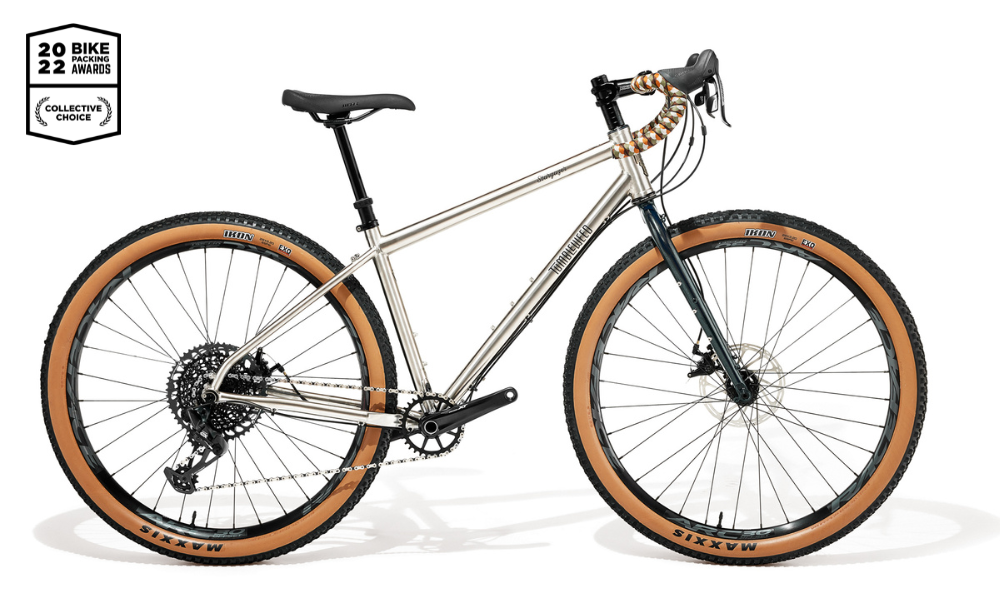

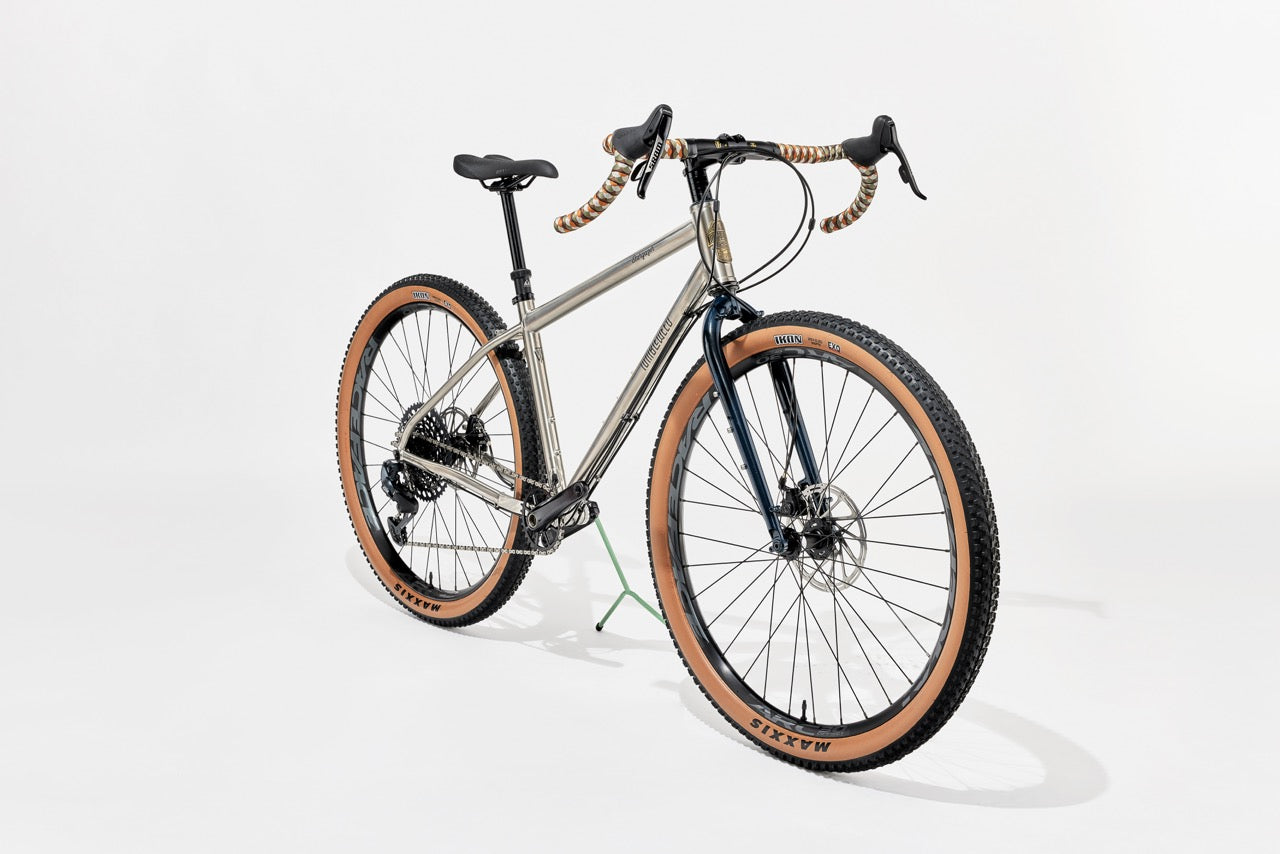

    Tumbleweed Stargazer Standard Build
    (Parts subject to change based on availability)
    Part Description
    FrameStargazer Titanium
    ForkSteel Unicrown110mm Thru Axle Unicrown
    HeadsetCane Creek 40ZS upper, EC lower, 30mm Crown Race
    CranksetRaceFace AeffectBlack, Cinch Direct Mount
    ChainringRaceFaceBlack, 32t Direct Mount, Steel
    Bottom BracketRaceFaceBSA Threaded
    Front HubDT Swiss 350Black, 110mm Thru Axle 32 hole
    Rear HubDT Swiss 350Black, 148x12mm 32 hole, SRAM XD driver
    CassetteSRAM GX Eagle10-52 tooth
    Shifter Conversion KitRatio Technologies
    Rear DerailleurSRAM GX EagleLunar
    RimsRaceFaceArc 30 Offset
    SpokesSapim RaceBlack 2.0/1.8 w/Brass nipples
    Brake LeversSRAM Rival 22Black
    Brake CalipersTektro MD-c550Black
    Cables and HousingJagwire Pro CompressionlessStainless Cables, Black Housing
    Disc Brake Rotor AdaptorsTektro
    Brake RotorsSRAM Centerline180mm front, 160mm rear
    TiresMaxxis Ikon29x2.35 EXO 3C TR
    ChainSRAMGX Eagle
    Bar TapeCamp and Go Slow Rattlerextra long
    StemZoomBlack 31.8mm 4 bolt
    HandlebarPNW Coast52cm Black
    SeatpostPNW Loam dropper postBlack, 31.6mm Diameter, 125mm travel
    SaddleWTB Pure Black, Steel Rails
    Tubeless Parts Tubeless Sealant, Valves and Tape
    Headset Spacers Black, Aluminum
    How can I run 11 speed SRAM road shifters with a 12 speed SRAM Eagle drivetrain?
    A company called Ratio Technologies produces a kit that converts SRAM 11 speed road shifters to work seamlessly with 12 speed mountain derailleurs, we use their kit on our complete builds.
    Can I run flat bars on the Stargazer?
    Yes, you'll just need to take into account that the frame has a reach that is optimized for drop bars, you'll likely need a long stem to run flat bars.
    My flat mount brake adaptors only have the option for 140mm or 160mm, what setting do I use for the Stargazer?
    For the rear brake,if you want to run 160mm rotors, mount the caliper directly to the brake mount. Use the 160mm rear brake adaptor to run 180mm rotors. For the front brake, use the 140mm setting on your adaptor for 160mm rotors, and the 160mm setting for 180mm rotors.
