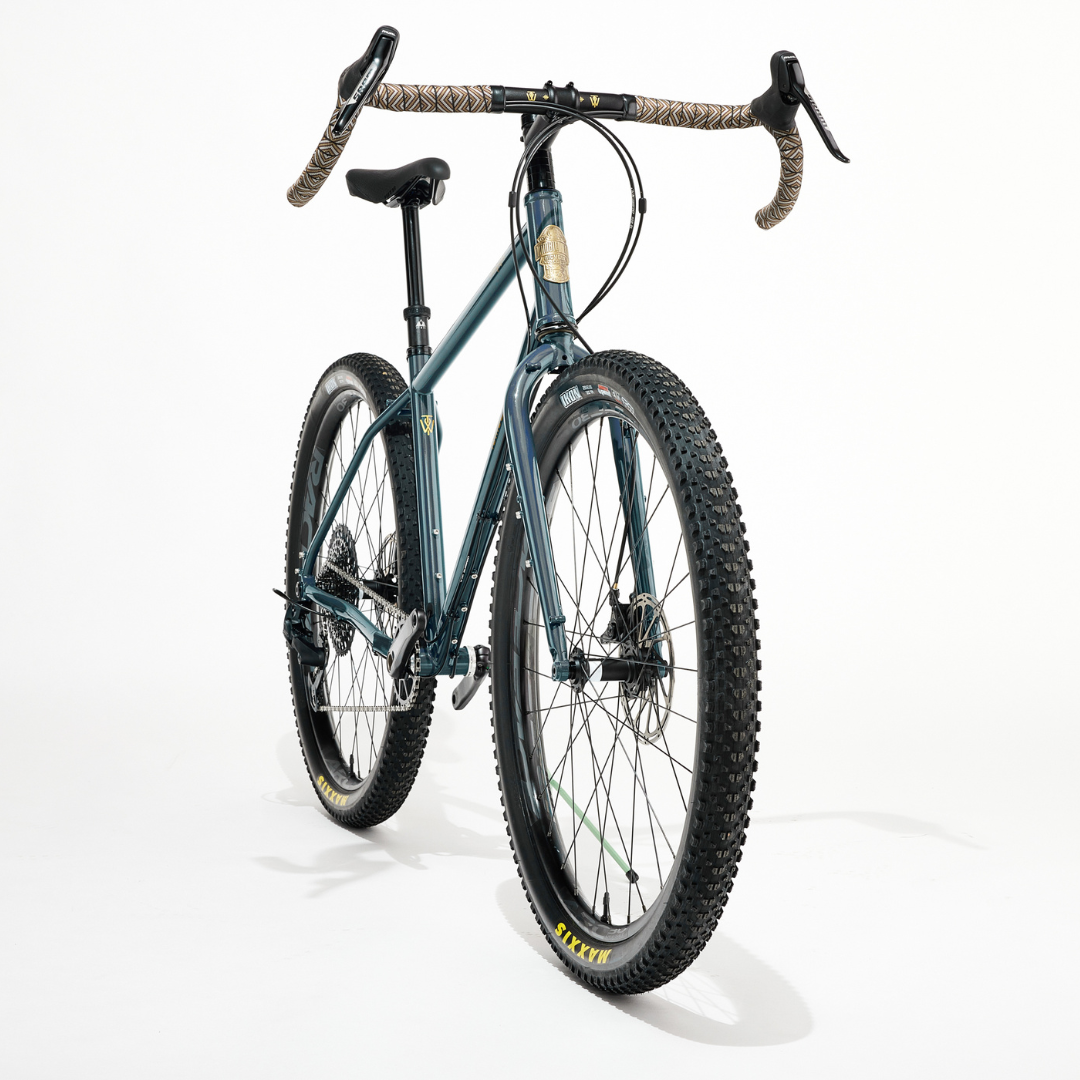

Stargazer (Gen 2)

Sale price$1,450.00 USD

Size: Small

Size

Color: Steel Blue

Color

Build Option: Frame and Fork

Build Option

Stargazer (Gen 2)Small / Steel Blue / Frame and Fork Sale price$1,450.00 USD

Details

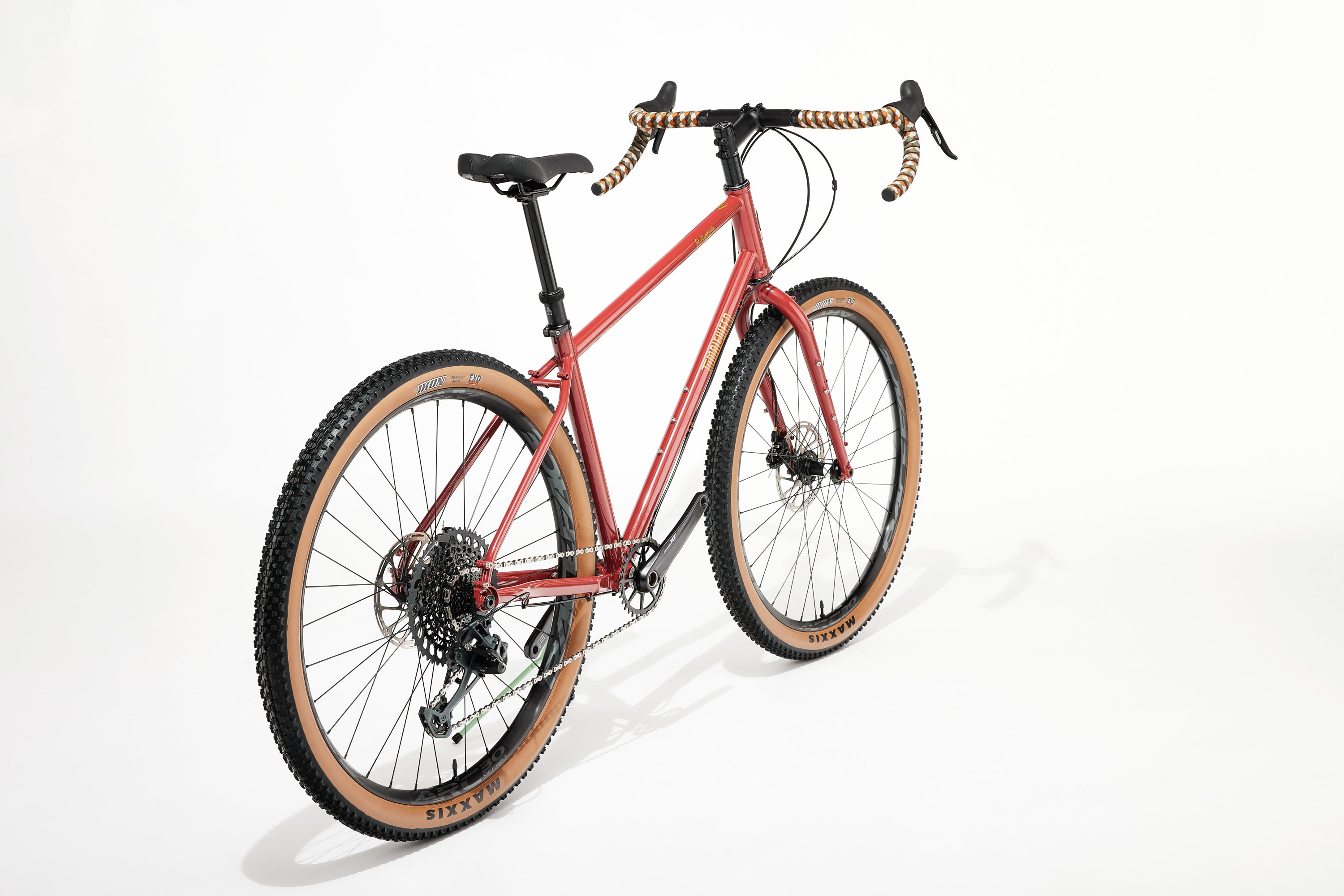

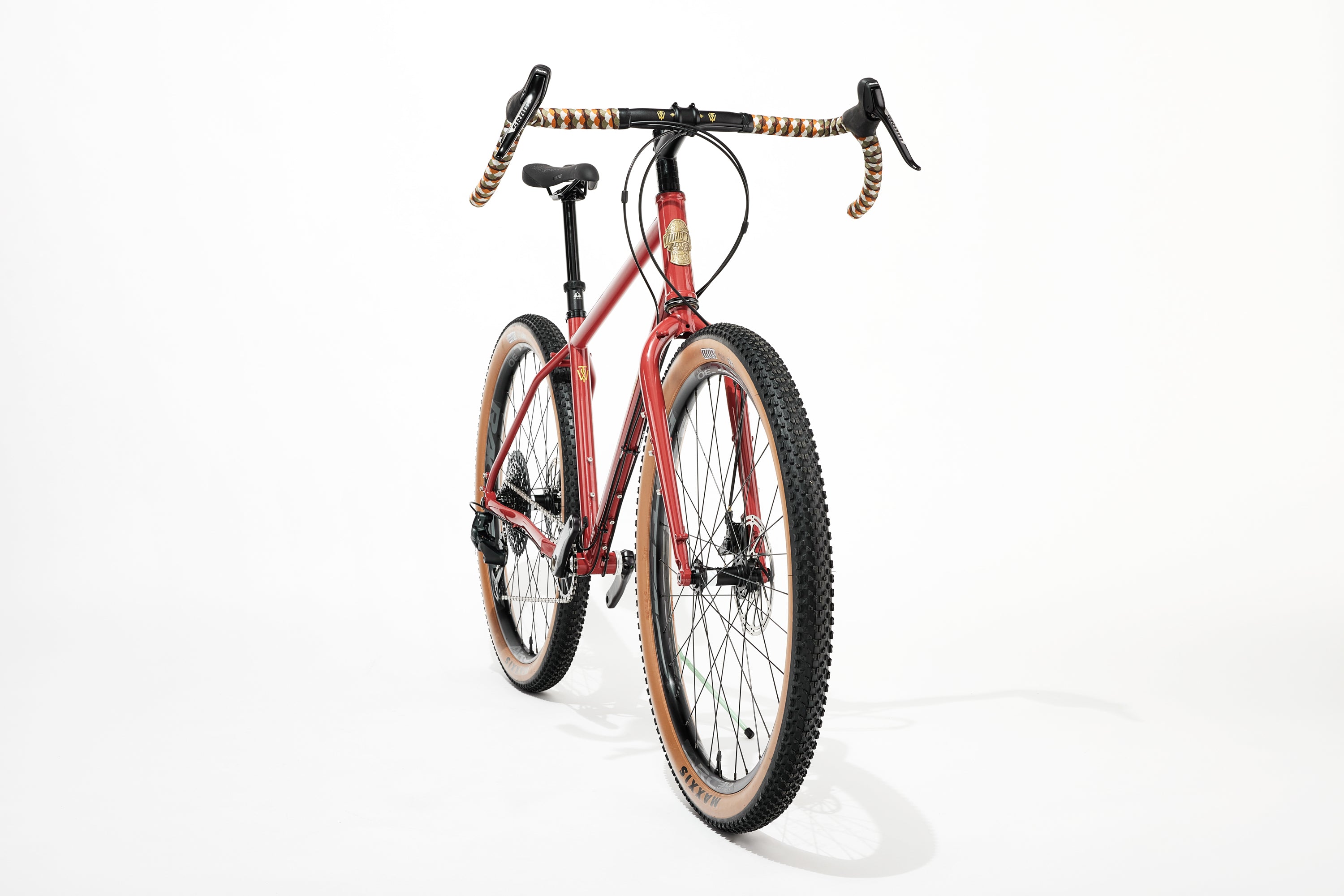

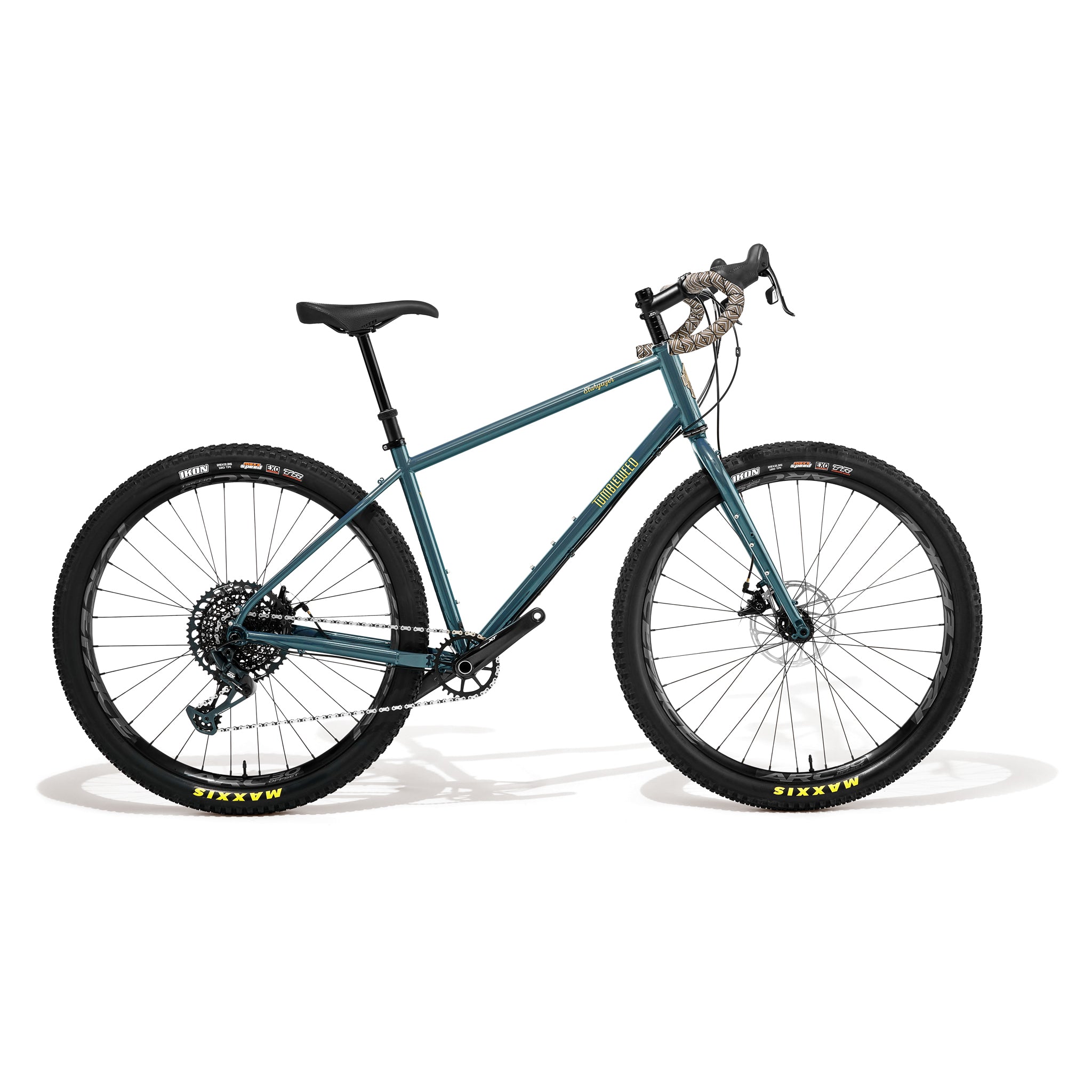

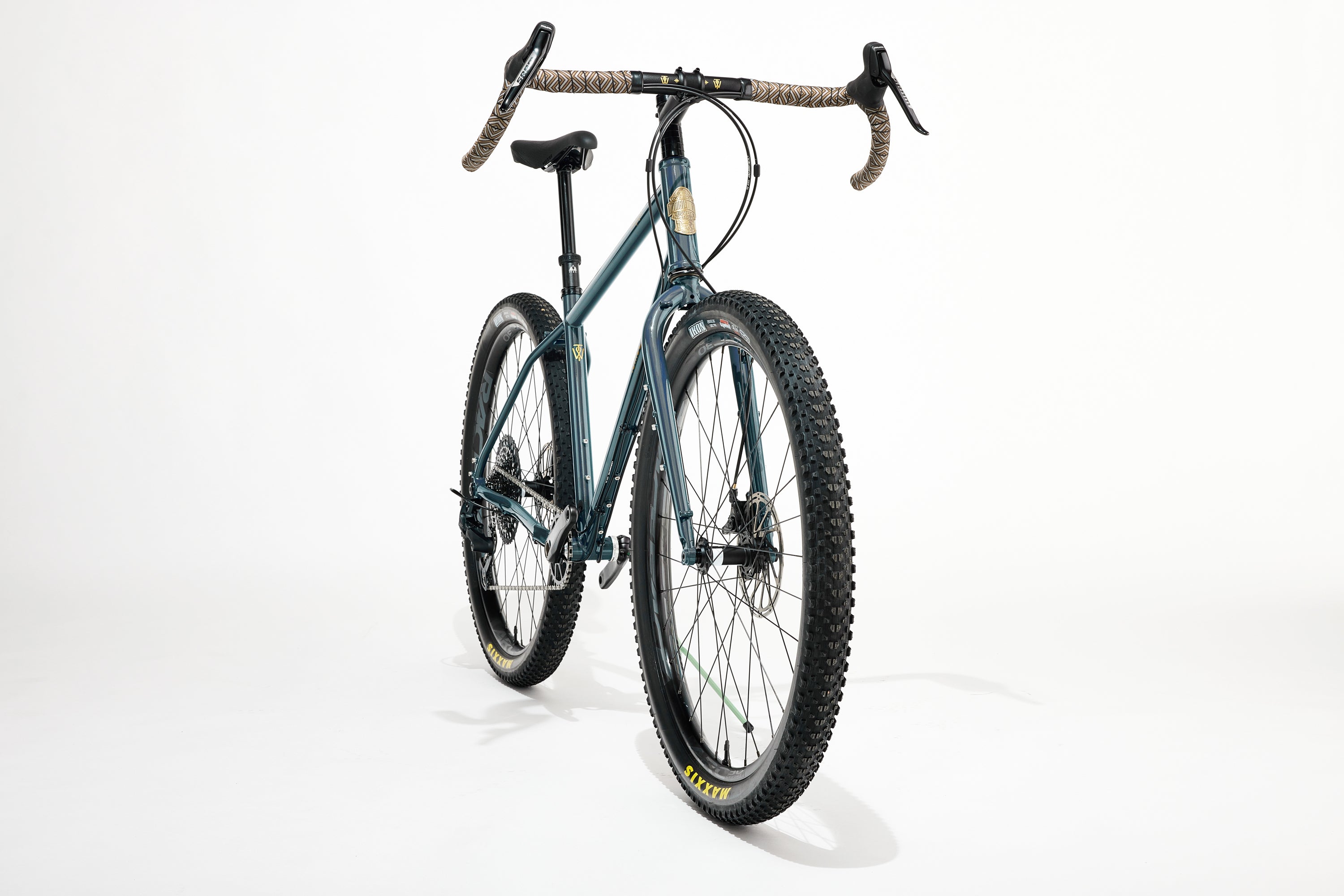

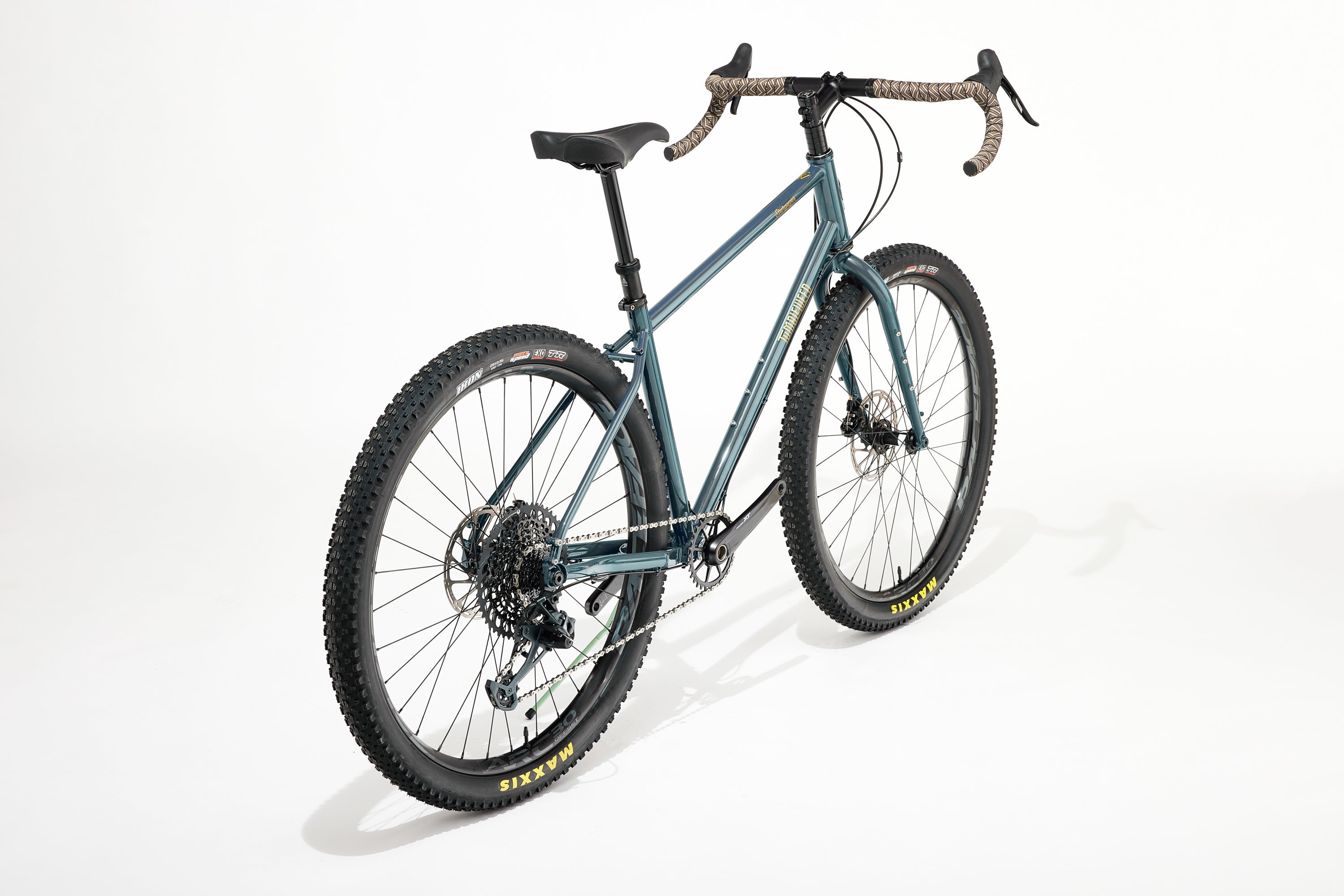

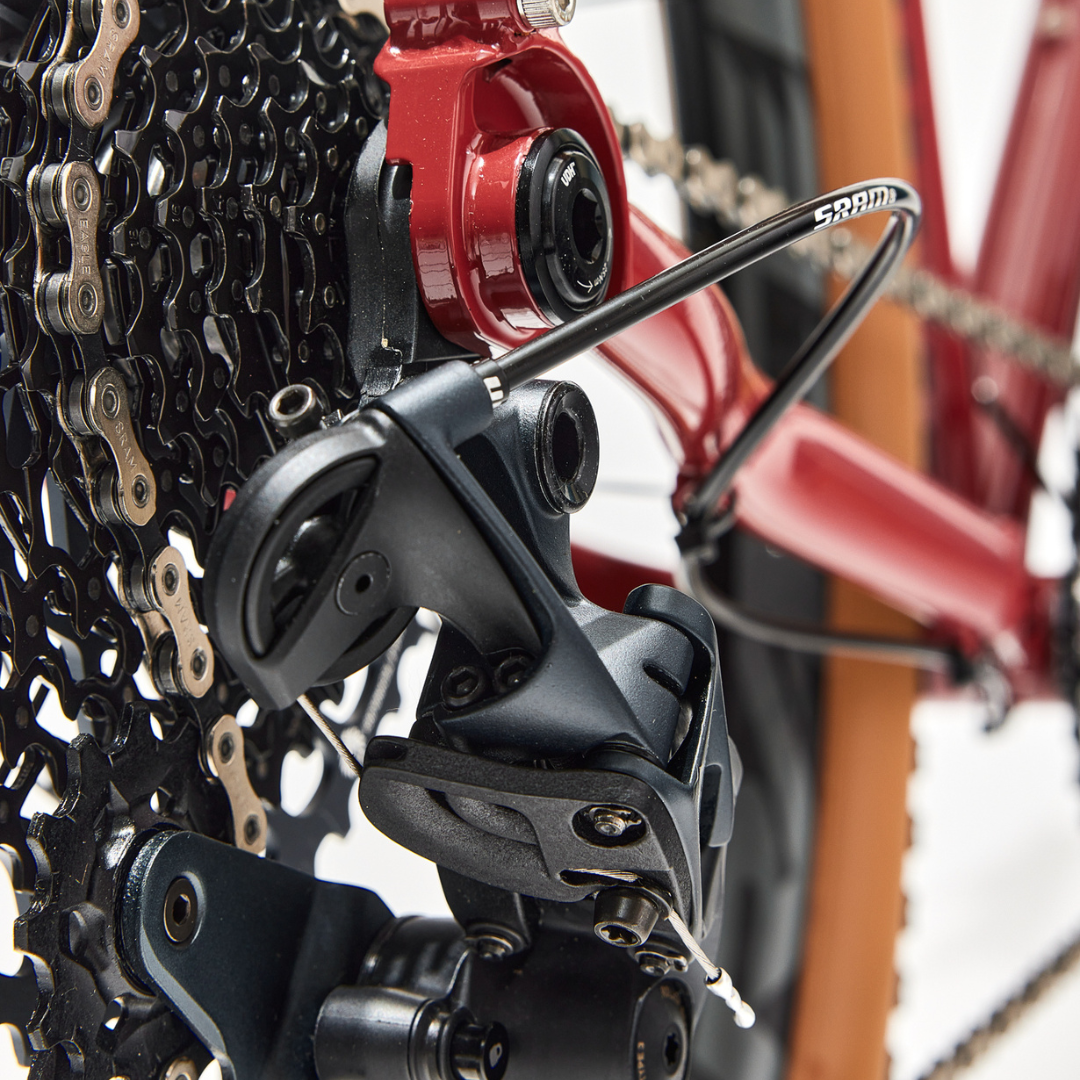

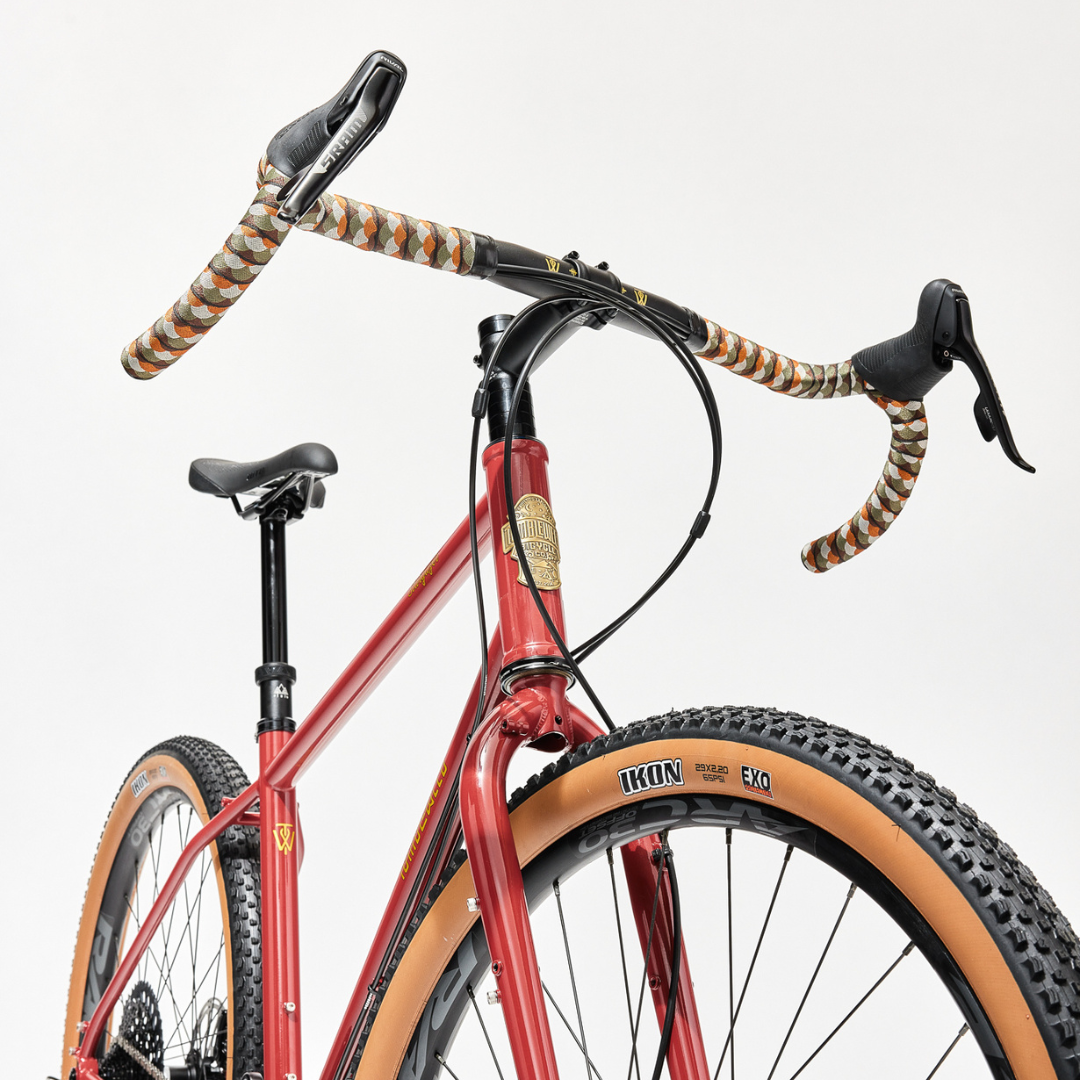

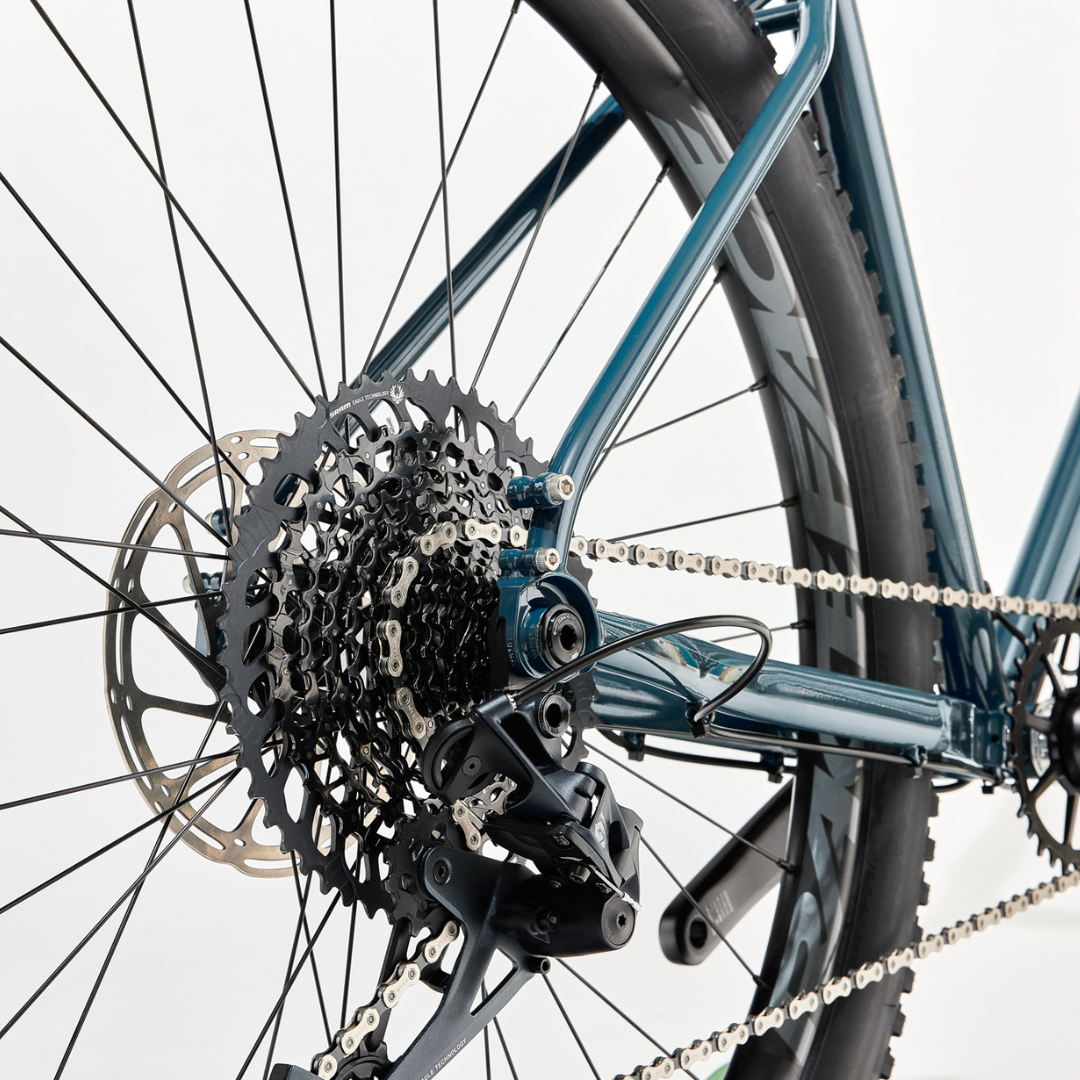

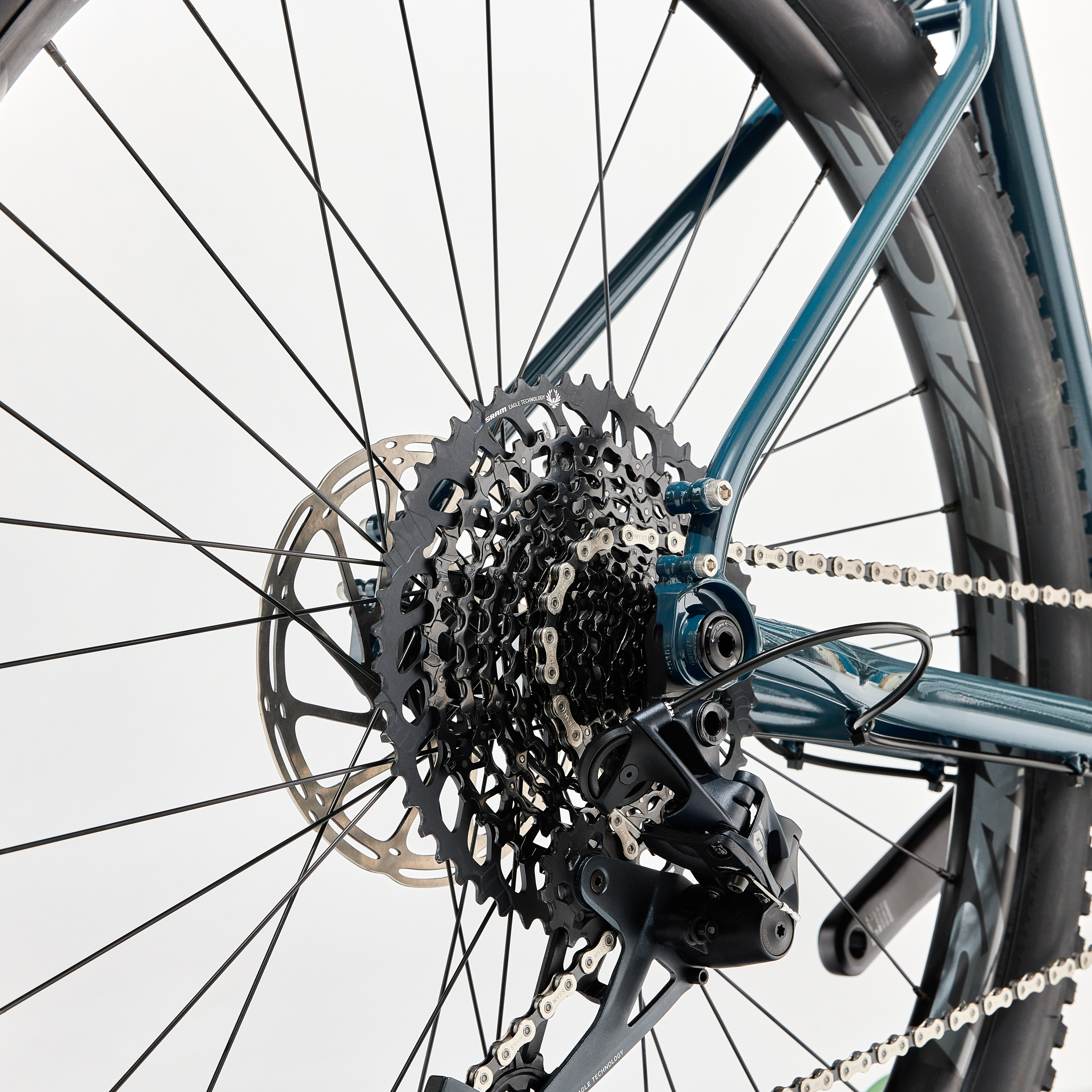

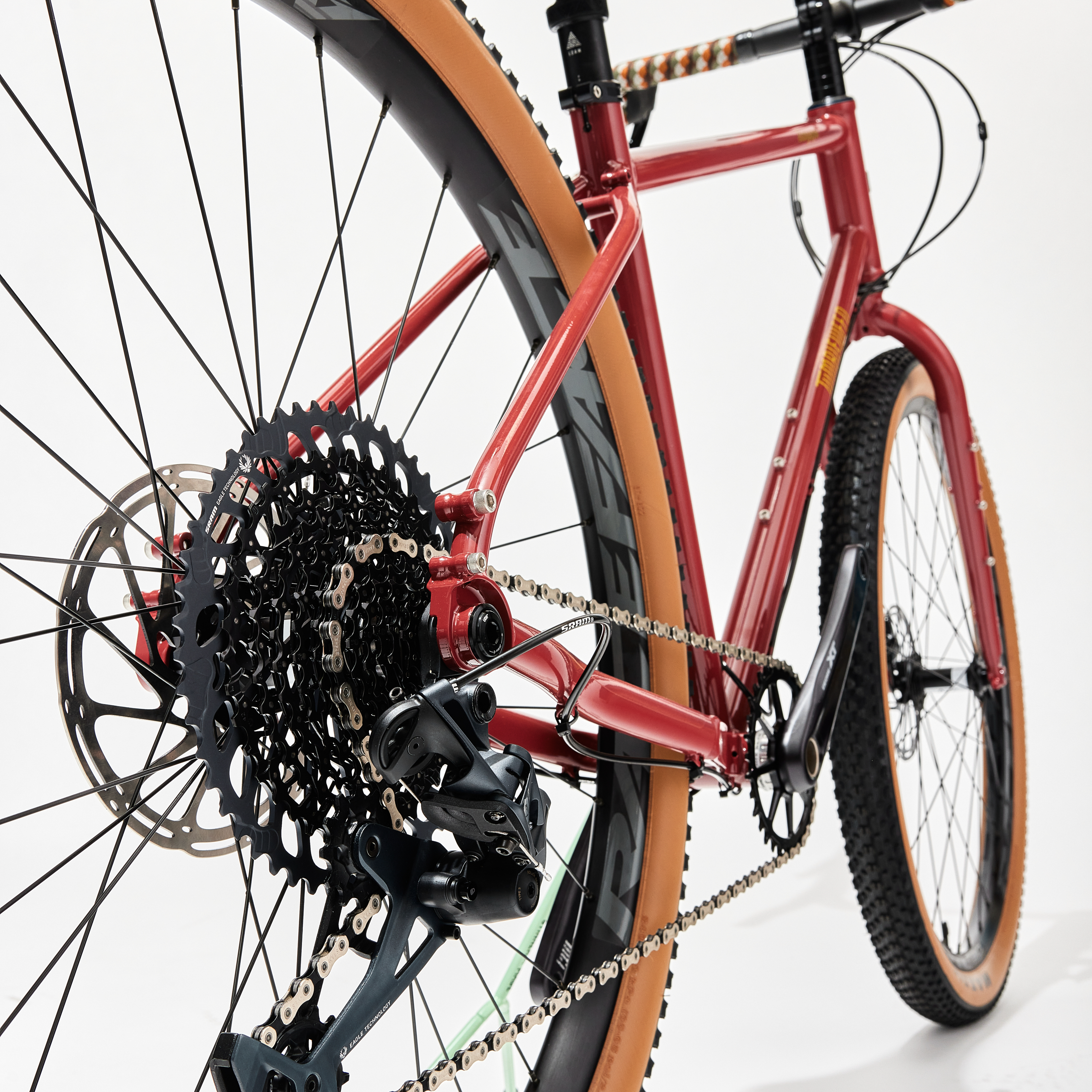

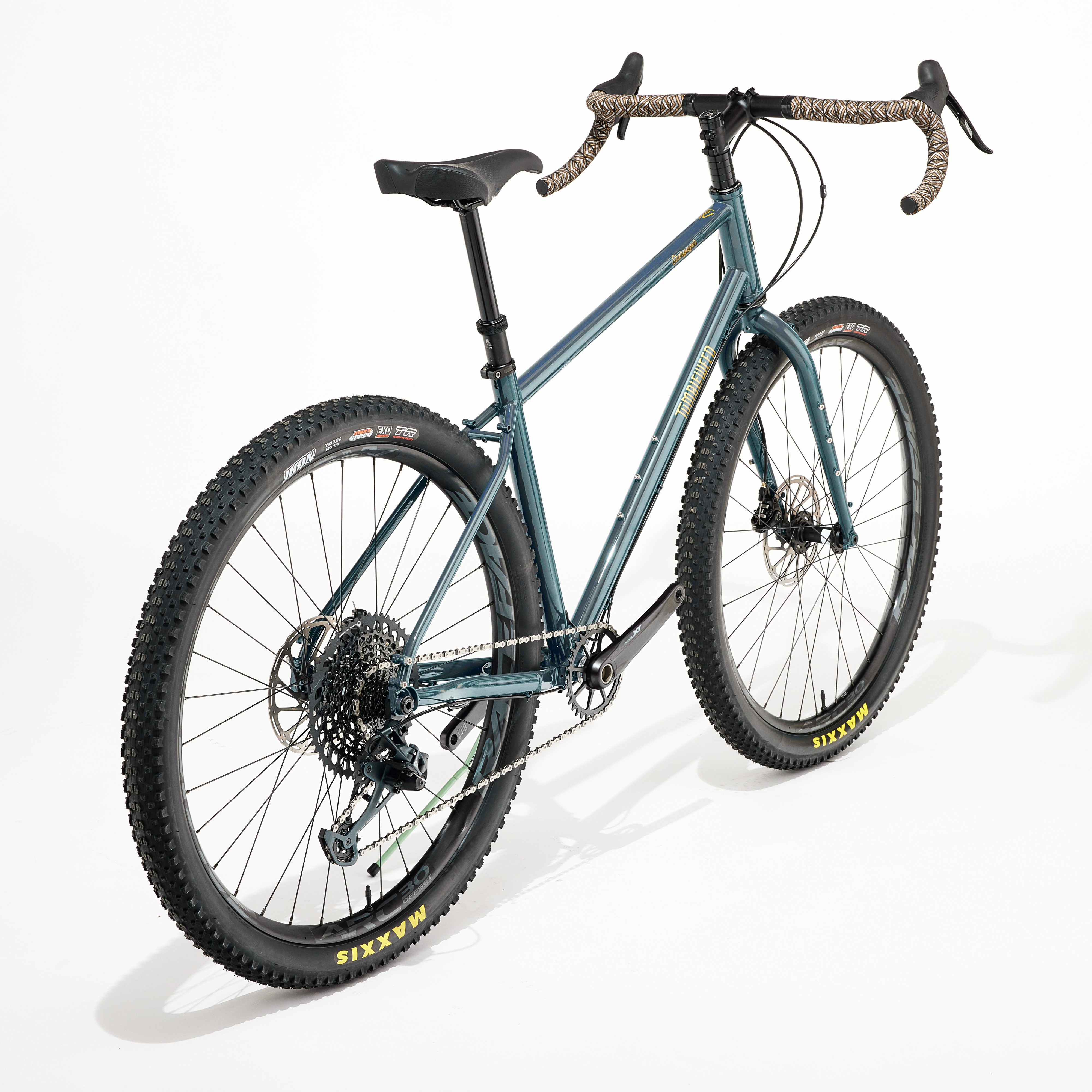

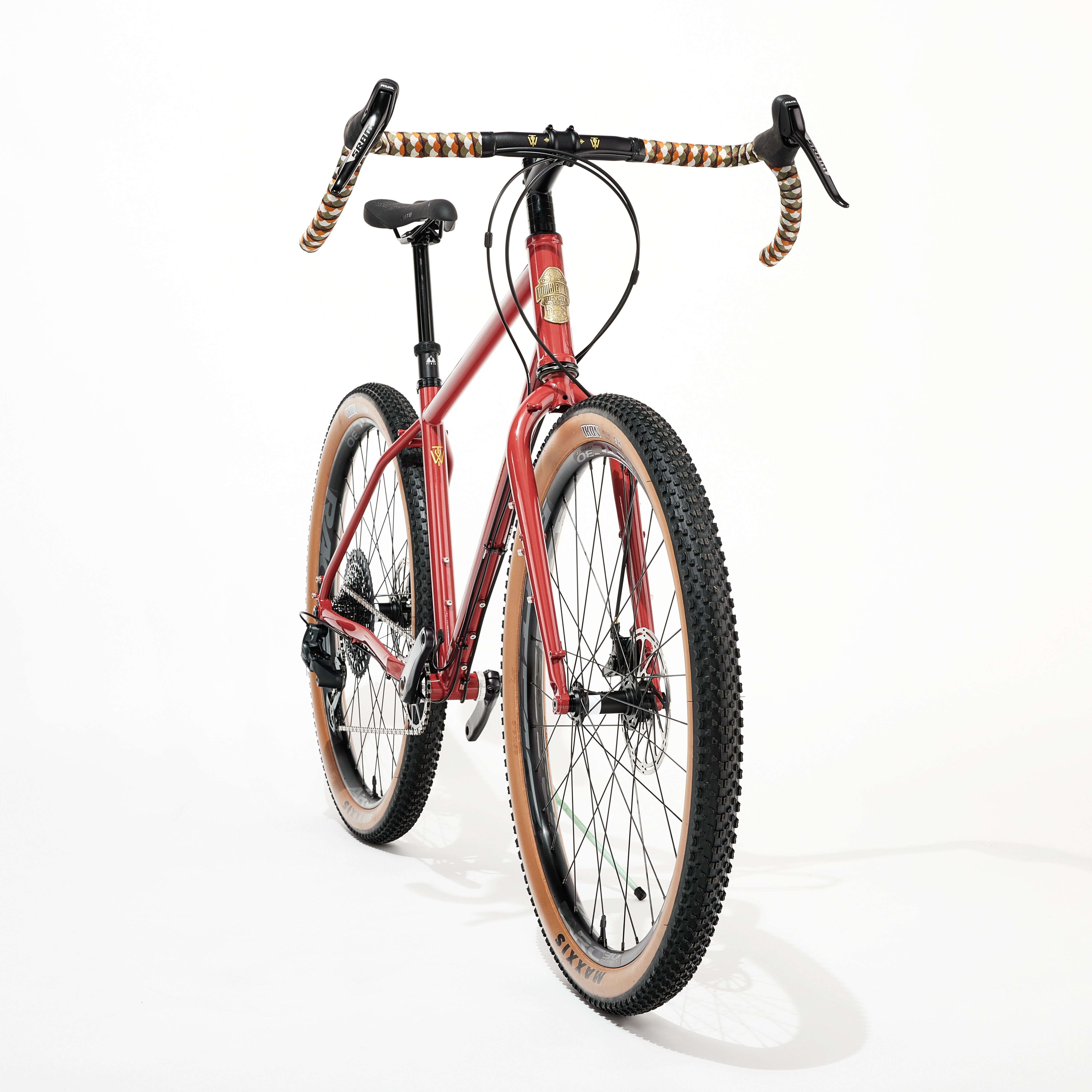

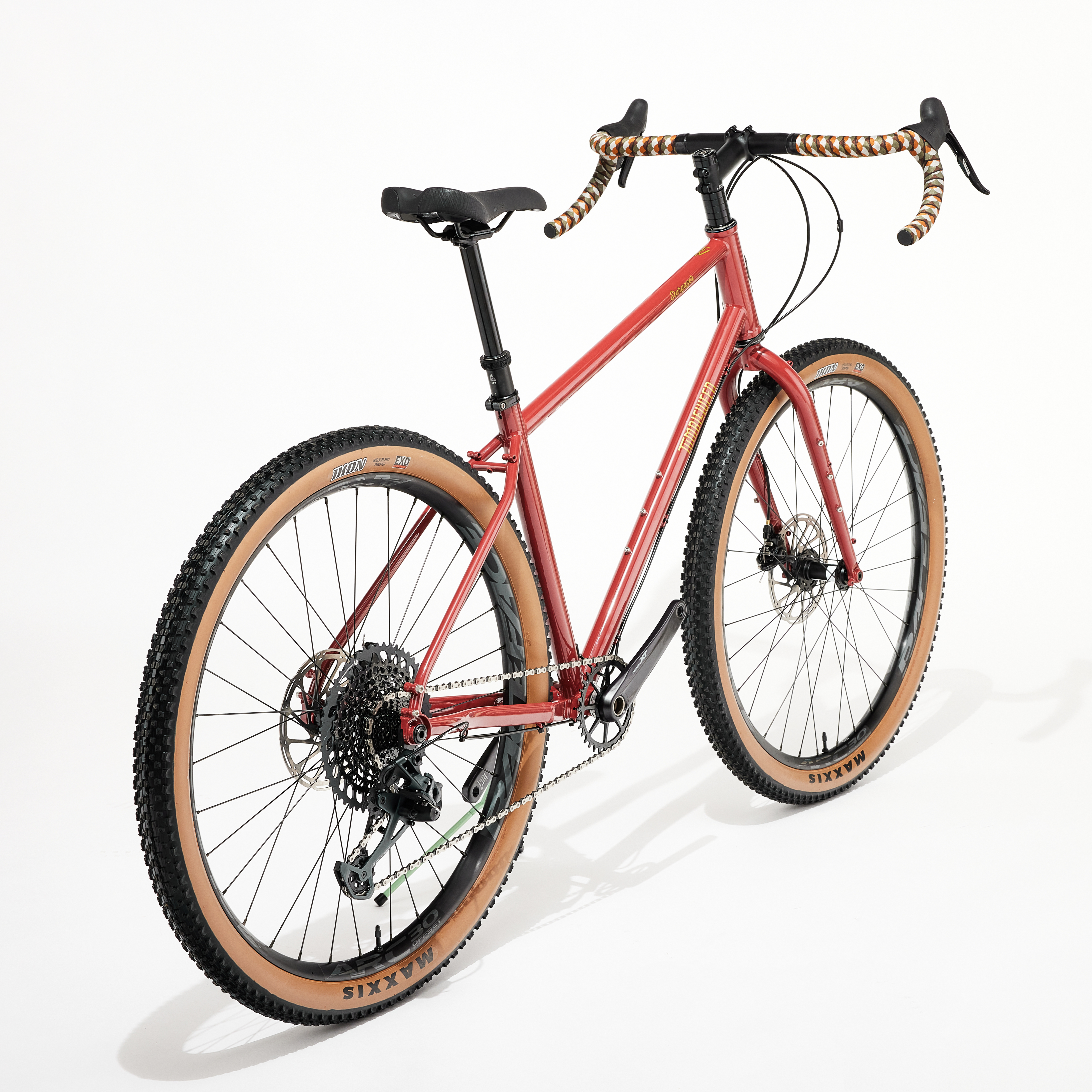

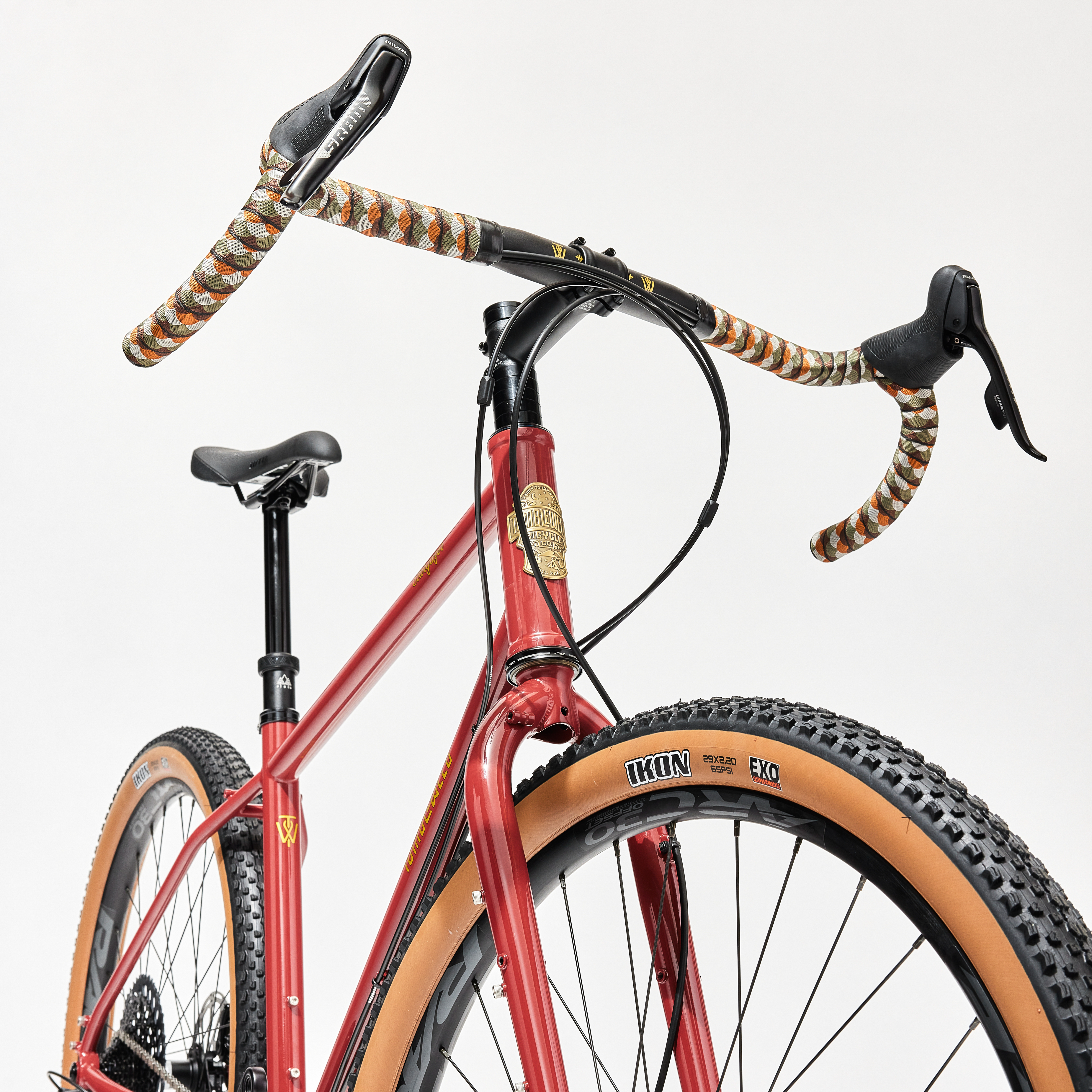

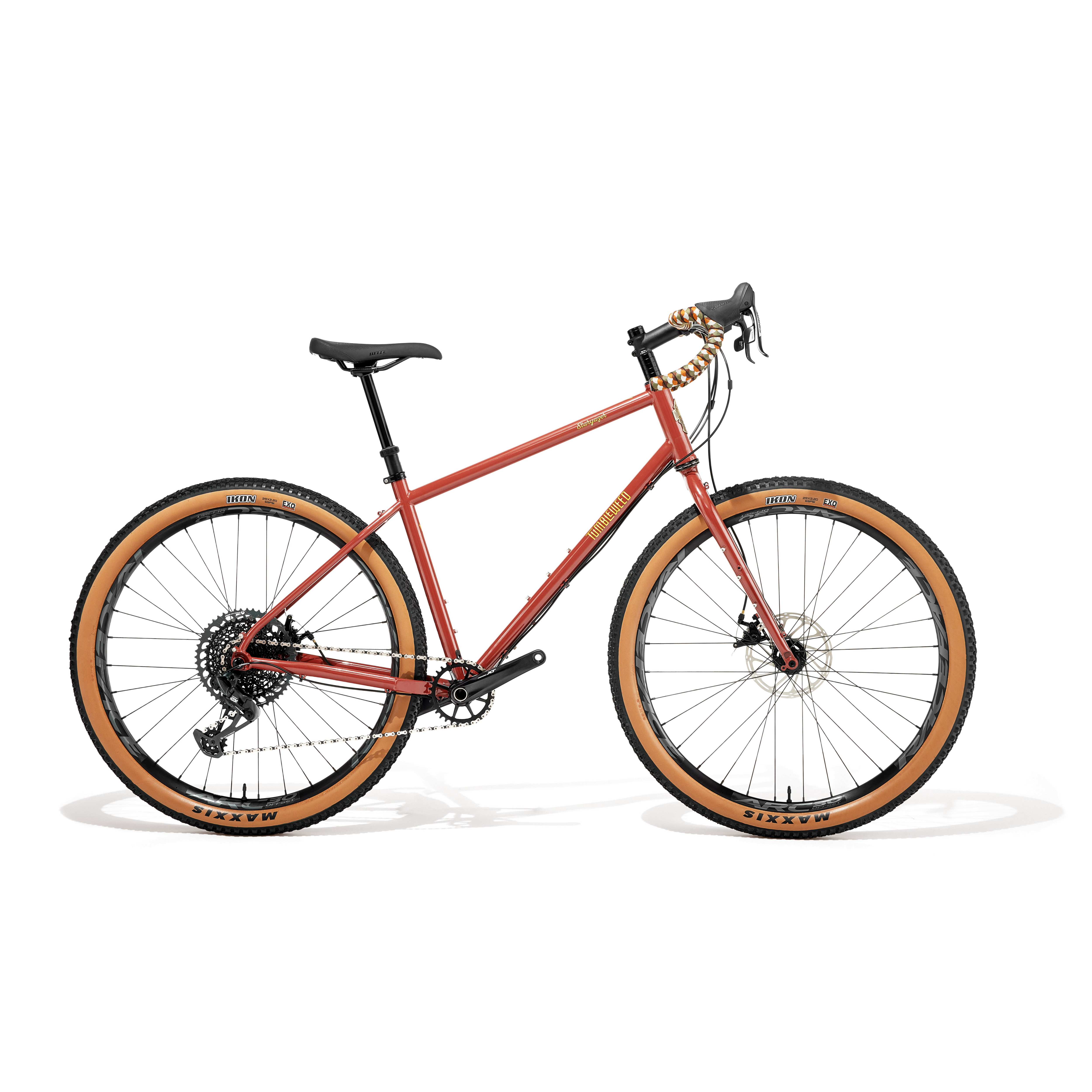

The Stargazer is our award-winning drop bar mountain touring bike designed for loaded off-road riding. It's at home on trails, singletrack and gravel roads whether unladen or with racks and bags on an adventure. The Stargazer a direct descendant of Tumbleweed’s first bike model, the Prospector, and shares much of the same tubing and mountain bike geometry, with a shorter reach to accommodate drop handlebars, and a lighter weight overall package. Our standard build combines a 12 speed SRAM Eagle wide range 10-52 tooth cassette and derailleur with SRAM Rival road shifters via a Ratio Technology 1x12 Wide Upgrade Kit, and the left shifter is modified to control actuation of the dropper seatpost.

What's New

We have made some small evolutionary updates to the Stargazer for Gen 2. These include two new colors, a "Light Brick" red and "Steel Blue" which is a greenish blue, a 10mm longer effective top tube length across all sizes, a 31.6mm seatpost diameter and a UDH dropout. Our complete built does not utilize a T type drivetrain, the UDH is simply for wider availability of spare hangers. Our previous generation of derailleur hangers will remain available and are still an excellent design.

The Stargazer is built to be a capable, confidence-inspiring bike that covers a wide range of terrain and is optimized for bikepacking and off road touring.

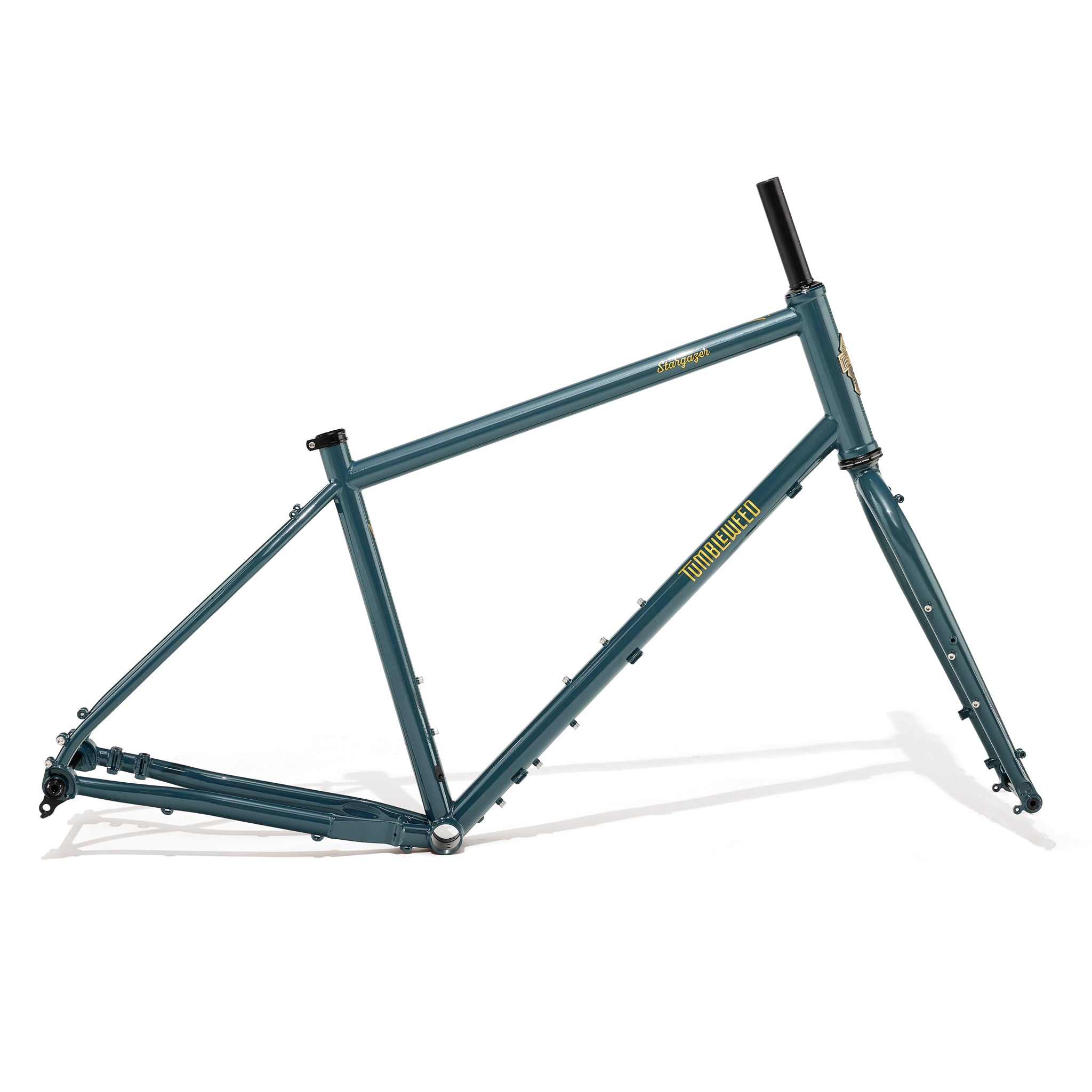

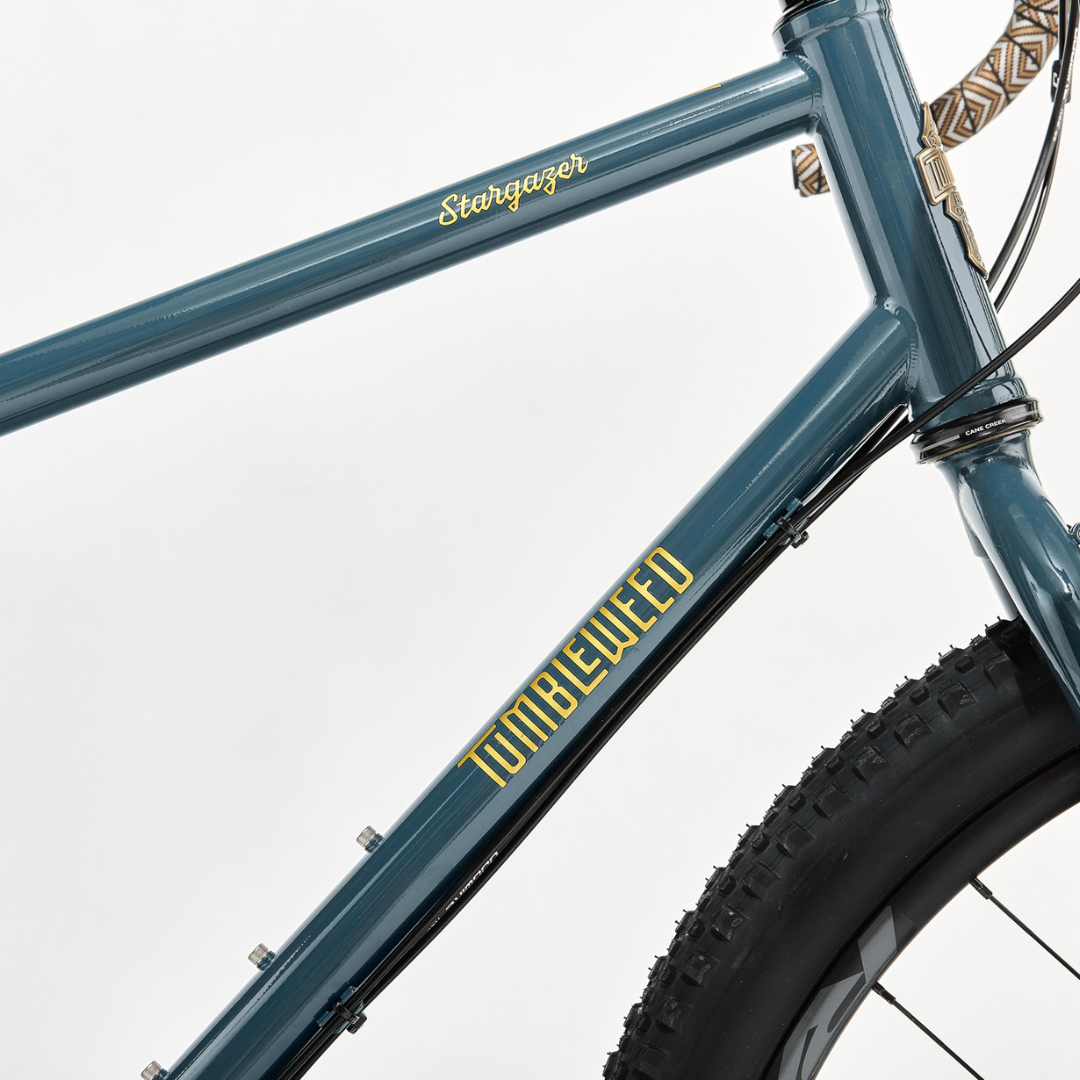

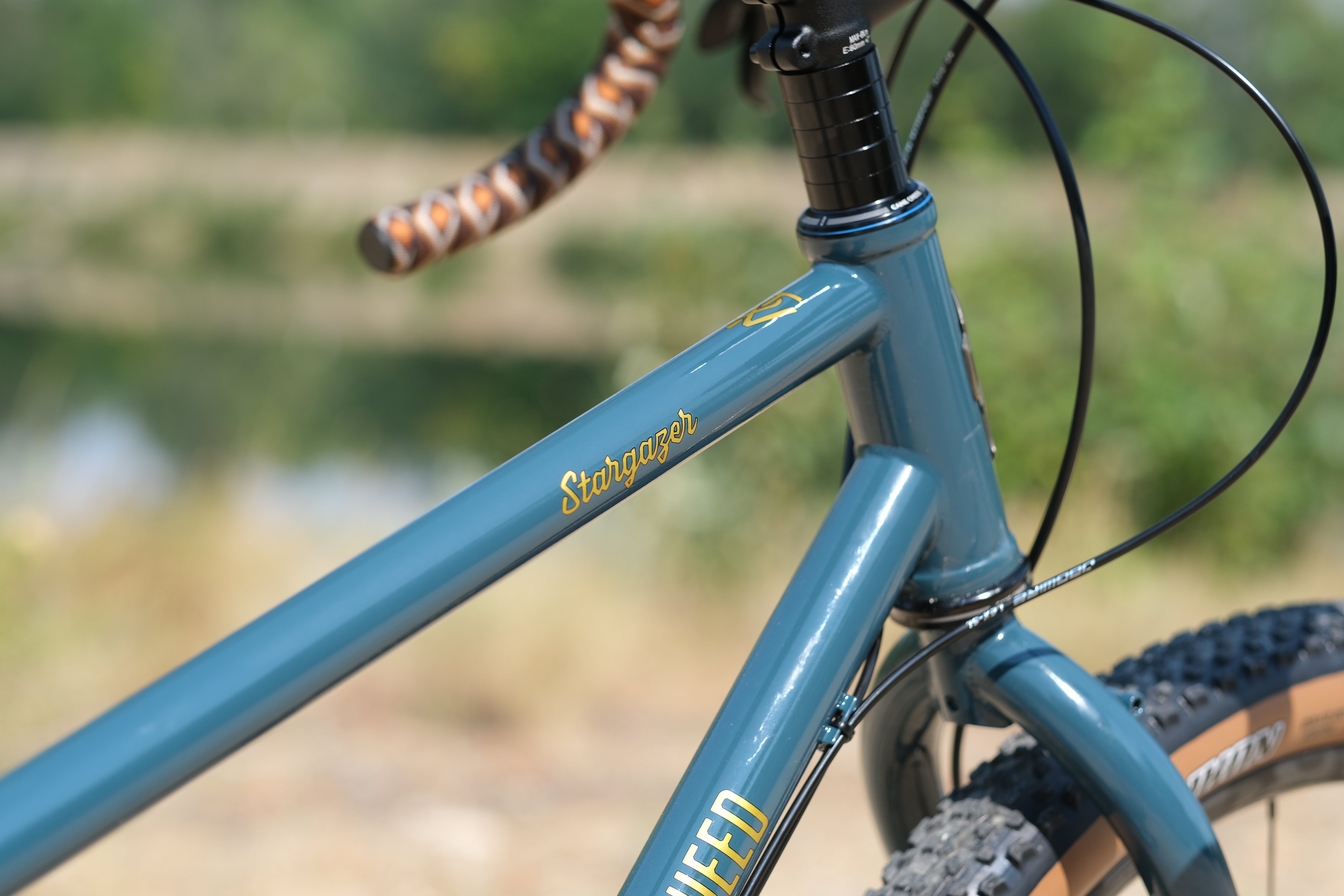

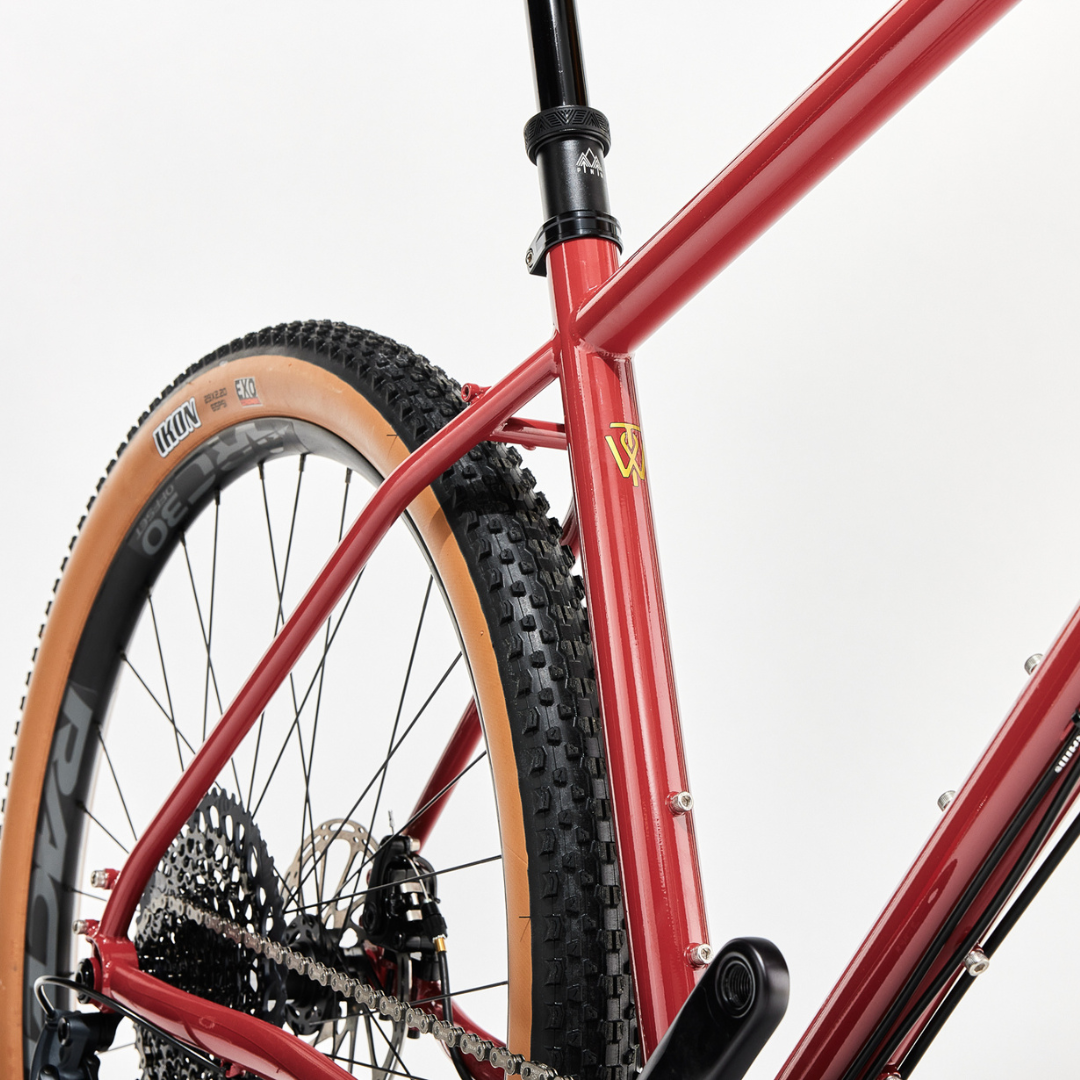

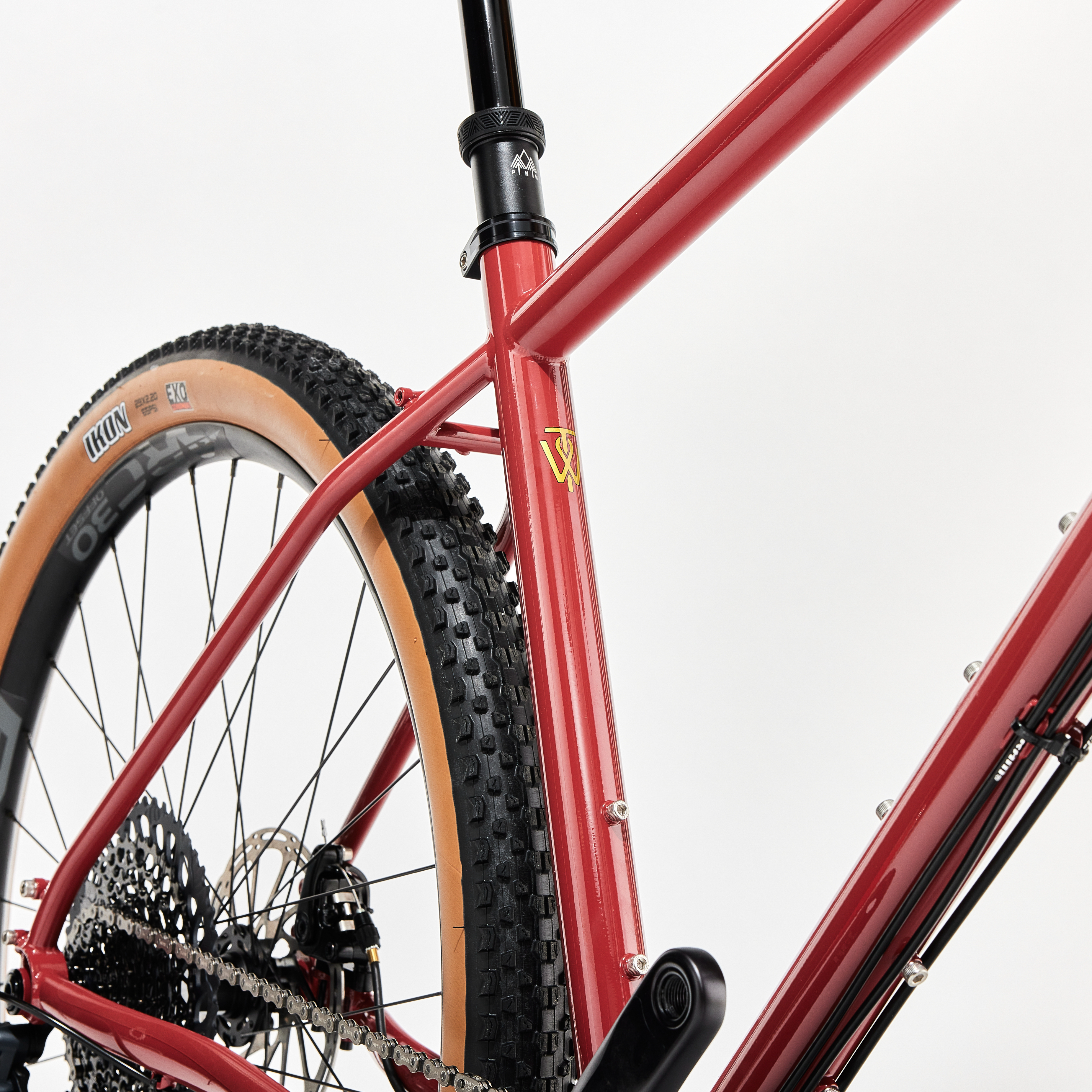

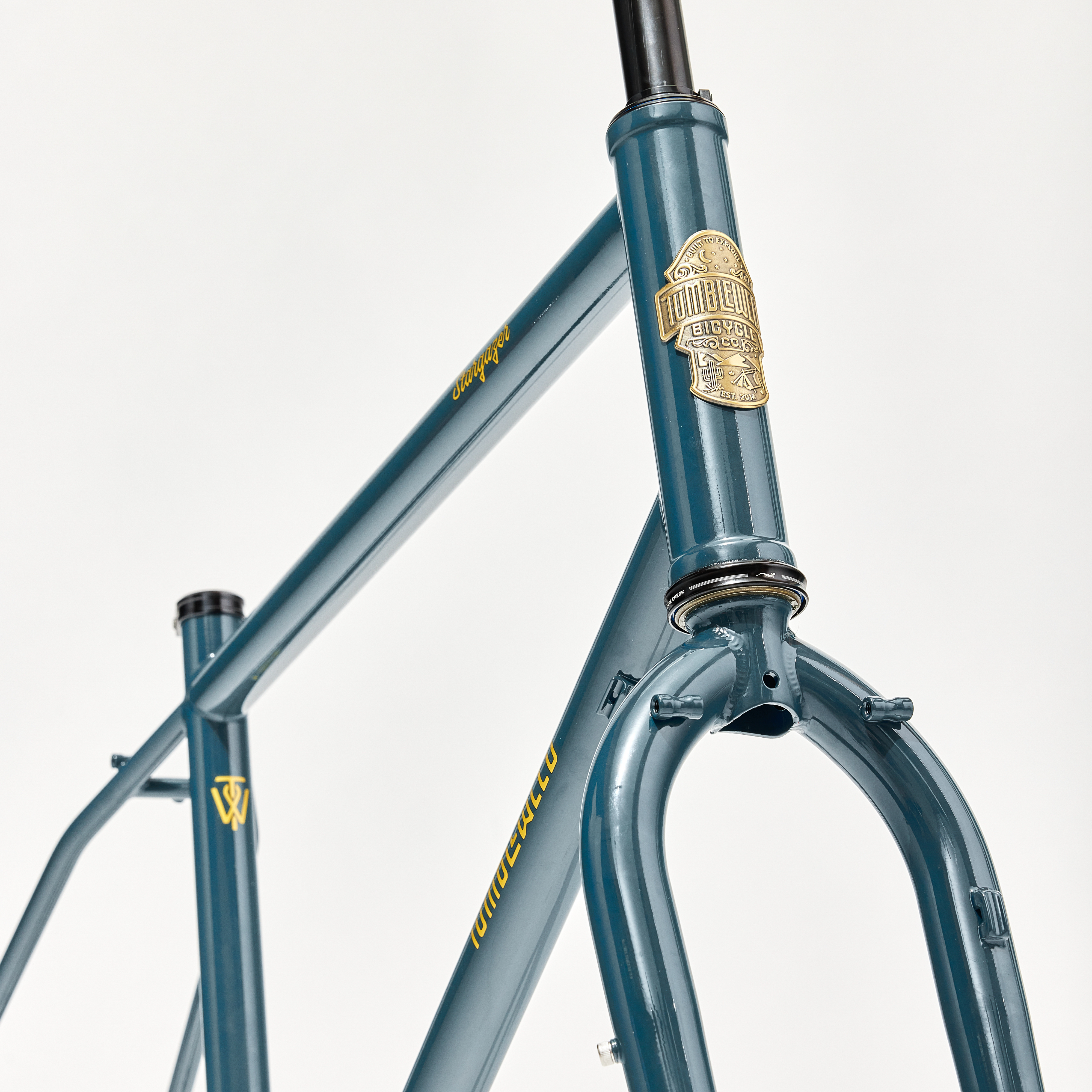

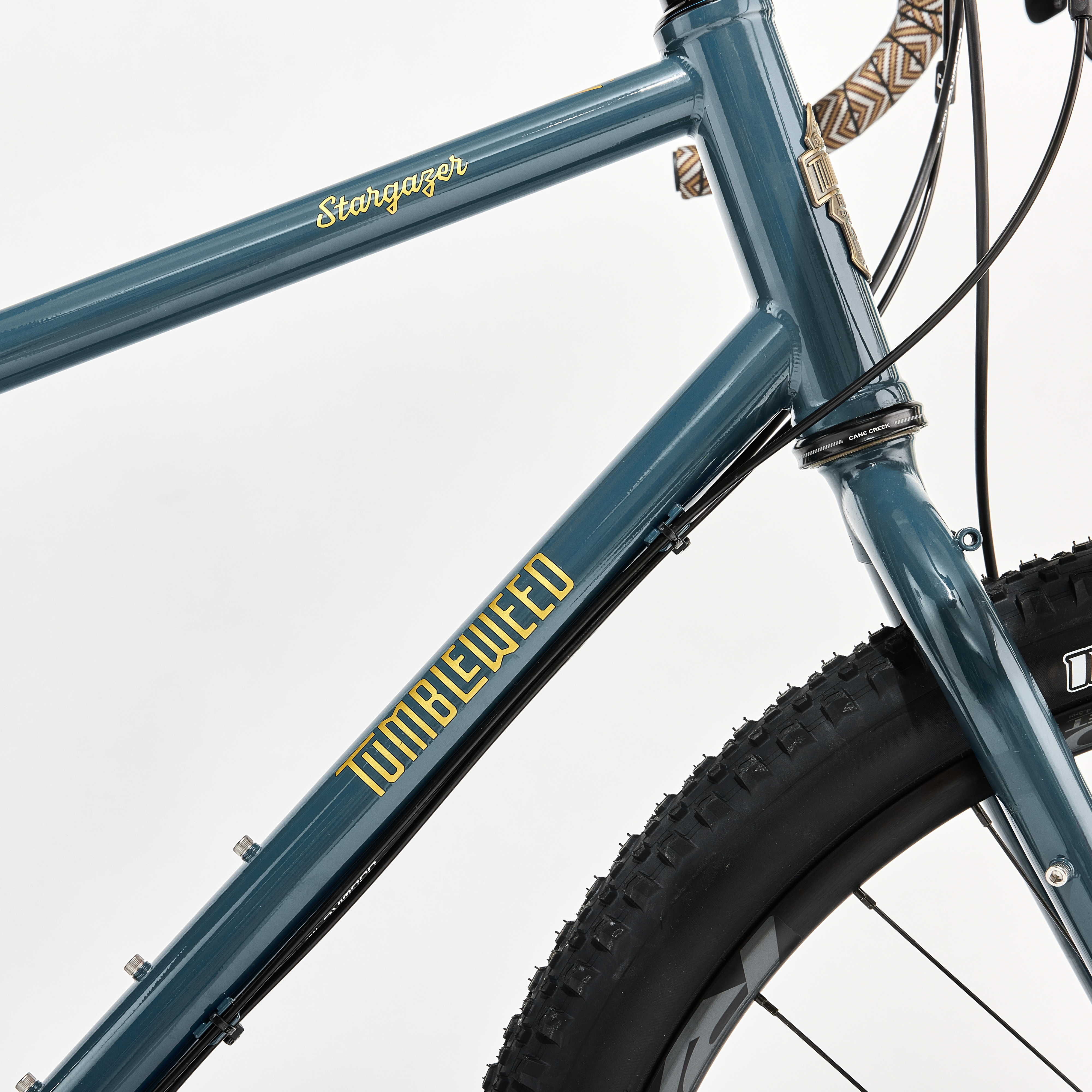

The Stargazer features a high-end oversized, fully heat treated multi-butted Chromoly steel tubeset with integrated gussets at the headtube, and a CNC machined chainstay yoke with clearance for 29x2.6” or 27.5x3.0” tires.

Complete Bike Purchase Process

We build complete bikes in the order that build specs are finalized. Our standard build with the parts list as shown is $4150 USD, we use this as a starting point for your build, and since we custom assemble each bike from the frame up including hand building all of our wheels, there is a wide range of changes that can be made to our standard spec.

Once you place your order, we put your name on the frame/fork and reach out to start confirming the final spec for your bike. Once we have finalized the build spec, we send over an invoice for the final balance due if there are any upgrades from the standard spec. Once the final invoice is paid, your build sheet goes into our build queue and we begin ordering any necessary parts for your bike. Our goal is to have your bike completed and ready to ship within 4 weeks from the time you pay your final invoice, although there can sometimes be unforeseen delays if a component is out of stock from the manufacturer, etc.

We build your wheels, completely assemble your bike, test ride it multiple times and double check all adjustments before packing it for shipment. When you receive your bike, we recommend taking it to a professional mechanic for reassembly, it will be very straightforward for a shop to assemble.

Specifications

Frame Material

Heat treated size specific Chromoly tubing, oversized triple and quad butted front triangle with integrated gussets

Rack/Fender Compatibility

Rack and fender compatible, three bottle mounts on frame triangle

Fork

Unicrown Chromoly steel with 110x15mm thru axle (thru axle included), upper and lower rack mounts, fender mounts, triple bottle cage mounts on fork legs, internal dynamo wire routing

Max Tire Clearance

29x2.5"/27.5x3.0"

Headtube

44mm I.D.

Headset

ZS44 upper, EC44 lower

Bottom Bracket

73mm BSA threaded

Rear Axle (Included)

148x12mm Boost

Seatpost Diameter

31.6mm

Dropper Seatpost Compatibility

Internally routed for dropper post

Seat Clamp (included)

34.9mm

Drivetrain Compatibility

1x drivetrain specific, UDH dropout, not designed to accomodate front derailleur

Brake Compatibility

160/180mm flat mount front and rear

Fork Axle to Crown

440mm

Fork Steer Tube Length

350mm

Chainring Clearance

1X Boost, 38 tooth max

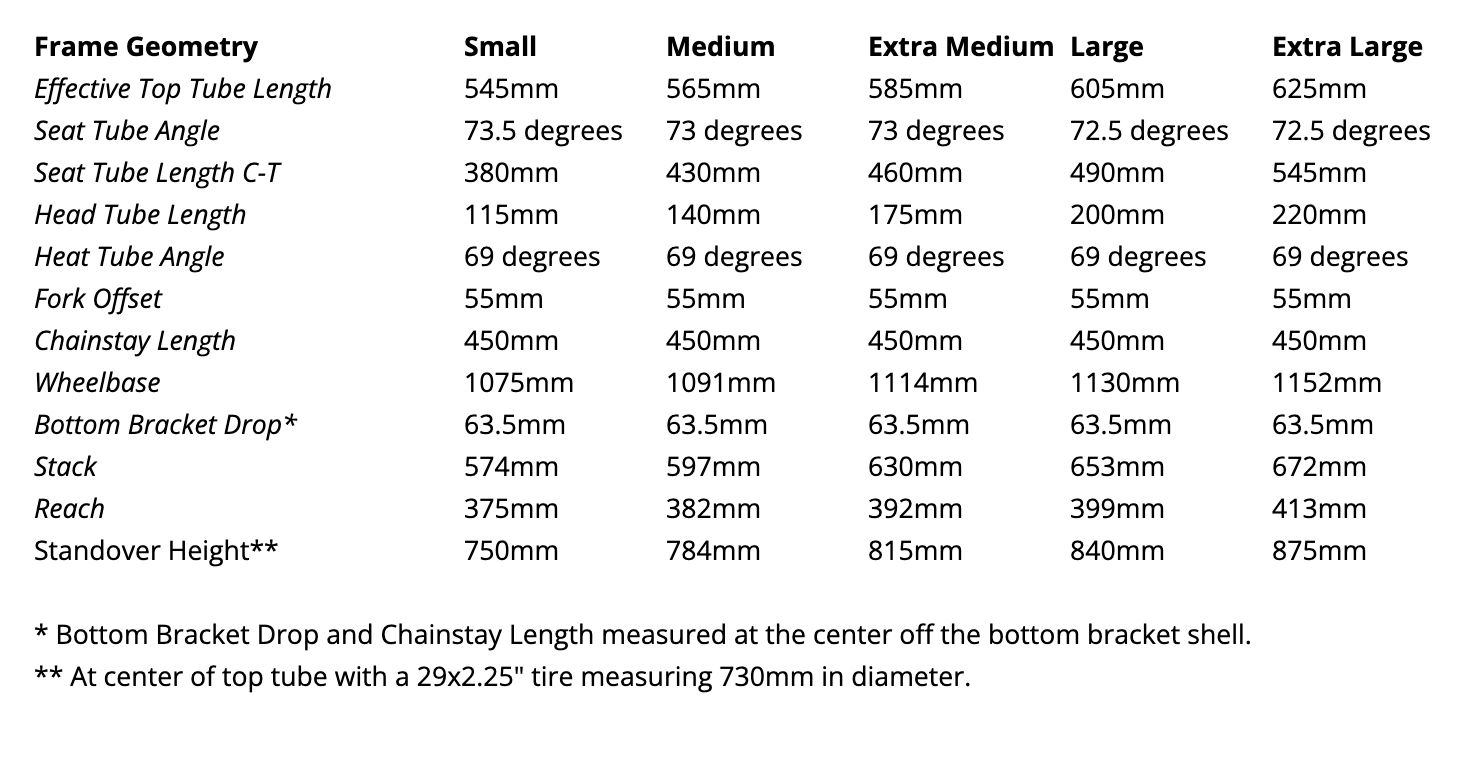

Frame Geometry

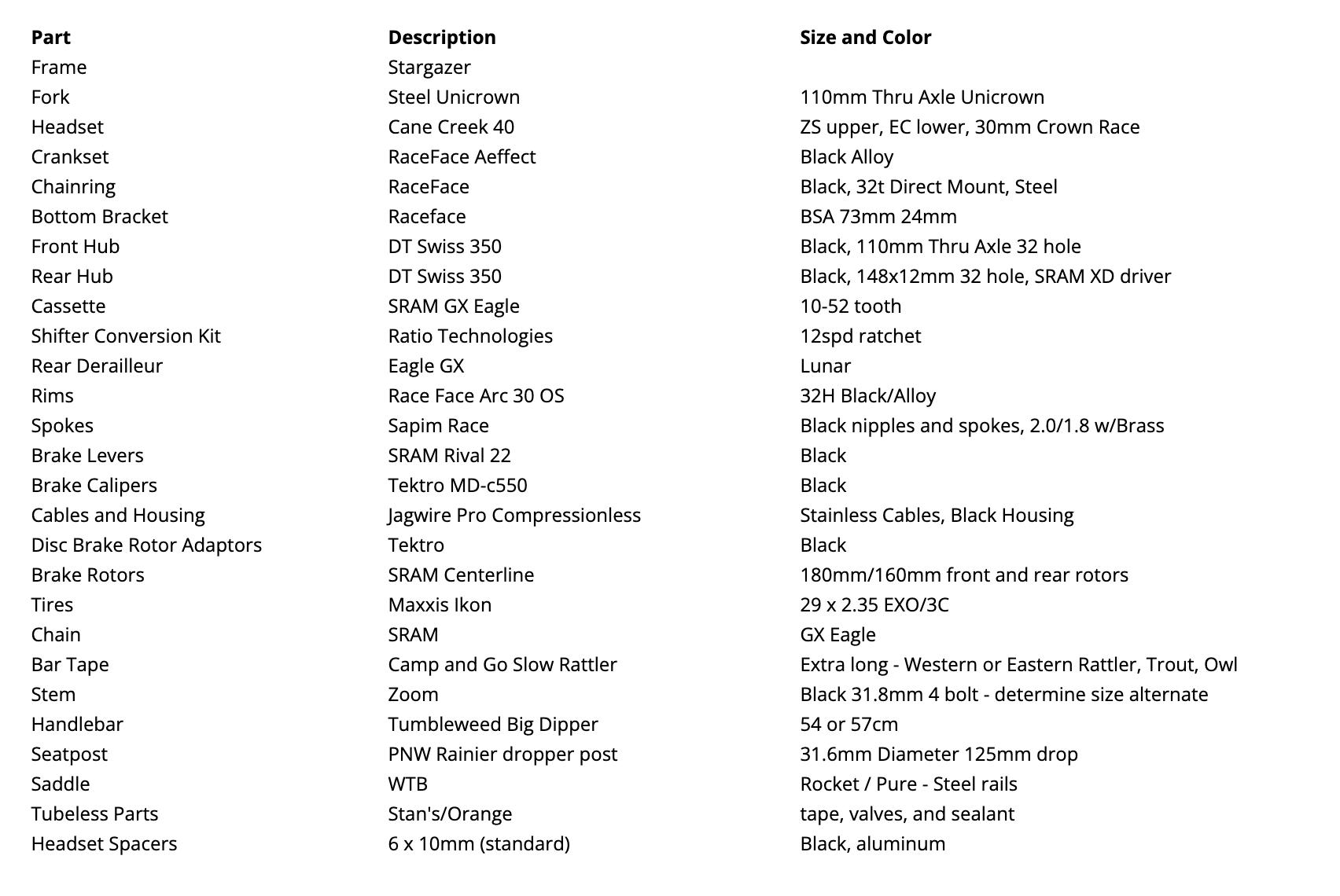

Full Bike Spec

Tumbleweed Stargazer Gen 2 Standard Build

(Parts subject to change based on availability)
