Frame and Fork

Most sizes and colors of Stargazer frames are in stock now, complete build lead time is around 4 weeks. Bone and Starry Night are not going to be restocked, so get them while you can.

Frame colors: Bone is a creamy off white, Starry Night is dark grey with gold sparkles, Midnight Sparkle is dark blue with gold sparkles.

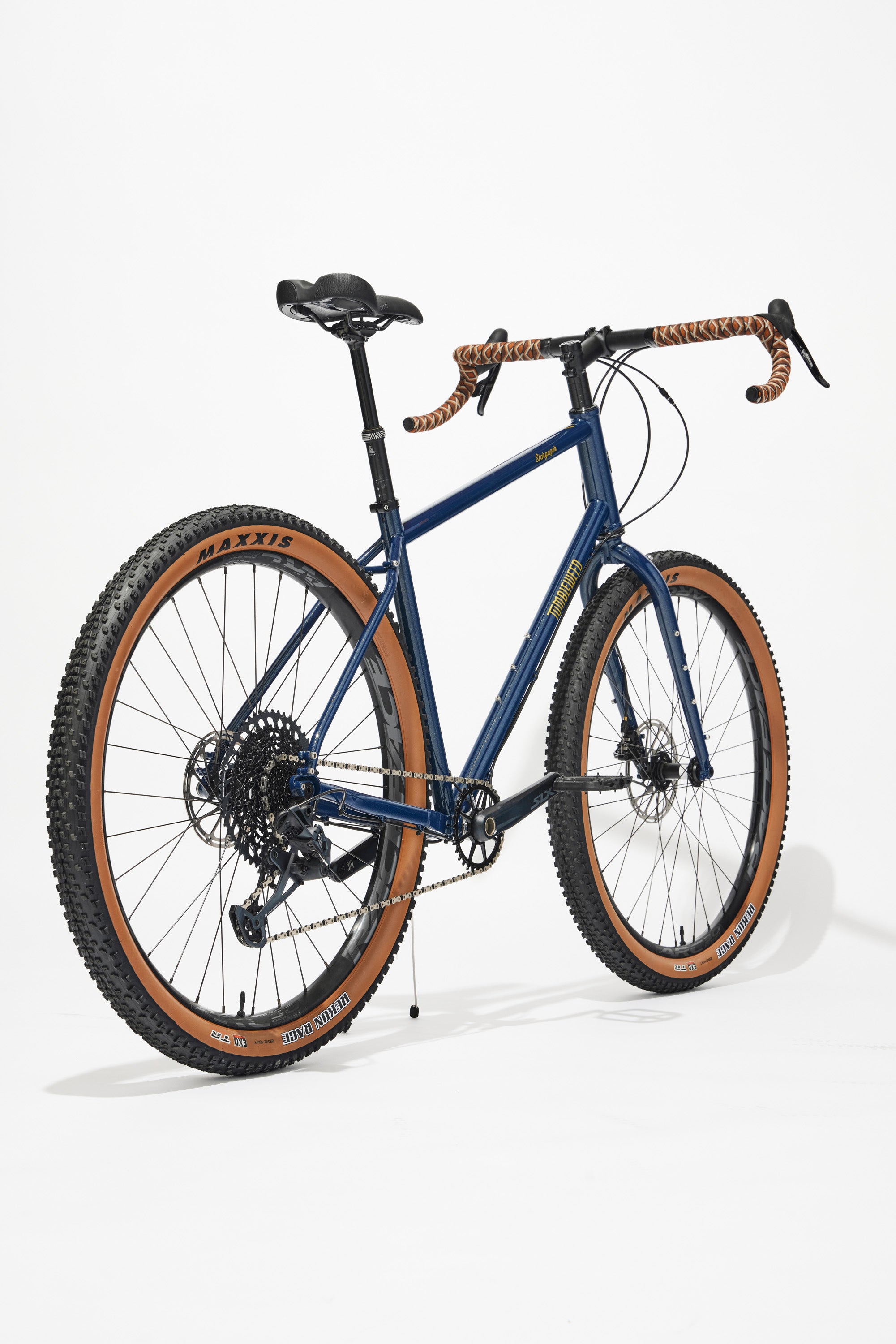

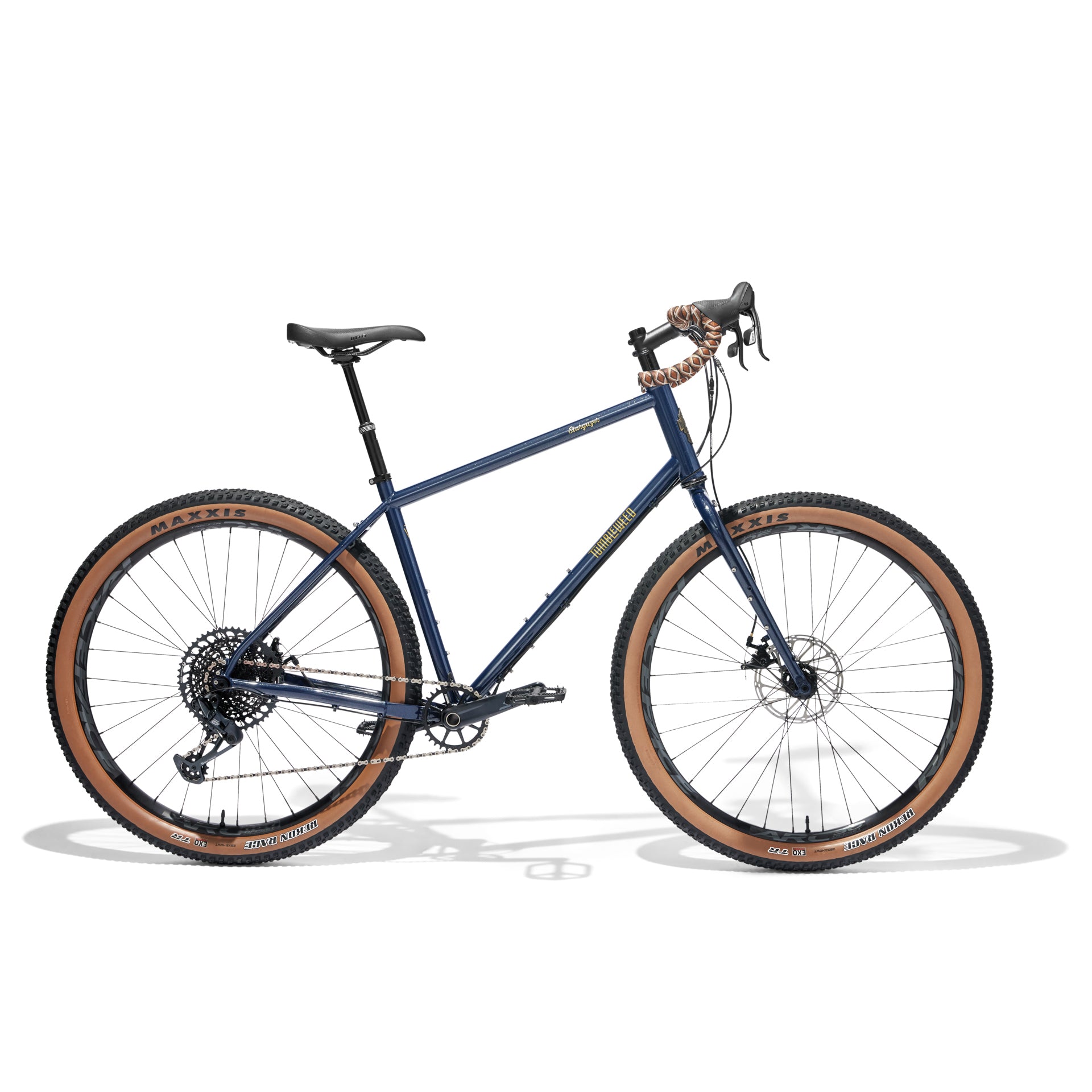

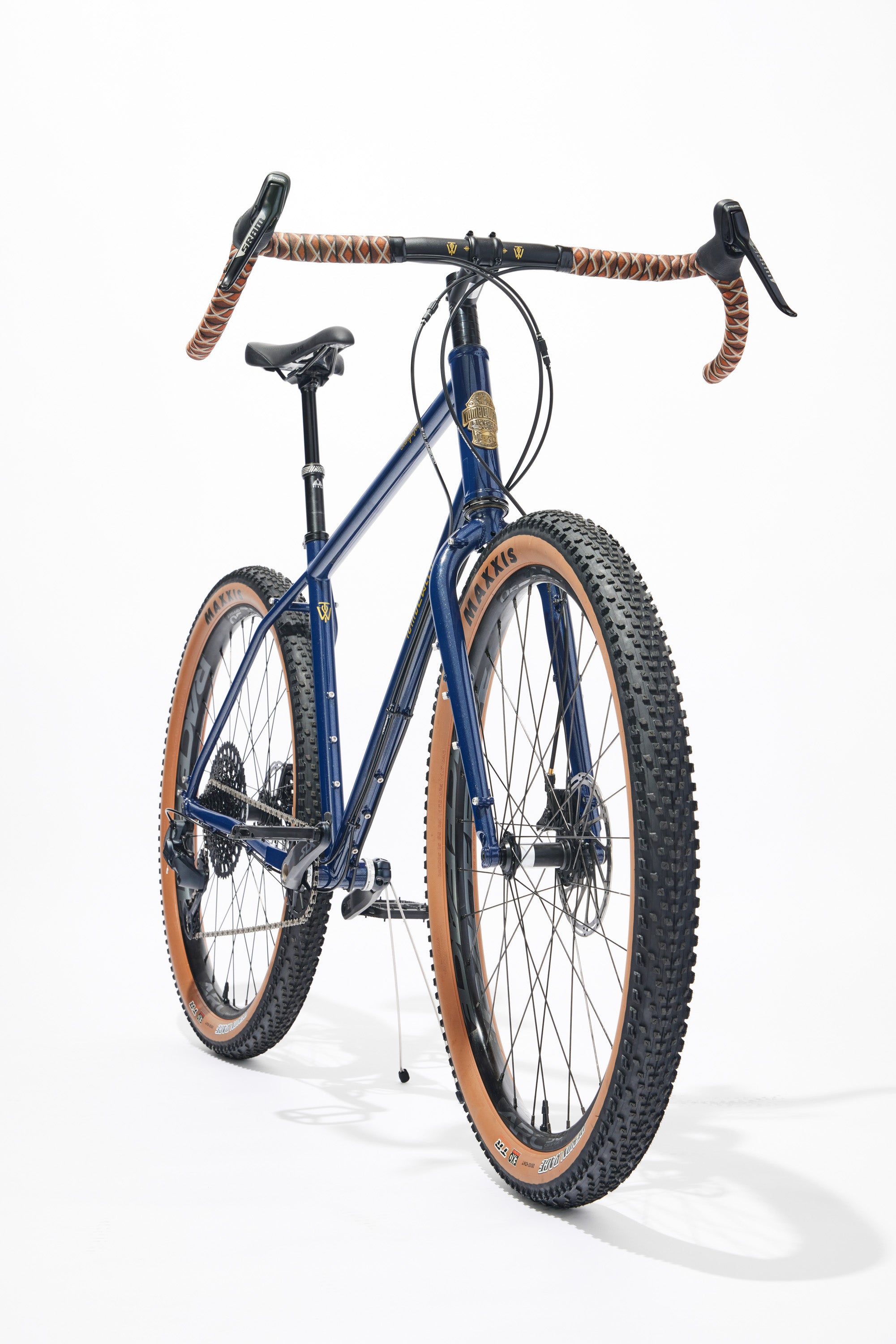

The Stargazer is a nimble and balanced drop bar mountain touring bike designed for loaded trail riding. It's at home on trails, singletrack and gravel roads whether unladen or with racks and bags on an adventure. The Stargazer a direct descendant of Tumbleweed’s first bike model, the Prospector, and shares much of the same tubing and mountain bike geometry, with a shorter reach to accommodate drop handlebars, and a lighter weight overall package. Our standard build combines a 12 speed SRAM Eagle wide range 10-52 tooth cassette and derailleur with SRAM Rival road shifters via a Ratio Technology 1x12 Wide Upgrade Kit, and the left shifter is modified to control actuation of the dropper seatpost.

The Stargazer is built to be a fun, confidence inspiring bike that covers a wide range of terrain and is optimized for bikepacking and off road touring.

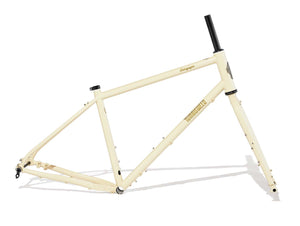

The Stargazer features a high-end fully heat treated multi-butted Chromoly steel tubeset with integrated gussets at the headtube, and a CNC machined chainstay yoke with clearance for 29x2.6” or 27.5x3.0” tires.

Complete Bike Purchase Process

We build complete bikes in the order that build specs are finalized. Our standard build with the parts list as shown is $3875  USD, we use this as a starting point for your build, and since we custom assemble each bike from the frame up including hand building all of our wheels, there is a wide range of changes that can be made to our standard spec.

Once you place your complete bike deposit, we put your name on the frame/fork and reach out to start confirming the final spec for your bike. Once we have finalized the build spec, we send over an invoice for the final balance due. Once the final invoice is paid, your build sheet goes into our build queue and we begin ordering any necessary parts for your bike. Our goal is to have your bike completed and ready to ship within 4 weeks from the time you pay your final invoice, although there can sometimes be unforeseen delays if a component is out of stock from the manufacturer, etc.

We build your wheels, completely assemble your bike, test ride it multiple times and double check all adjustments before packing it for shipment. When you receive your bike, we recommend taking it to a professional mechanic for reassembly, it will be very straightforward for a shop to assemble.

Reviews
Frame Material Heat treated size specific Chromoly tubing, oversized triple and quad butted front triangle with integrated gussets
Rack/Fender Compatibility Rack and fender compatible, three bottle mounts on frame triangle
Fork Unicrown Chromoly steel with 110x15mm thru axle (thru axle included), upper and lower rack mounts, fender mounts, triple bottle cage mounts on fork legs, internal dynamo wire routing
Max Tire Clearance 29x2.6"/27.5x3.0"
Headtube 44mm I.D.
Headset ZS44 upper, EC44 lower
Bottom Bracket 73mm BSA threaded
Rear Axle (Included) 148x12mm Boost
Seatpost Diameter 27.2mm
Dropper Seatpost Compatibility Internally routed for dropper post
Seat Clamp (included) 32mm
Drivetrain Compatibility 1x drivetrain specific, not designed to accomodate front derailleur
Brake Compatibility 160/180mm flat mount front and rear
Fork Axle to Crown 440mm
Fork Steer Tube Length 350mm
Chainring Clearance 1X Boost, 38 tooth max
Frame Geometry Small Medium Extra Medium Large Extra Large
Effective Top Tube Length535mm555mm575mm595mm615mm
Seat Tube Angle73.5 degrees73 degrees73 degrees72.5 degrees72.5 degrees
Seat Tube Length C-T380mm430mm460mm490mm545mm
Head Tube Length115mm140mm175mm200mm220mm
Head Tube Angle69 degrees69 degrees69 degrees69 degrees69 degrees
Fork Offset55mm55mm55mm55mm55mm
Chainstay Length450mm450mm450mm450mm450mm
Bottom Bracket Drop63.5mm63.5mm63.5mm63.5mm63.5mm
Stack574mm597mm630mm653mm680mm
Reach365mm372mm382mm389mm403mm
Standover Height*750mm784mm815mm840mm875mm
* At center of top tube with a 29x2.25" tire measuring 730mm in diameter.
Tumbleweed Stargazer Standard Build
(Parts subject to change based on availability)
Part Description
FrameStargazerStarry Night or Bone
ForkSteel Unicrown110mm Thru Axle Unicrown
HeadsetCane Creek 40ZS upper, EC lower, 30mm Crown Race
CranksetRaceFace AeffectBlack, Cinch Direct Mount
ChainringRaceFaceBlack, 32t Direct Mount, Steel
Bottom BracketRaceFaceBSA Threaded
Front HubDT Swiss 350Black, 110mm Thru Axle 32 hole
Rear HubDT Swiss 350Black, 148x12mm 32 hole, SRAM XD driver
CassetteSRAM GX Eagle10-52 tooth
Shifter Conversion KitRatio Technologies
Rear DerailleurSRAM GX EagleLunar
RimsRaceFaceArc 30 Offset
SpokesSapim RaceBlack 2.0/1.8 w/Brass nipples
Brake LeversSRAM Rival 22Black
Brake CalipersTektro MD-c550Black
Cables and HousingJagwire Pro CompressionlessStainless Cables, Black Housing
Disc Brake Rotor AdaptorsTektro
Brake RotorsSRAM Centerline180mm front, 160mm rear
TiresMaxxis Ikon29x2.35 EXO 3C TR
ChainSRAMGX Eagle
Bar TapeCamp and Go Slow Rattlerextra long
StemZoomBlack 31.8mm 4 bolt
HandlebarPNW Coast52cm Black
SeatpostPNW Rainier dropper postBlack, 27.2mm Diameter, 125mm travel
SaddleWTB Pure Black, Steel Rails
Tubeless Parts Tubeless Sealant, Valves and Tape
Headset Spacers Black, Aluminum
How can I run 11 speed SRAM road shifters with a 12 speed SRAM Eagle drivetrain?
A company called Ratio Technologies produces a kit that converts SRAM 11 speed road shifters to work seamlessly with 12 speed mountain derailleurs, we use their kit on our complete builds.
Can I run flat bars on the Stargazer?
Yes, you'll just need to take into account that the frame has a reach that is optimized for drop bars, you'll likely need a long stem to run flat bars.
My flat mount brake adaptors only have the option for 140mm or 160mm, what setting do I use for the Stargazer?
For the rear brake,if you want to run 160mm rotors, mount the caliper directly to the brake mount. Use the 160mm rear brake adaptor to run 180mm rotors. For the front brake, use the 140mm setting on your adaptor for 160mm rotors, and the 160mm setting for 180mm rotors.

Performance and Comfort

The Stargazer blends the drop bar and mountain bike experience and takes the best parts of both. It combines the comfortable riding position of a gravel bike with the tire clearance and gear range of a mountain bike. It is great for people who want a versatile off road bike that can swap 27.5+ and 29” wheels, ride single track or dirt roads and take on bikepacking trips.

Advanced Chromoly Tubeset

Heat treated multi-butted Chromoly steel tubeset makes for a very strong and smooth riding frame. It is triple and quad butted oversized tubing and features internal gussets integrated at the headtube. All of this is done to create a strong frame at a reasonable weight.
