Sunliner
Tumbleweed’s newest adventure-ready bikepacking model
Over the last few years, we’ve been getting a lot of feedback about our bike model lineup from our customers. Some wanted a flat-bar expedition bike like the Prospector, but built around modern standards like boost thru axles and optimized for a wider range of drivetrains. Others loved the Stargazer but preferred riding with flat bars over drop bars.

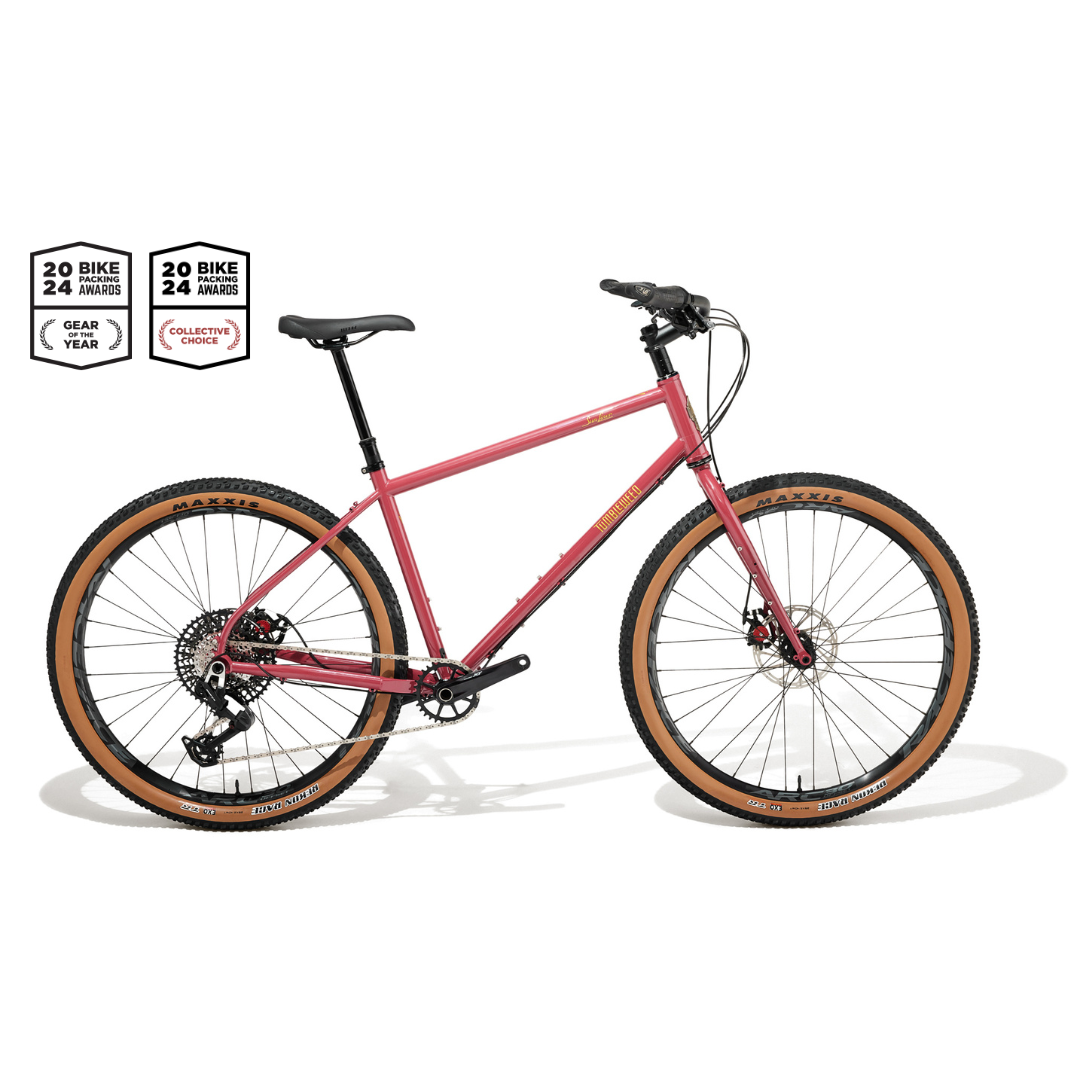

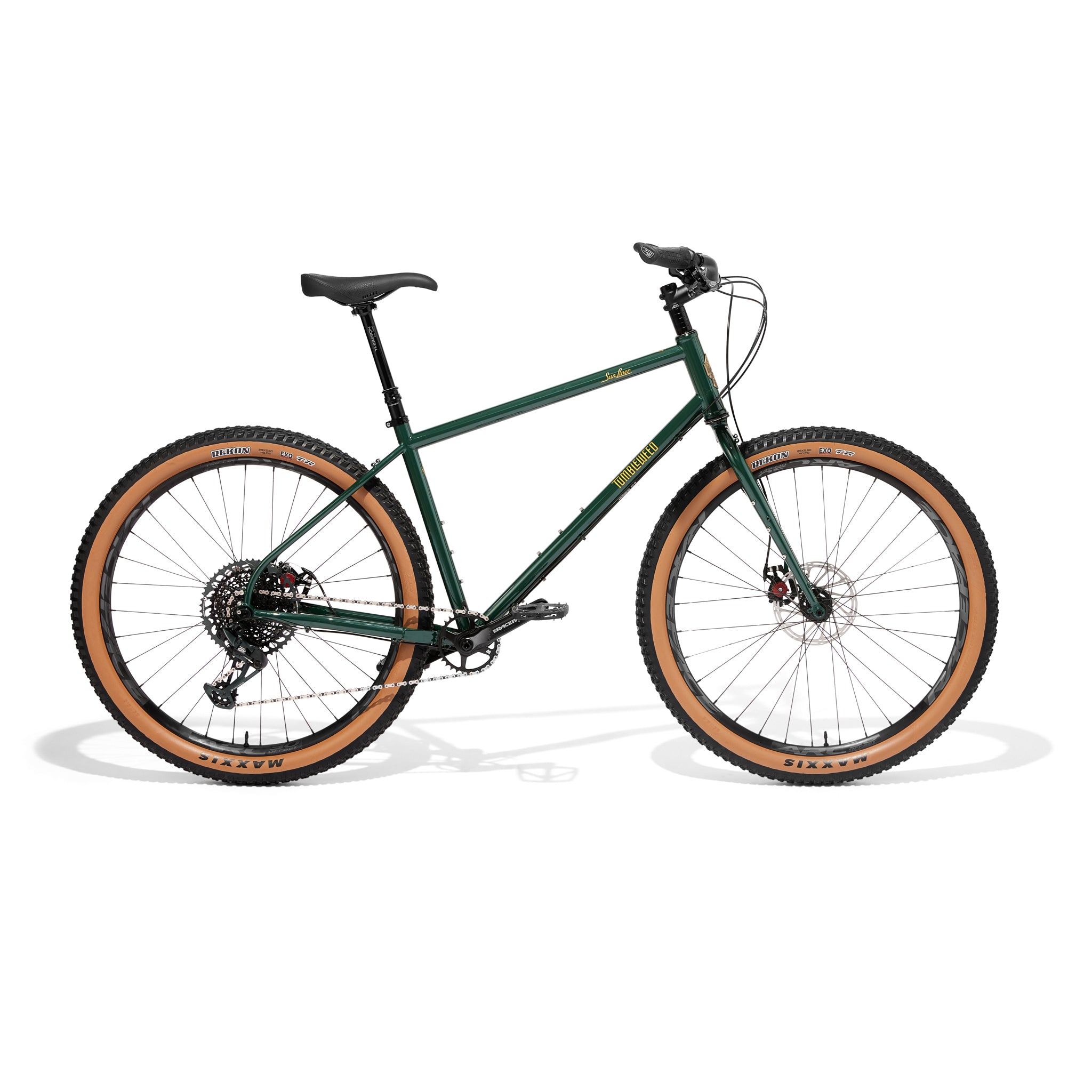

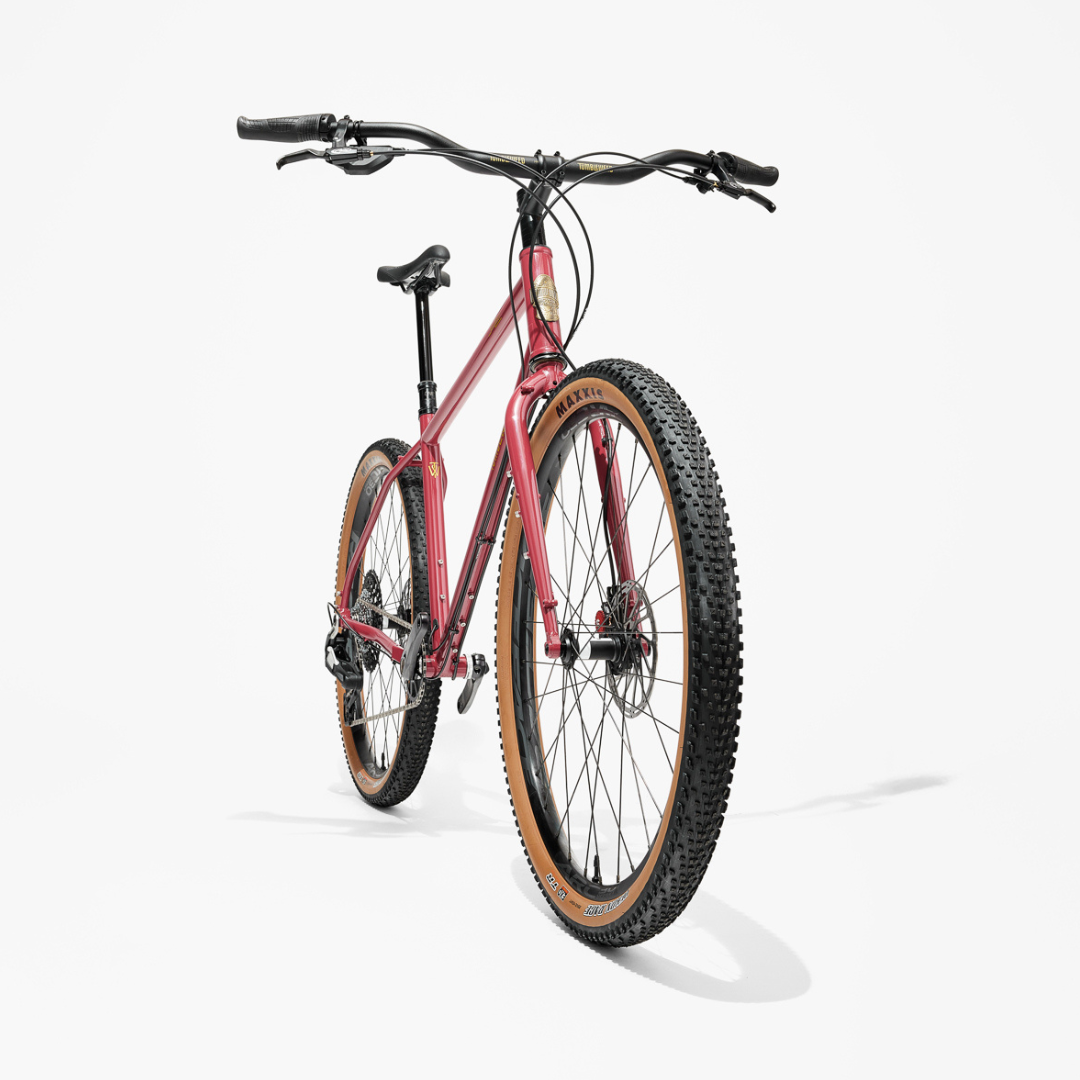

The result is Tumbleweed’s newest model, the Sunliner, a fully rigid mountain touring bike built with the same ultra high-end oversized chromoly steel tubeset and construction as the award-winning Stargazer, but with the longer reach from the Prospector, optimized for flat bars. It’s capable and comfortable, ready for unloaded trail riding with friends or an extended expedition to the most remote corners of the globe.
Standout specs:
- Up to 29x3” tire clearance
- Boost axle spacing
- Oversized, multi-butted and heat-treated chromoly steel tubing for maximum toughness and resilience
- Rack and fender mounts, triple bottle mounts on the fork and downtube
- Rigid specific upright geometry to maximize frame bag volume
- Flat or swept-back handlebars
The Sunliner features the same geometry and generous tire clearance as the Prospector, with the same rigid-specific touring bike design as the Stargazer, for simplicity and reliability on the trail. It offers fun, adventure-ready performance that makes you want to take the long way home.

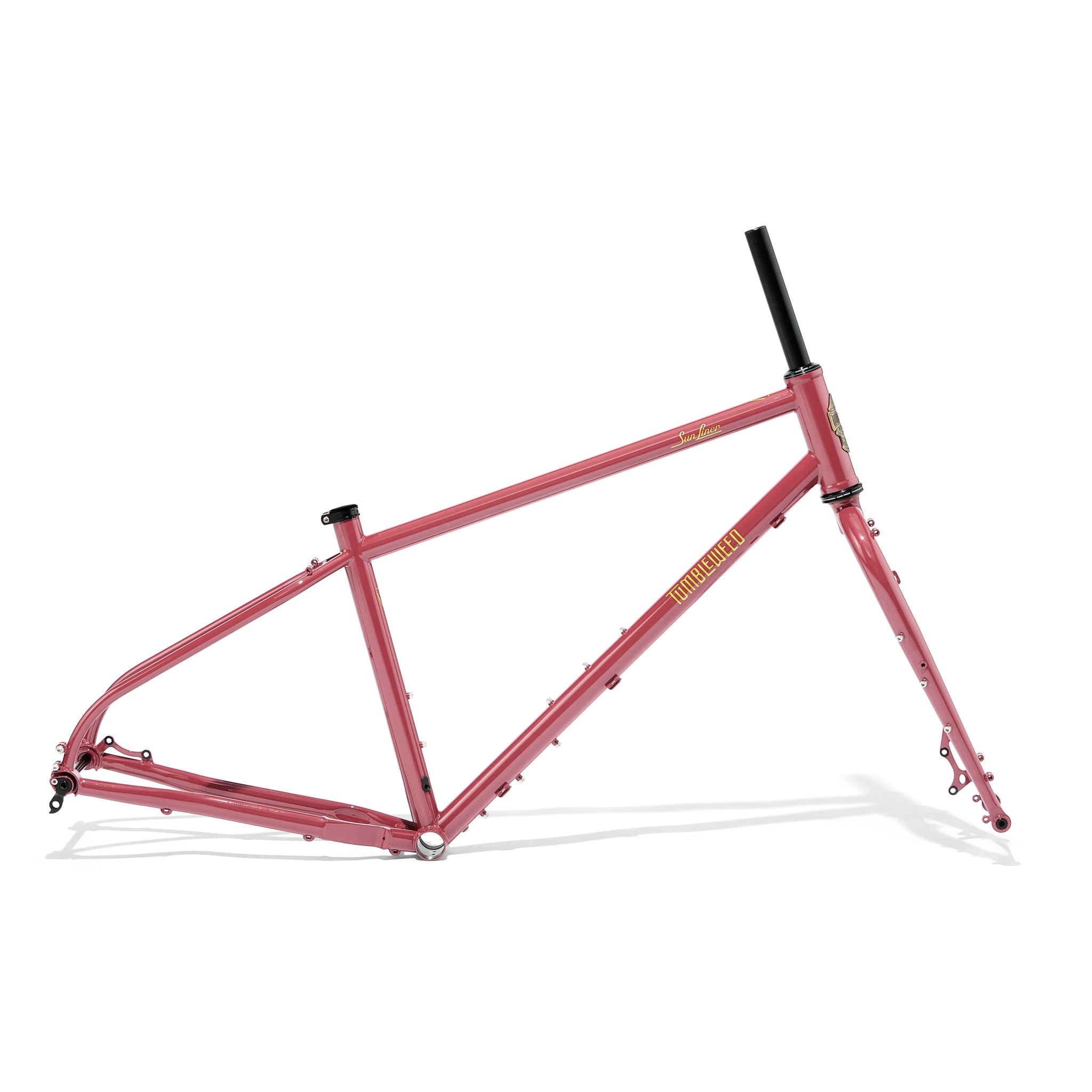

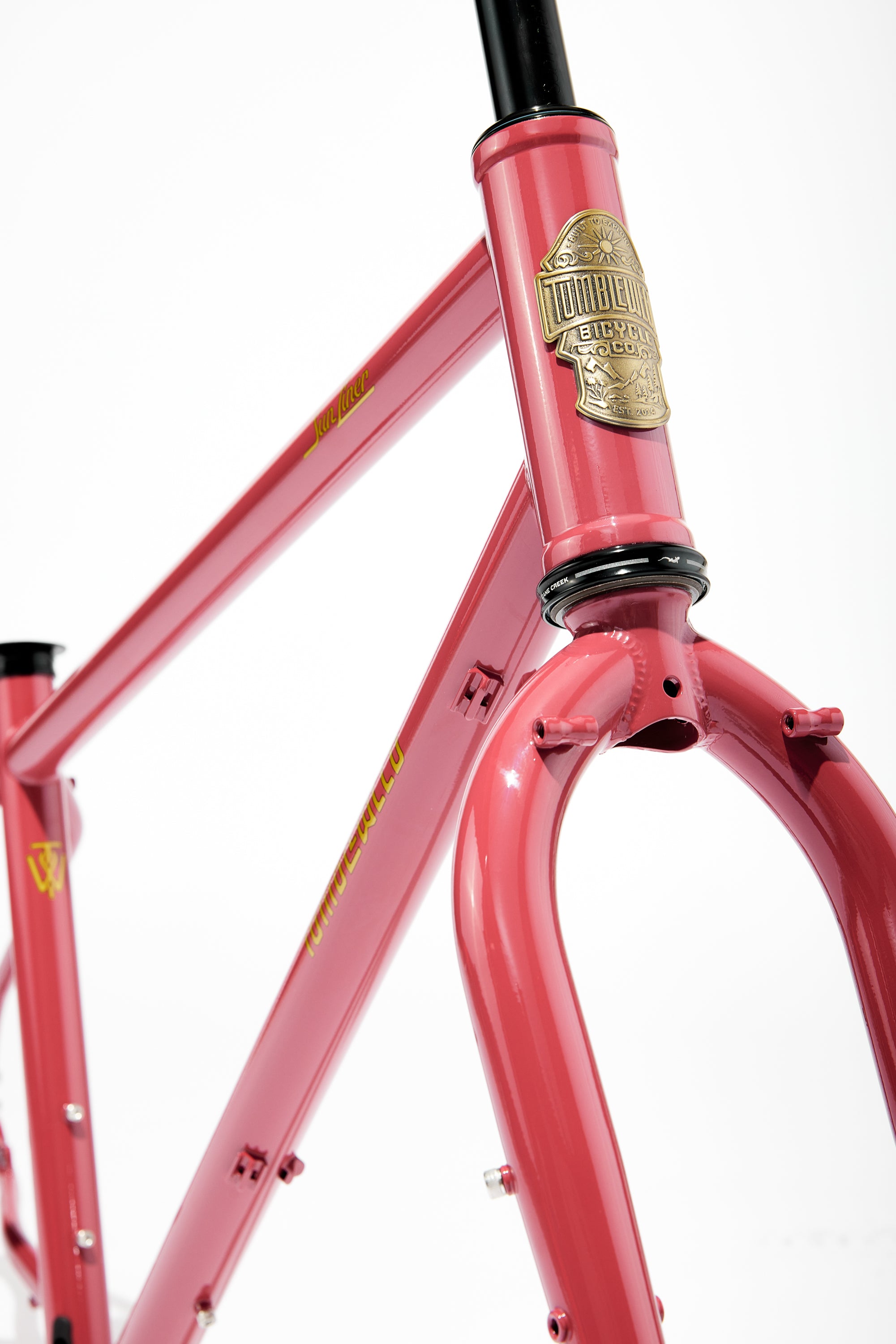

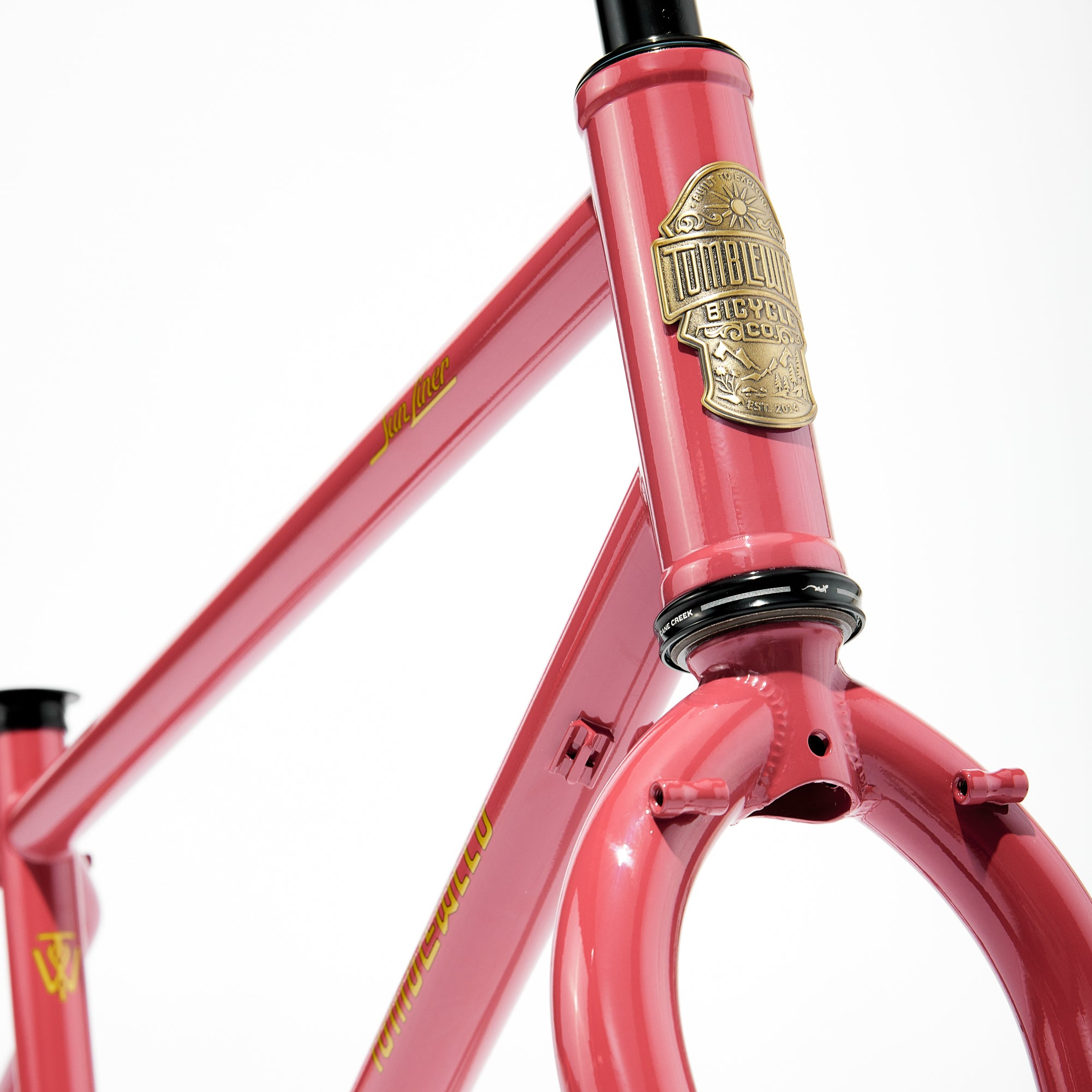

The Sunliner’s non-suspension corrected fork design creates a huge front triangle and allows for maximum framebag space as well as easy fender mounting. The Sunliner can fit up to a 29x3.0" tire and has all of the mounting points for racks, fenders, and gear that you would expect for a bike designed from the ground up for off-road touring.
We've been riding our Sunliners in all sorts of configurations, drivetrains, bag and rack setups, loaded and unloaded. It's a very easy bike to recommend to anyone interested in a versatile and capable all-around bikepacking rig.
The Sunliner is built for:
- Riders who want to take on any trail and ride, loaded or unloaded
- Riders who want flat-bar control for off-road touring
Complete Bike Purchase Process
We build complete bikes in the order that build specs are finalized. Our standard build with the parts list as shown is $3975 USD, we use this as a starting point for your build, and since we custom assemble each bike from the frame up including hand building all of our wheels, there is a wide range of changes that can be made to our standard spec.
Once you place your complete bike order, we put your name on the frame/fork and reach out to start confirming the final spec for your bike. Once we have finalized the build spec, we send over an invoice for the final balance due if there are any upgrades over the standard spec. Once the final invoice is paid, your build sheet goes into our build queue and we begin ordering any necessary parts for your bike. Our goal is to have your bike completed and ready to ship within 4 weeks from the time you pay your final invoice, although there can sometimes be unforeseen delays if a component is out of stock from the manufacturer, etc.
We build your wheels, completely assemble your bike, test ride it multiple times and double check all adjustments before packing it for shipment. When you receive your bike, we recommend taking it to a professional mechanic for reassembly, it will be very straightforward for a shop to assemble.
Frame Specifications
| Sizes | Small - Medium - Large - Extra Large |
| Tubing | Heat Treated, size specific Cromoly tubing. Oversized triple and quad butted main triangle with integrated gussets |

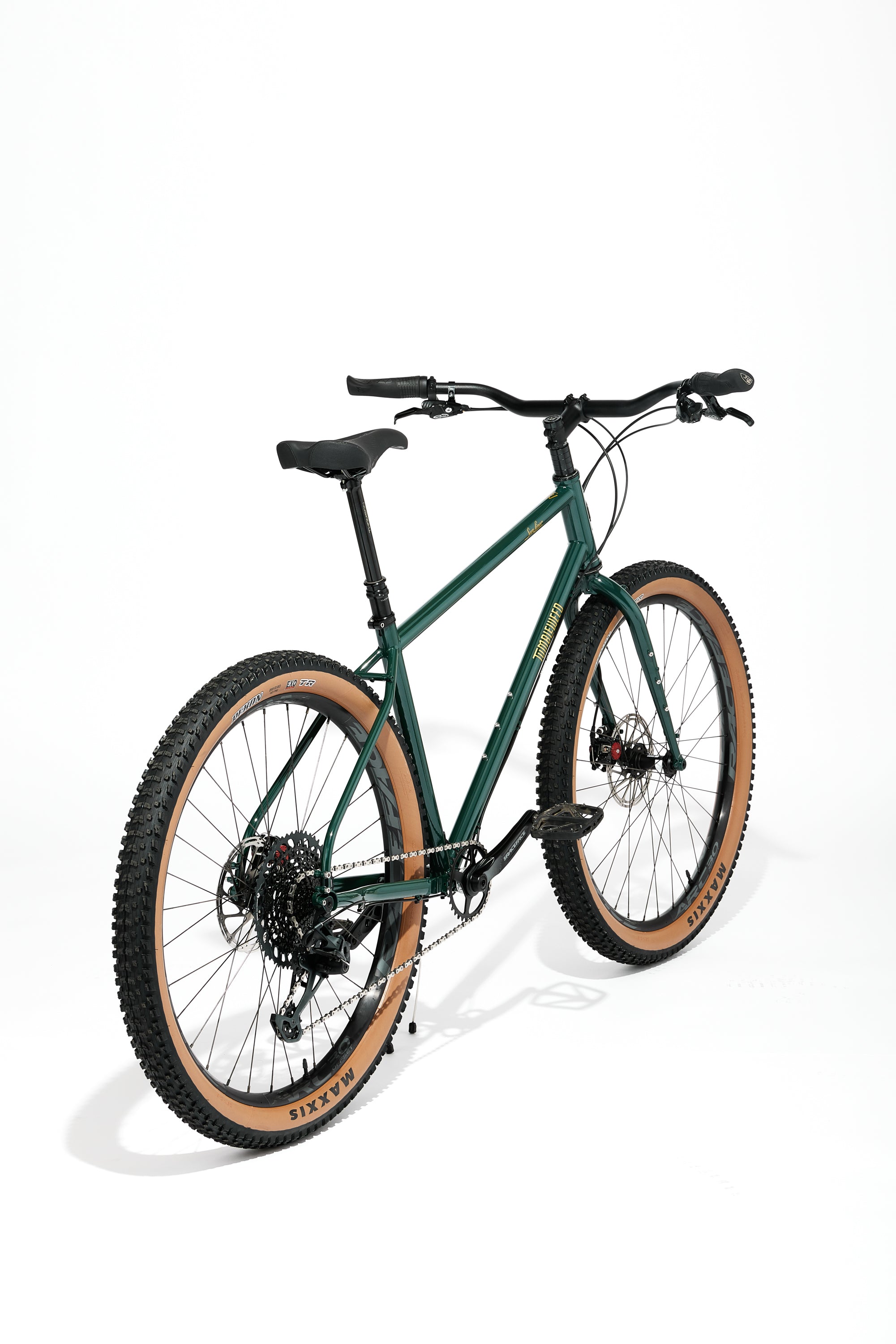

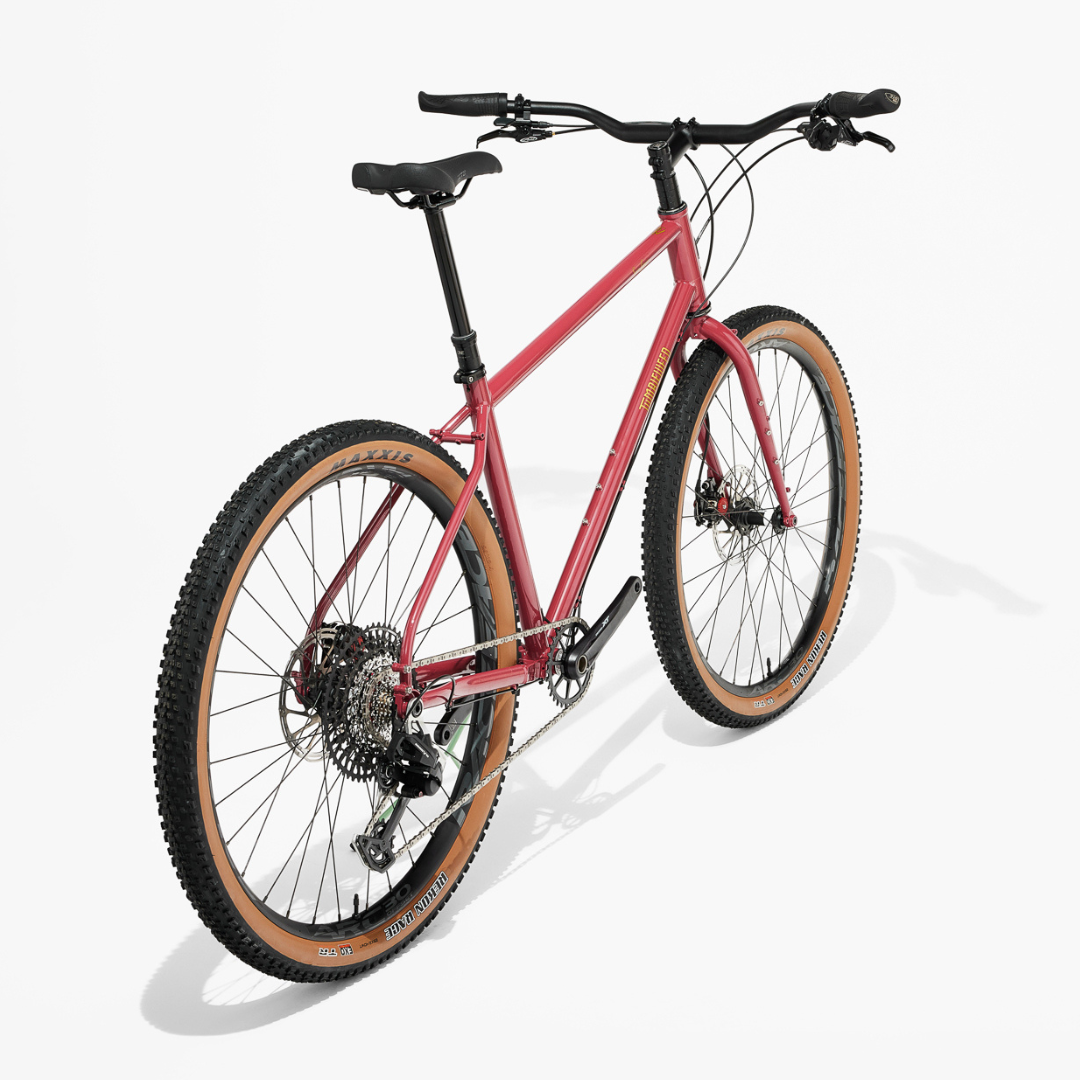

| Colors | Forest Green or Rhubarb (dark pink). Both with gold Tumbleweed graphics |
| Tire Clearance | Optimized for 29x2.6”, clearance for up to 29 x 3 (Tested with WTB Ranger tire on 40mm internal rim width) |
| Head Tube Diameter | 44mm I.D. for ZS44 upper, EC44 lower cups |
| Bottom Bracket | 73mm BSA threaded |
| Spacing | Boost 148mm x 12mm thru axle (included) |
| Seat Post Diameter | 31.6 |
| Seat Collar Diameter | 35mm (included) |
| Dropper routing | External routing on down tube with internal routed seat tube |
| Driveline | 1x drivetrain specific. Not designed to accommodate a front derailleur |
| Chainring Clearance | 38 tooth max |
| Brake Compatibility | 180mm or 160mm IS mount, front and rear with external cable routing |

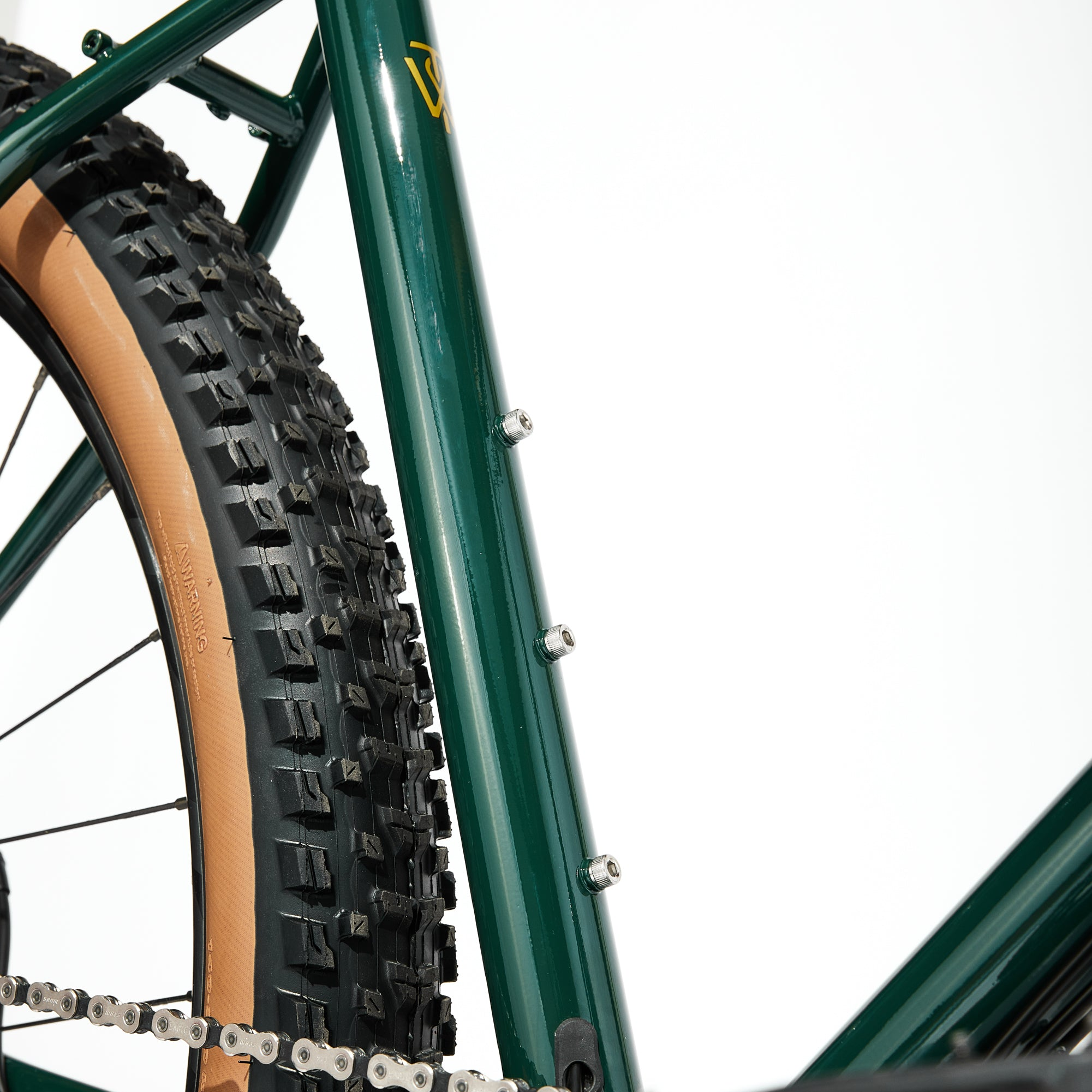

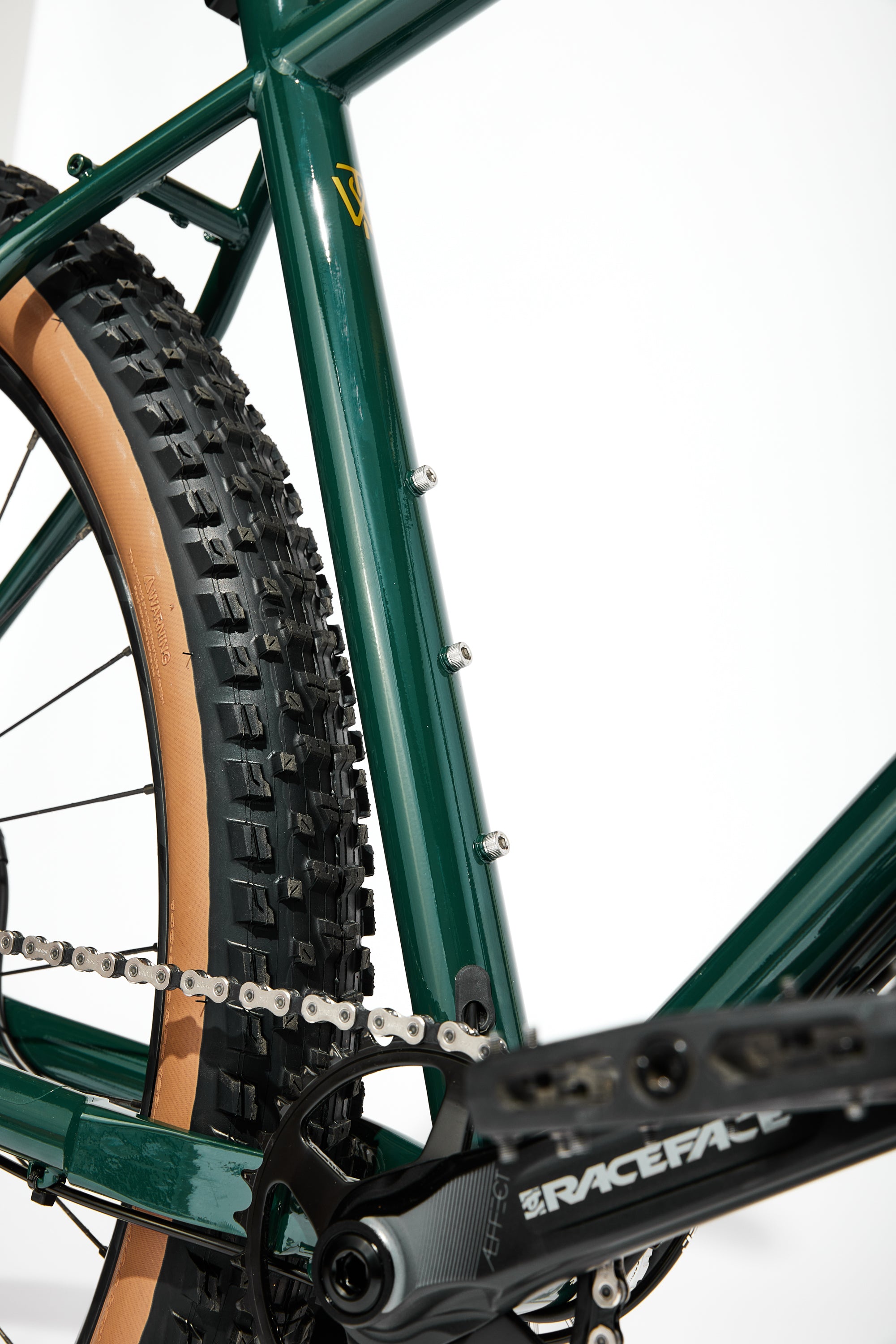

| H20 mounts | One set on seat tube, one 3 pack mount on top of downtube, one 3 pack mount under down tube (Small has 2 mounts on top of downtube) |
| Rack and Fender mounts |
| Tire Clearance | 29 x 3 (Tested with WTB Ranger tire on 40mm internal rim width) |
| Spacing | Boost mountain - 110x15mm thru axle (included) |
| 3 pack mounts angled rearward | |
| Low rider rack mounts | |
| Upper fork crown rack mounting points | |
| Center hole on fork crown | |
| Generator wiring port on lower right leg | |
| Rack & Fender mounts at dropouts | |
| 440mm Axle to Crown with 55mm offset |
| Sunliner Geometry | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Effective Top Tube Length | 600mm | 620mm | 640mm | 660mm |
| Seat Tube Length | 380mm | 430mm | 480mm | 545mm |
| Head Tube Angle | 69° | 69° | 69° | 69° |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Bottom Bracket Drop | 65mm | 65mm | 65mm | 65mm |
| Chainstay Length | 456mm | 456mm | 456mm | 456mm |
| Head Tube Length | 130mm | 150mm | 175mm | 210mm |
| Fork Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1131mm | 1153mm | 1175mm | 1197mm |
| Fork Offset | 55mm | 55mm | 55mm | 55mm |
| Stack | 590mm | 608mm | 632mm | 664mm |
| Reach | 420mm | 434mm | 447mm | 457mm |
| Standover Height at center of top tube with 29x2.6" tire | 765mm | 795mm | 835mm | 875mm |
| Recommended Rider Height | 5'2"-5'7" | 5'6"-5'10" | 5'10"-6'2" | 6'1"-6'7" |
| Recommended Rider Saddle Height | 63-69cm | 68-73cm | 74-81cm | 80-88cm |
Tumbleweed Sunliner Standard Build
(Parts subject to change based on availability)
| Part | Description | |
|---|---|---|
| Frame | Sunliner | British Racing Green/Rhubarb S/M/L/XL |
| Fork | Steel Unicrown | 110mm Thru Axle Unicrown |
| Headset | Cane Creek 40 | ZS upper, EC lower, 30mm Crown Race |
| Crankset | RaceFace Aeffect | Black, alloy |
| Chainring | RaceFace Aeffect, steel | 32t, black alloy |
| Bottom Bracket | RaceFace | BSA Threaded |
| Front Hub | DT Swiss 350 | Black, 110mm Thru Axle 32 hole |
| Rear Hub | DT Swiss 350 | Black, 148x12mm 32 hole, XD Freehub |
| Cassette | GX Eagle, Lunar | 10-52t |
| Shifter | SRAM GX Eagle | black |
| Rear Derailleur | GX Eagle, Lunar | black |
| Rims | RaceFace ARC30 | 29 x i30mm |
| Spokes | Sapim Race | Black 2.0/1.8 w/Brass nipples |
| Brake Levers | Avid FR5 | Black, alloy |
| Brake Calipers | Avid BB7 | Black |
| Cables and Housing | Jagwire Pro Compressionless | Stainless Cables, Black Housing |
| Disc Brake Rotor Adaptor | Promax/TRP | Black aluminum |
| Brake Rotors | SRAM Centerline | 180mm front and rear |
| Tires | Maxxis Rekon Race | 29 x 2.4 EXO 3C TR |
| Chain | SRAM GX Eagle | silver |
| Grips | SQLabs 710 | black |
| Stem | Zoom | Black 31.8mm 4 bolt |
| Handlebar | Tumbleweed Persuader | Black 20 or 30 degree |
| Seatpost | PNW Loam dropper | Black, travel length based on saddle height, frame size |
| Dropper trigger | PNW Range | Black |
| Saddle | WTB Pure Black | Steel Rails |
| Tubeless Parts | Tubeless Sealant, Valves and Tape | |
| Headset Spacers | Black, Aluminum |
FAQ
The Sunliner is optimized for a flat bar. We do not recommend putting bars onto our frames that do not account for the frame geometry, which in each case is optimized for a specific type of bar. If you prefer a drop bar, we recommend our Stargazer model.
We build complete bikes in the order that the build specs are finalized. Our standard build with the parts list as shown is $3,975 USD. We use this as a starting point for your build, and since we custom assemble each bike from the frame up, including hand-building all of our wheels, there is a wide range of changes you can make to our standard spec.
Once you place your order, we put your name on the frame/fork and reach out to start confirming the final spec for your bike. Once we have finalized the build spec, we send over an invoice for the final balance due if there are any upgrades from the standard spec.
Once the final invoice is paid, your build sheet goes into our build queue, and we begin ordering any necessary parts for your bike. Our goal is to have your bike completed and ready to ship within 4-6 weeks from the time you pay your final invoice. However, there can sometimes be unforeseen delays if a component is out of stock from the manufacturer, etc.
We build your wheels, completely assemble your bike, test ride it multiple times, and double-check all adjustments before packing it for shipment. When you receive your bike, we recommend taking it to a professional mechanic for reassembly. It will be very straightforward for a shop to assemble.
